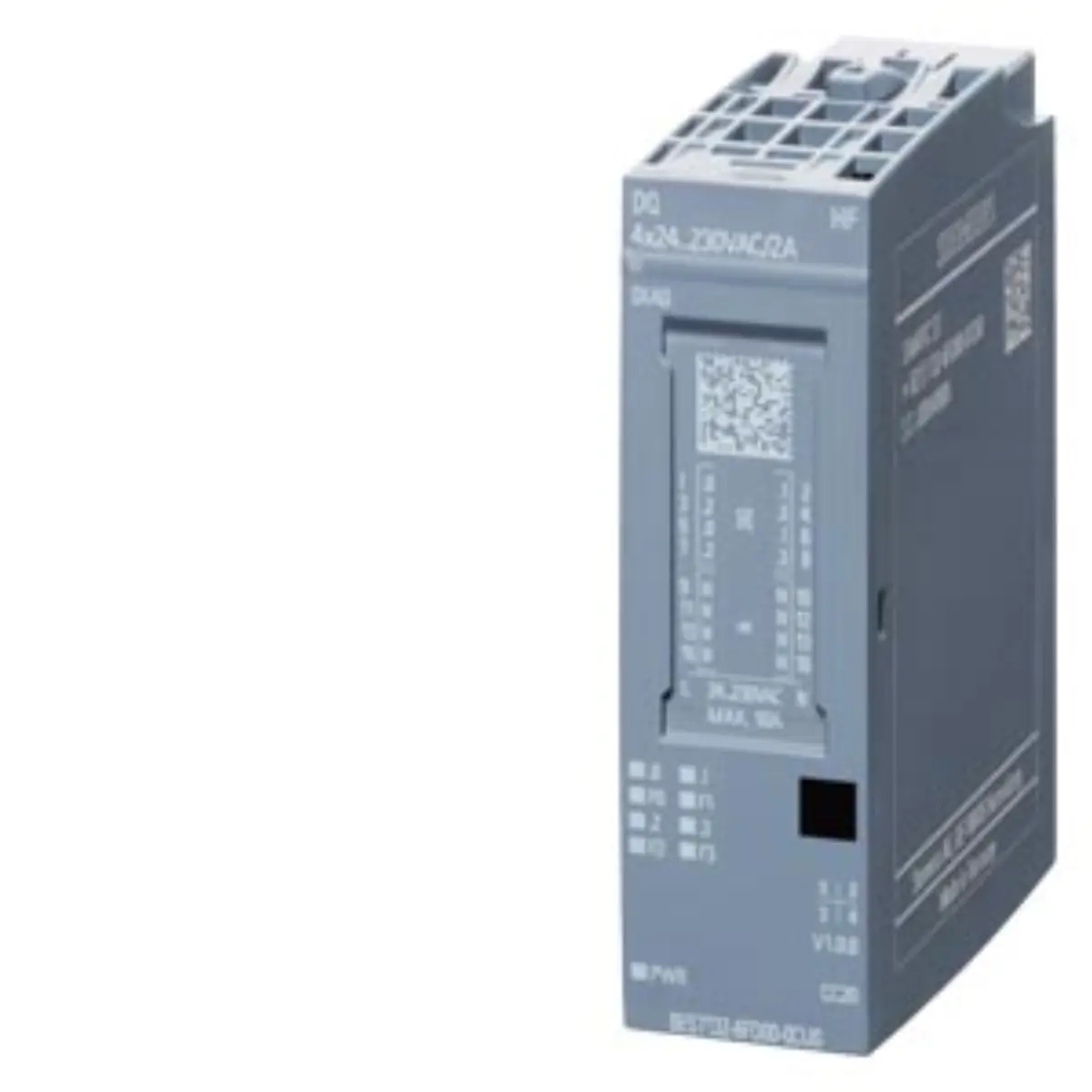

6AG2132-6FD00-4CU0 SIPLUS ET 200SP DQ 4x24 Module Details

Part number

6AG2132-6FD00-4CU0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP DQ 4x24

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.059 Kg

Source category

SIPLUS extreme RAIL digital outputs

• Operating temperature range spans from -40°C to +70°C for continuous performance in demanding environments. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.059 Kg unchanged while comparing project documents and product image evidence.
• Short-term overload tolerance allows operation up to +85°C for durations of ten minutes maximum.
• The module includes OT4 classification with ST1/2 support for robust thermal management during peak loads.
• Color code CC20 is assigned to assist in visual identification and systematic organization within rack installations.
• Physical dimensions measure 7.7 cm in width, 6.5 cm in depth, and 2.3 cm in height.
• Net weight is recorded at 0.059 Kg, ensuring minimal load impact on supporting rail structures.

• Base model reference links to 6ES7132-6FD00-0CU0 with specific modifications for extreme condition applications.
• SIPLUS branding indicates specialized engineering for environments exceeding standard industrial automation module tolerances.
• ET 200SP designation identifies the distributed I/O system platform for scalable automation solutions.
• DQ 4x24 suffix specifies four digital output channels rated for 24V or related voltage levels.

Parameters are factual source fields retained for model review.

• Conformal coating application provides additional insulation and protection against moisture, dust, and corrosive agents.
• Digital output functionality supports direct control of actuators and signaling devices in automated processes.
• Channel diagnostics enable monitoring of output states to facilitate troubleshooting and maintenance planning activities.
• Power control mode offers alternative operation strategies for managing energy distribution to connected load devices.
• Rail-based mounting ensures secure installation within standardized automation cabinet frameworks and track systems.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components.
• Terminal block arrangement must align with the four-channel digital output specification for proper wiring.
• Labeling clarity is essential for verifying the part number and color code during physical checks.
• Overall housing integrity should be assessed to ensure no damage occurred during transport or storage.

• Verify that the -40°C to +70°C operating range meets the specific environmental requirements of your site.
• Confirm that the 230VAC TX rail configuration matches the existing power supply infrastructure in place.
• Review the channel diagnostics capabilities to ensure they align with your maintenance and monitoring protocols.
• Check the physical dimensions and weight constraints to validate application context with your current rack setup.

• Lifecycle status is listed as Active Product, indicating ongoing manufacturing and support review details.
• Product class B notes indicate review restrictions requiring contact with designated Siemens review contacts.
• Source parameter review suggests verifying all technical specifications against your specific project documentation.
• Final model identification should match the submitted part number 6AG2132-6FD00-4CU0 exactly for accuracy.
