6AG2132-6BH01-4BA0 SIPLUS ET 200SP Digital Output Module Details

Part number

6AG2132-6BH01-4BA0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS ET 200SP DQ 16x24VDC/ 0

Lifecycle

Active Product

Dimensions

7.6 x 6.5 x 2.3 cm

Net weight

0.036 Kg

Source category

SIPLUS extreme RAIL digital outputs

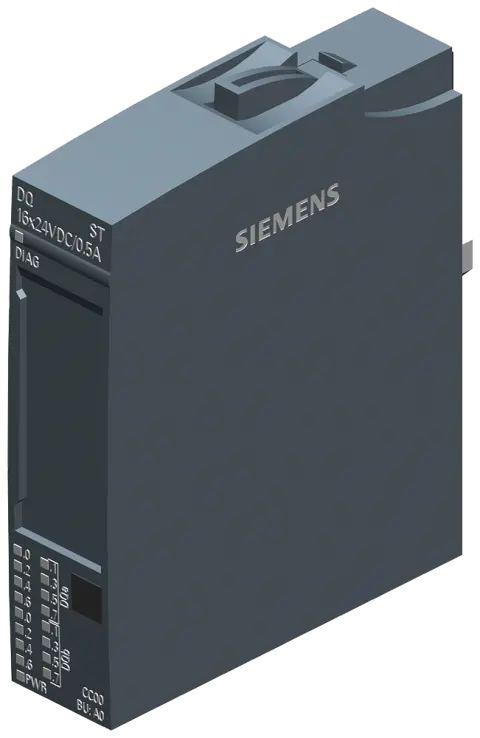

• Module type is SIPLUS ET 200SP DQ 16x24VDC/0 with 16 digital outputs. Keep dimensions 7.6 x 6.5 x 2.3 cm and net weight 0.036 Kg unchanged while comparing project documents and product image evidence.
• Output current capacity is recorded at 5 Amperes per channel for load connection.
• Color code designation is CC00, indicating specific visual identification for installation teams.
• Source output configuration uses PNP logic for switching positive potential to loads.
• Diagnostics cover short circuits to L+, wire breaks, and supply voltage monitoring.
• Physical dimensions are listed as 7.6 x 6.5 x 2.3 cm for rack mounting.

• Base hardware reference is derived from the 6ES7132-6BH01-0BA0 standard module design. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL digital outputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS branding indicates specialized ruggedization for extreme environmental operating conditions.
• Part number suffix 4BA0 distinguishes this variant from standard industrial automation components.
• Lifecycle status is recorded as Active Product for ongoing engineering and design phases.

Parameters are factual source fields retained for model review.

• Operating temperature range extends down to -40°C for cold climate applications. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2132-6BH01-4BA0 record before publication.
• Maximum ambient temperature reaches +70°C with OT4 classification for thermal stress.
• Short duration tolerance allows +85°C for up to ten minutes during faults.
• Net weight is documented at 0.036 Kg for logistics and mounting calculations.
• Conformal coating provides additional insulation resistance against conductive contaminants in air.

• Visual inspection should confirm the presence of conformal coating on internal PCBs. Review Siemens 6AG2132-6BH01-4BA0 as SIPLUS ET 200SP DQ 16x24VDC/ 0 with source category SIPLUS extreme RAIL digital outputs, recorded lifecycle Active Product, and submitted model identity.
• Terminal block arrangement matches the 16-channel digital output specification layout.
• Labeling must clearly display the full Siemens part number for verification purposes.
• Housing integrity checks ensure no physical damage to the rail-mounting clips.

• Verify project environmental requirements match the -40 to +70°C operating range. Keep dimensions 7.6 x 6.5 x 2.3 cm and net weight 0.036 Kg unchanged while comparing project documents and product image evidence.
• Confirm load type application context with PNP sourcing output configuration parameters.
• Check diagnostic needs for short circuit and wire break monitoring capabilities.
• Ensure mounting rail specifications align with the ET 200SP system format.

• Cross-reference the part number with existing system documentation for accuracy.
• Validate that the source category path matches your internal classification standards.
• Review technical summary points against specific application load current requirements.
• Confirm diagnostic features meet safety and maintenance protocol documentation needs.
