Siemens 6AG2132-6BD20-4BA0 Digital Output Module Details

Part number

6AG2132-6BD20-4BA0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Phase Out Announce

Dimensions

6.5 x 7.7 x 2.3 cm

Net weight

0.04 Kg

Source category

SIPLUS extreme RAIL digital outputs

• Base hardware reference is the 6ES7132-6BD20-0BA0 module structure for functional comparison. Keep dimensions 6.5 x 7.7 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Output configuration includes four channels rated at 24VDC with a current capacity of 2A per channel.
• Physical dimensions are recorded as 6.5 cm width by 7.7 cm height by 2.3 cm depth.
• Net weight is listed at 0.04 kg, indicating a lightweight construction for rail mounting systems.
• Channel diagnostics are integrated to monitor output status and provide feedback on circuit integrity.
• Color code CC02 is assigned to this specific variant for visual identification during installation procedures.

• Part number 6AG2132-6BD20-4BA0 identifies the SIPLUS extreme RAIL digital output variant. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL digital outputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Lifecycle status is currently noted as Phase Out Announce for planning purposes.
• Product class B indicates review restrictions requiring contact with designated Siemens support channels.
• Module type is classified under digital outputs within the broader I/O module category.

Parameters are factual source fields retained for model review.

• Operating temperature range extends from -40°C up to +70°C for standard operation. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2132-6BD20-4BA0 record before publication.
• Short-term thermal tolerance allows OT4 conditions with ST1/2 rating for 10 minutes.
• Maximum surface temperature reaches +85°C during specific overload or fault condition scenarios.
• Conformal coating application ensures durability in environments with high humidity or corrosive agents.
• Rail-based mounting system facilitates secure installation within standard automation cabinet configurations.

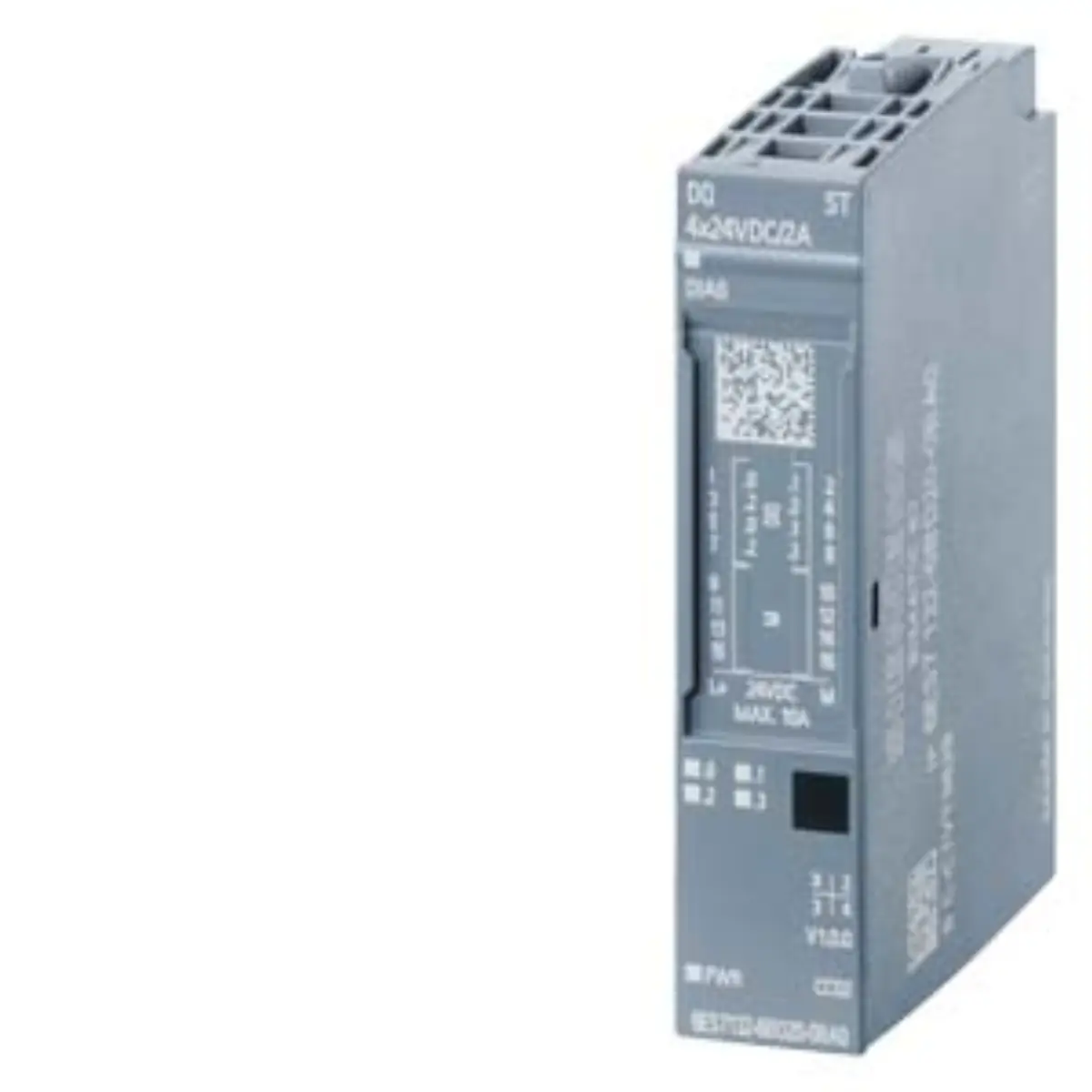

• Front panel displays channel indicators corresponding to the four digital output lines. Review Siemens 6AG2132-6BD20-4BA0 as I/O Modules with source category SIPLUS extreme RAIL digital outputs, recorded lifecycle Phase Out Announce, and submitted model identity.
• Labeling includes the full part number for verification against project documentation requirements.
• Connector area shows the interface points for wiring connections to field devices.
• Overall housing reflects the compact form factor consistent with ET 200SP series design.

• Verify the exact part number 6AG2132-6BD20-4BA0 matches your system requirements precisely. Keep dimensions 6.5 x 7.7 x 2.3 cm and net weight 0.04 Kg unchanged while comparing project documents and product image evidence.
• Confirm temperature ratings align with your specific operational environment conditions.
• Check lifecycle status implications for long-term maintenance and support planning needs.
• Prepare technical specifications sheet for submission alongside your formal inquiry request.

• Ensure all technical parameters are reviewed before initiating any inquiry preparation discussions.
• Lifecycle status may impact future supply chain planning for your organization.
• review restrictions apply; consult documented guidelines for disposal or exchange procedures.
• Document all findings for internal engineering review and approval processes.
