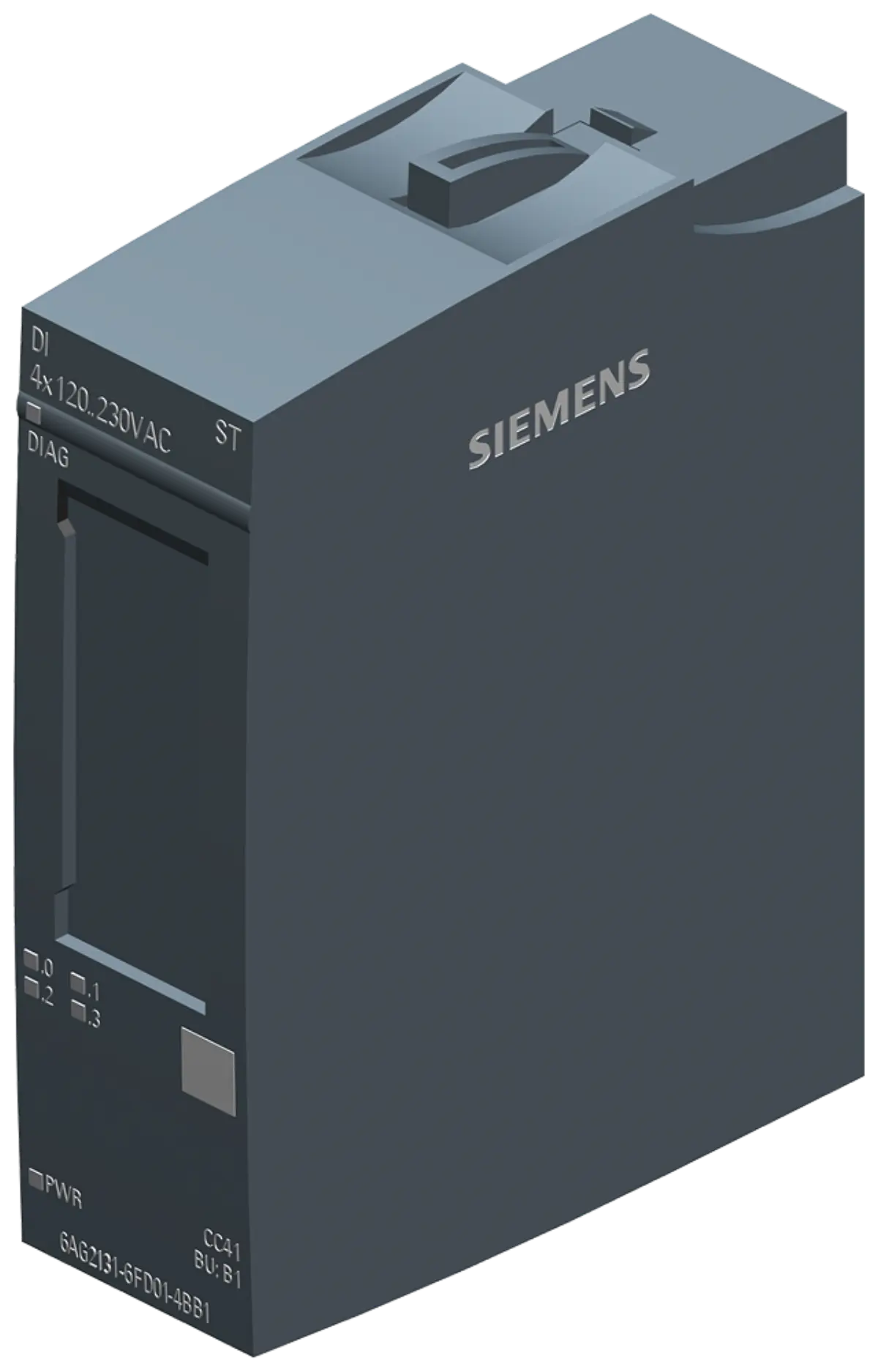

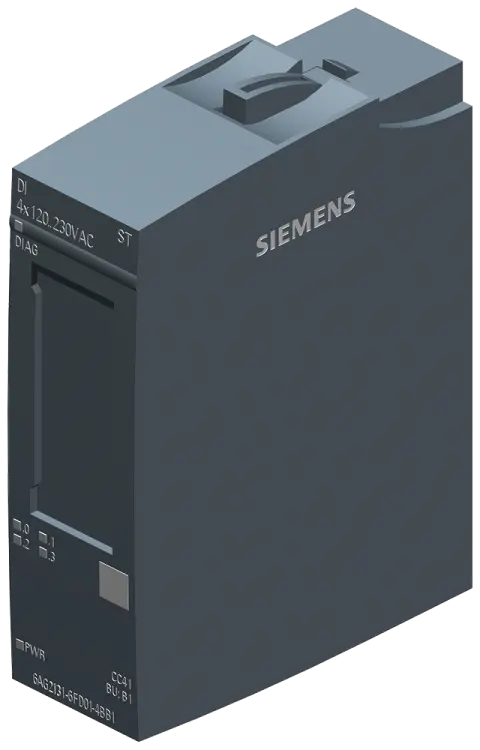

6AG2131-6FD01-4BB1 SIPLUS ET 200SP Digital Input Module

Part number

6AG2131-6FD01-4BB1

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

7.7 x 6.5 x 2.3 cm

Net weight

0.046 Kg

Source category

SIPLUS extreme RAIL digital inputs

• The module operates as a digital input device with four channels for AC voltage signals. Keep dimensions 7.7 x 6.5 x 2.3 cm and net weight 0.046 Kg unchanged while comparing project documents and product image evidence.
• It accepts 120V or 230V AC input signals for standard industrial control circuit integration.
• Conformal coating is applied to the internal components to protect against moisture and contaminants.
• The operating temperature range extends from minus forty degrees Celsius to plus seventy degrees Celsius.
• Short-term overload tolerance allows operation up to eighty-five degrees Celsius for ten-minute periods.
• Module diagnostics follow IEC 61131 standards with input type three classification for signal verification.

• The base model reference is 6ES7131-6FD01-0BB1 for architectural comparison during technical reviews. Use the source path Automation technology / SIPLUS I/O modules / SIPLUS extreme RAIL digital inputs to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The SIPLUS extreme designation indicates enhanced environmental resistance compared to standard ET 200SP units.
• TX rail mounting configuration is utilized for secure installation within distributed I/O stations.
• Color code CC41 is assigned to this specific module variant for visual identification purposes.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as seven point seven centimeters in width for space planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG2131-6FD01-4BB1 record before publication.
• Depth measurement is listed at six point five centimeters for rack layout calculations.
• Height specification stands at two point three centimeters for vertical clearance assessment requirements.
• Net weight is documented at zero point zero four six kilograms for shipping estimates.
• Lifecycle status is classified as an active product for ongoing project specification validity.

• Front view images typically display the terminal block connections and status LED indicators clearly.
• Side profile shots help verify the compact form factor relative to other ET 200SP modules.
• Label close-ups confirm the part number printing and Siemens branding authenticity for verification.
• Mounting rail interface visuals demonstrate the TX rail attachment mechanism for installation guidance.

• Verify the required input voltage levels match the twelve hundred or two hundred thirty volt AC specifications.
• Confirm that the ambient temperature conditions fall within the forty to seventy degree Celsius range.
• Check if the short-term thermal overload capability meets specific process peak temperature requirements.
• Ensure the I/O station architecture supports the TX rail mounting style for this module type.

• Product class B indicates restricted review notes requiring direct contact with Siemens representatives.
• Technical parameters should be cross-referenced with documented Siemens documentation before final engineering approval.
• Environmental ratings must align with the specific site conditions of the intended installation location.
• Diagnostics functionality relies on the IEC 61131 input type three standard for accuracy.
