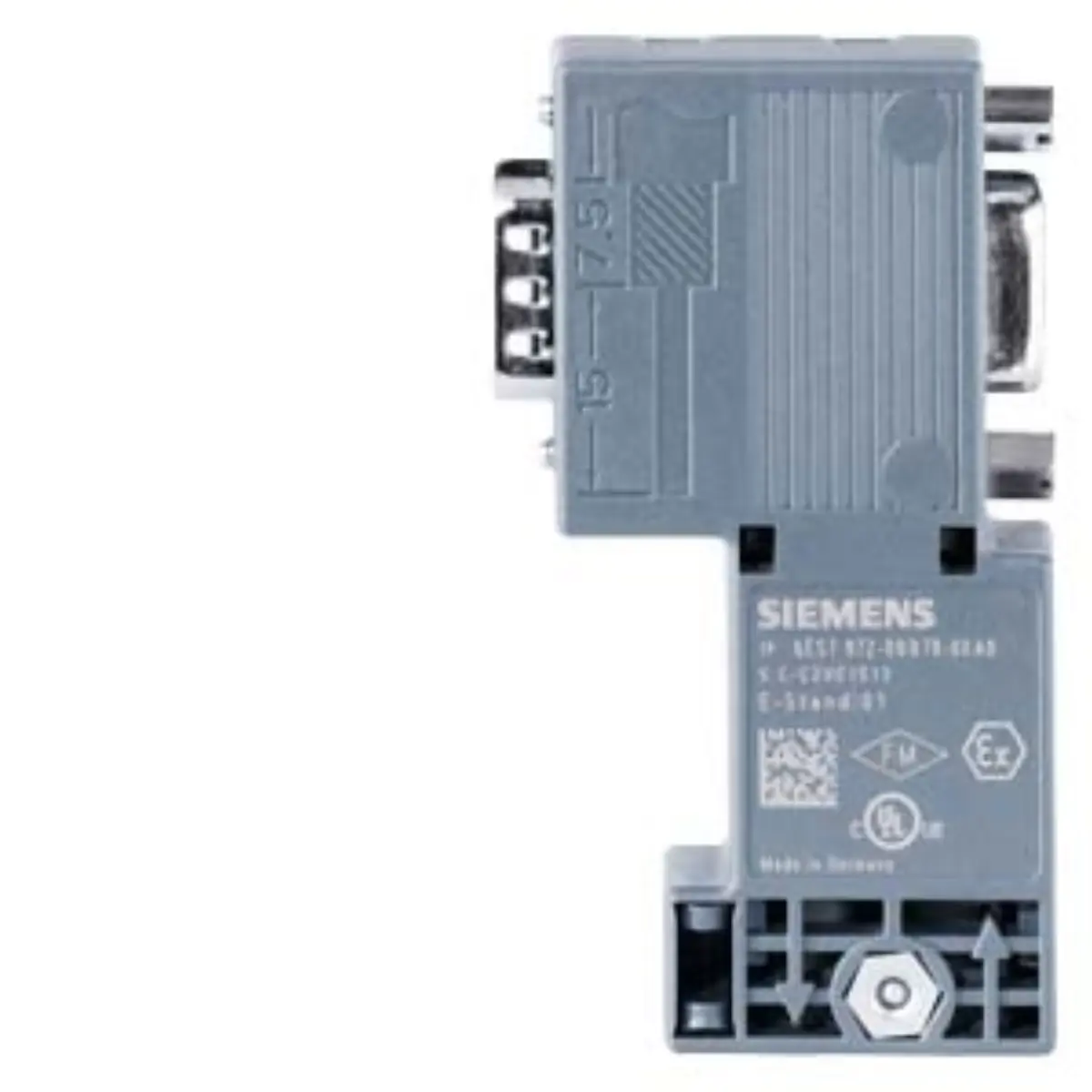

Siemens 6AG1972-0BB70-7XA0 Industrial Cable Component

Part number

6AG1972-0BB70-7XA0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Active Product

Dimensions

7.9 x 6.7 x 3.00 cm

Net weight

0.053 Kg

• Based on the 6ES7972-0BB70-0XA0 foundation, this model incorporates SIPLUS enhancements for extreme environments. Keep dimensions 7.9 x 6.7 x 3.00 cm and net weight 0.053 Kg unchanged while comparing project documents and product image evidence.
• The connector supports PROFIBUS communication speeds up to 12 Mbps for reliable data transmission.
• A 90-degree cable outlet configuration allows for compact installation in constrained panel spaces.
• Insulation displacement FastConnect technology ensures secure electrical connections without additional tools.
• Operating temperature range is specified from -40°C to +70°C for broad environmental adaptability.
• Conformal coating provides additional protection against moisture, dust, and corrosive industrial atmospheres.

• The part number 6AG1972-0BB70-7XA0 identifies this specific variant within the Siemens portfolio. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is categorized under Cables, Connectors & Accessories for precise inventory and reference tracking.
• The lifecycle status is recorded as Active Product, indicating current manufacturing or support.
• This model is distinct from standard versions due to its specialized SIPLUS environmental rating.

Parameters are factual source fields retained for model review.

• Physical dimensions are documented as 7.9 cm length, 6.7 cm width, and 3.00 cm height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1972-0BB70-7XA0 record before publication.
• Net weight is listed at 0.053 Kg, facilitating logistical planning for project installations.
• The connection plug type is designed specifically for PROFIBUS network infrastructure applications.
• Temperature ratings cover a wide spectrum from -40°C minimum to +70°C maximum operation.
• The PG socket feature allows for standardized cable entry and secure mechanical attachment.

• Visual documentation should highlight the 90-degree orientation of the cable outlet port. Review Siemens 6AG1972-0BB70-7XA0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Active Product, and submitted model identity.
• The conformal coating texture may be visible, indicating the protective layer applied to the housing.
• FastConnect terminals are internal but the external housing shows the insulation displacement entry point.
• Labeling on the unit should clearly display the full part number for verification purposes.

• Review the submitted model details to ensure alignment with your specific project requirements.
• Verify that the operating temperature range meets the environmental conditions of your installation site.
• Confirm that the 12 Mbps speed capability is sufficient for your network topology needs.
• Check physical space constraints to ensure the 90-degree outlet fits your panel layout.

• All technical parameters are sourced directly from the manufacturer's published product documentation.
• Dimensions and weight figures are recorded as stated in the documented product specifications.
• Operational limits are defined by the manufacturer for safe and effective usage conditions.
• Inquiries should focus on technical validation rather than commercial terms or supply logistics.
