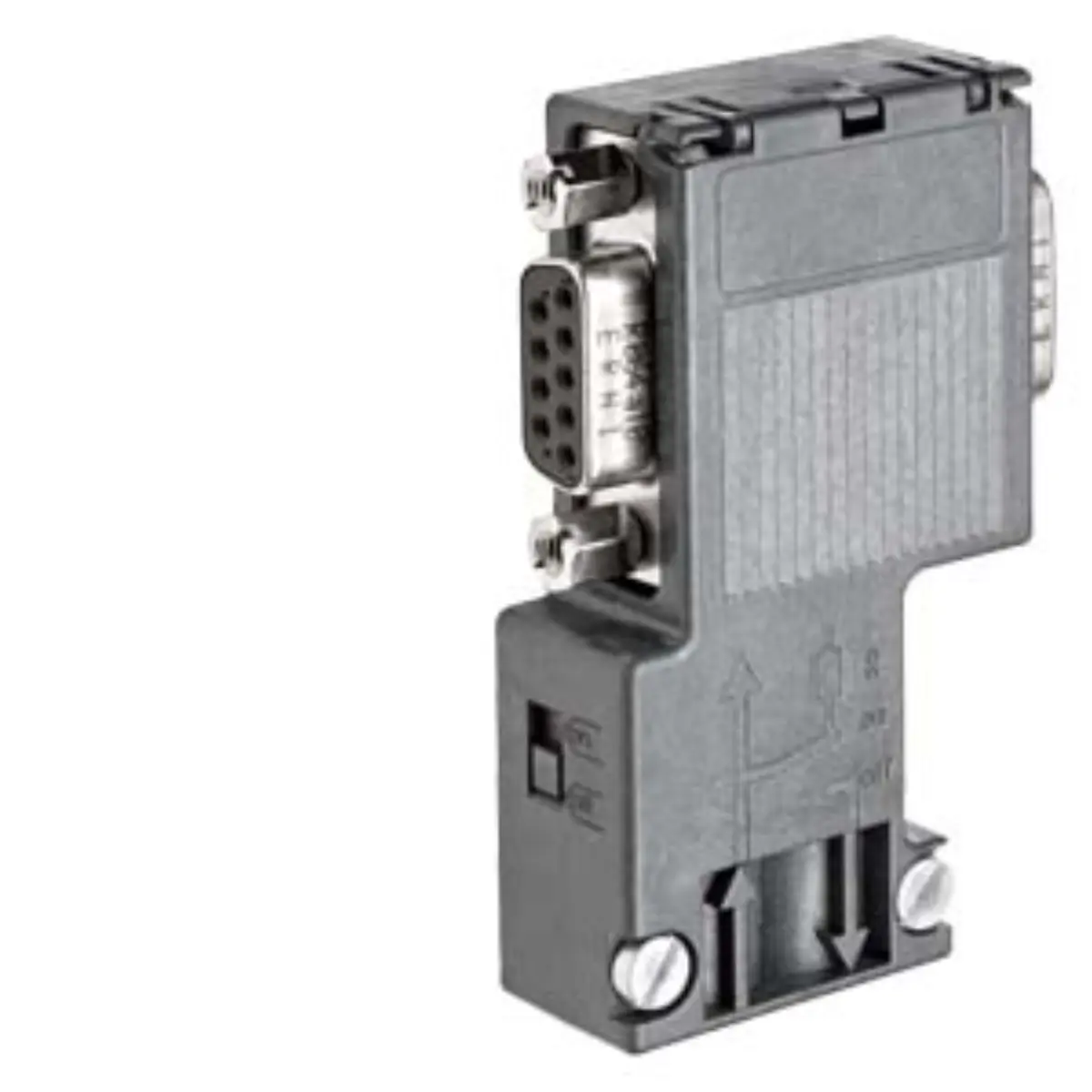

6AG1972-0BB12-2XA0 RS485 Bus Connector Details

Part number

6AG1972-0BB12-2XA0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

RS485 bus connector

Lifecycle

Active Product

Dimensions

7.7 x 6.8 x 3.00 cm

Net weight

0.061 Kg

Source category

RS485 bus connector

• The device supports PROFIBUS communication protocols with data rates up to 12 Mbps. Keep dimensions 7.7 x 6.8 x 3.00 cm and net weight 0.061 Kg unchanged while comparing project documents and product image evidence.
• It incorporates a terminating resistor equipped with an isolating function for signal integrity.
• The physical form factor includes a PG socket for secure cable attachment management.
• A 90-degree cable outlet configuration allows for flexible spatial installation arrangements.
• Operating temperature ranges are specified from -25°C to +70°C for reliability.
• Conformal coating is applied to protect internal components against harsh environmental conditions.

• The part number 6AG1972-0BB12-2XA0 identifies this specific SIPLUS DP variant. Use the source path Automation technology / Electrical networks (RS 485) / RS485 bus connector to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base 6ES7972-0BB12-0XA0 reference design.
• The suffix indicates enhanced environmental protection through the application of protective coatings.
• Classification as an RS485 bus connector aligns with standard industrial networking categories.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 7.7 cm in length, 6.8 cm in width, and 3.00 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1972-0BB12-2XA0 record before publication.
• The net weight of the unit is listed at 0.061 Kg for logistical planning.
• Connection type utilizes a PG socket interface for standardized cable termination procedures.
• Signal transmission capability is maintained up to 12 Mbps for high-speed data exchange.
• Environmental rating covers a wide temperature spectrum from -25°C to +70°C.

• Visual inspection should confirm the presence of the 90-degree cable outlet feature. Review Siemens 6AG1972-0BB12-2XA0 as RS485 bus connector with source category RS485 bus connector, recorded lifecycle Active Product, and submitted model identity.
• Check for markings indicating the SIPLUS branding and specific part number details.
• Verify the condition of the PG socket for proper cable insertion alignment.
• Ensure the housing shows no signs of damage to the conformal coating layer.

• Review the submitted model number to ensure it matches your project requirements. Keep dimensions 7.7 x 6.8 x 3.00 cm and net weight 0.061 Kg unchanged while comparing project documents and product image evidence.
• Confirm the operating temperature range fits within your specific environmental constraints.
• Check the dimensional specifications against recorded space in your control cabinet layout.
• Verify the network speed requirements align with the 12 Mbps capability of this unit.

• All technical data is sourced directly from the manufacturer's published specifications.
• Users should verify all parameters against their specific application needs before proceeding.
• This listing serves as a reference point for technical documentation and inquiry.
• Further details may be obtained by submitting a formal request for information.
