6AG1688-3AF37-2AX0 SIPLUS HMI KP8F PN Industrial Panel

Part number

6AG1688-3AF37-2AX0

Brand

Siemens

Category

HMI Panels

Product type

SIPLUS HMI KP8F PN based on 6AV3688-3AF37-0AX0 with conformal coating, -20

Lifecycle

Active Product

Dimensions

18.00 x 10.5 x 6.2 cm

Net weight

0.368 Kg

Source category

SIPLUS HMI KP8/KP8F/KP32F

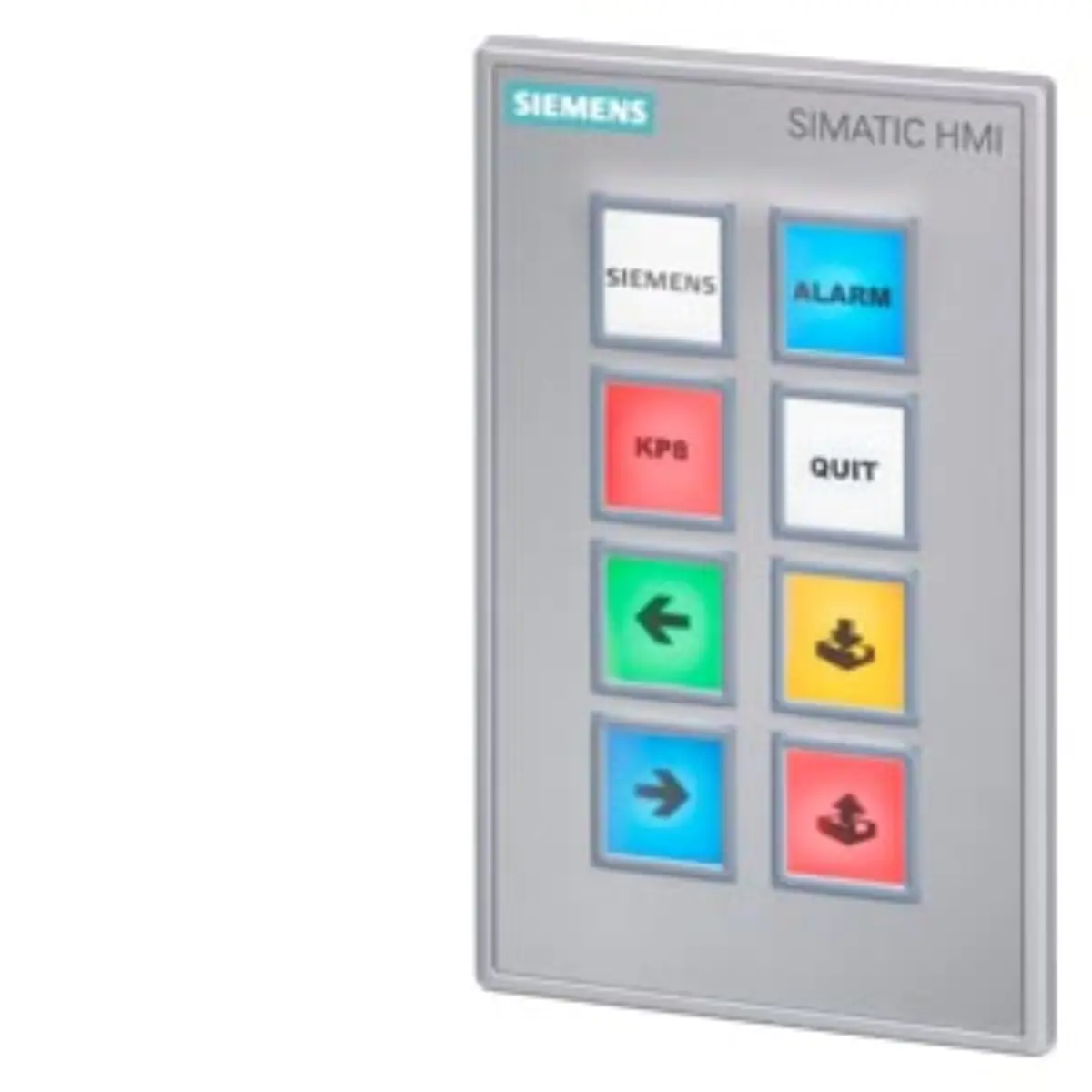

• The device features eight short-stroke switches equipped with multi-colored LEDs for clear visual feedback during operation. Keep dimensions 18.00 x 10.5 x 6.2 cm and net weight 0.368 Kg unchanged while comparing project documents and product image evidence.
• PROFINET interfaces support PROFIsafe functionality, enabling safe communication protocols essential for complex industrial automation tasks.
• Input and output configurations include eight digital inputs and outputs alongside two dedicated safety digital input pins.
• Power supply requirements specify a 24 V DC connection that can be looped through for simplified wiring setups.
• Physical dimensions are recorded as 18.00 x 10.5 x 6.2 cm, providing a compact footprint for control cabinets.
• Net weight is listed at 0.368 Kg, contributing to manageable installation procedures without excessive structural load.

• The part number 6AG1688-3AF37-2AX0 identifies this specific SIPLUS variant with enhanced environmental protection features.
• Normalization removes hyphens to create 6AG16883AF372AX0 for consistent database indexing and search parameter matching.
• Lifecycle status is currently active, indicating ongoing production and support within the Siemens product portfolio.
• Product class B indicates restricted review notes, requiring direct contact with designated Siemens review contacts for handling.

Parameters are factual source fields retained for model review.

• STEP 7 V5.5 or higher is required to parameterize the loop-through power supply functionality correctly.
• Conformal coating application is a key differentiator, ensuring longevity in high-humidity or chemically aggressive settings.
• PROFIsafe integration allows for safety-related communication over standard PROFINET networks without additional cabling.
• Temperature range expansion from -20°C to +55°C accommodates outdoor or unheated industrial enclosure installations.

• Visual inspection should confirm the presence of eight distinct short-stroke switches on the front panel surface.
• LED indicators must be verified for correct color coding to ensure proper status interpretation during testing.
• Connector ports for PROFINET and power supply should be checked for physical integrity before submission.
• Labeling on the rear or side must clearly display the full part number for accurate identification.

• Verify that your project environment falls within the specified -20 to +55 degrees Celsius operating range.
• Confirm that STEP 7 V5.5 software is installed for necessary configuration and parameterization tasks.
• Assess the need for PROFIsafe functionality to determine if this safety-enabled model meets your requirements.
• Prepare detailed project documents specifying environmental conditions to justify the selection of the SIPLUS variant.

• Ensure all technical parameters align with your facility's specific environmental and electrical standards.
• Cross-reference the normalized part number with internal inventory systems to avoid duplicate or incorrect entries.
• Document any special handling requirements due to the restricted review note associated with product class B.
• Submit inquiries with complete project context to facilitate accurate technical assessment and response generation.
