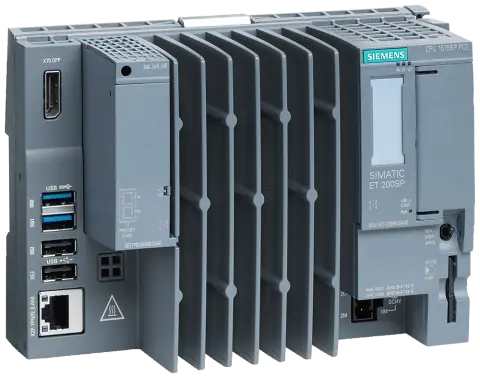

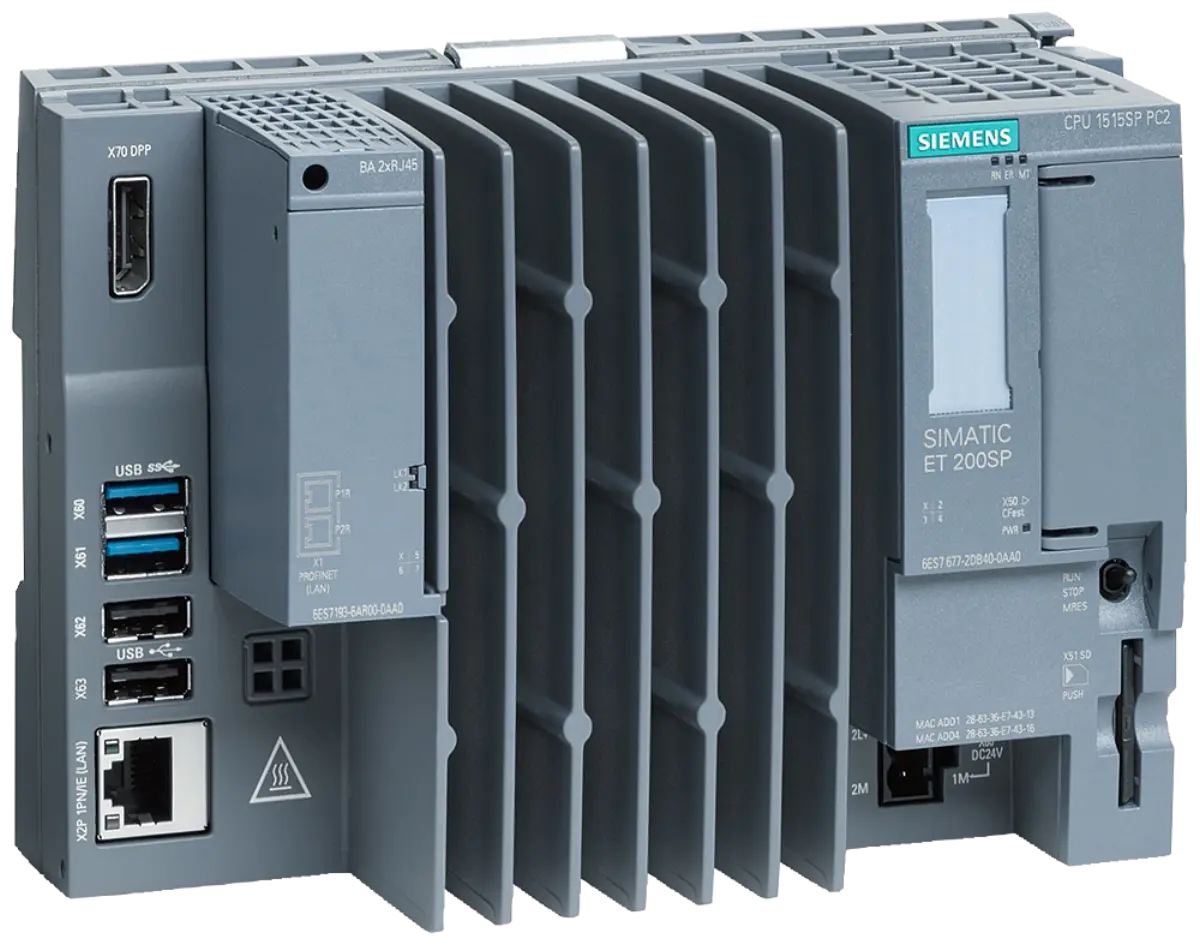

6AG1677-2DB42-2GB0 Industrial Automation Component Details

Part number

6AG1677-2DB42-2GB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Discont.

Dimensions

18.9 x 14.2 x 9.2 cm

Net weight

0.83 Kg

• Operating temperature range spans from -40°C to +60°C for robust performance in harsh industrial environments. Keep dimensions 18.9 x 14.2 x 9.2 cm and net weight 0.83 Kg unchanged while comparing project documents and product image evidence.
• Memory configuration includes 8 GB of RAM to support complex control tasks and data processing requirements efficiently.
• Storage utilizes a 128 GB CFast card running Windows 10 IoT Enterprise 64-bit operating system software.
• The S7-1500 Software Controller CPU 1505SP is preinstalled to enable advanced automation logic execution capabilities.
• Connectivity features one Ethernet port supporting speeds up to 10/100/1000 Mbps for network integration.
• Physical dimensions measure 18.9 x 14.2 x 9.2 cm with a net weight of 0.83 Kg for mounting.

• Part number 6AG1677-2DB42-2GB0 identifies the specific variant with extended temperature and memory specifications. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Lifecycle status is recorded as Production Discontinued, indicating limited future manufacturing review details.
• Product class B designation suggests review restrictions requiring direct contact with designated Siemens representatives.
• Base model reference 6ES7677-2DB42-0GB0 serves as the foundational hardware platform for this specialized unit.

Parameters are factual source fields retained for model review.

• Interface slots include one CFast slot and one SD/MMC slot for removable storage media access. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1677-2DB42-2GB0 record before publication.
• USB connectivity provides two USB 3.0 ports and two USB 2.0 ports for peripheral attachment.
• A DisplayPort interface is included for direct visual output connection to monitoring displays or screens.
• Documentation is supplied on a USB flash drive along with a separate restore USB flash drive.
• Bus adapter connection supports ET 200SP BusAdapter PROFINET for distributed I/O system integration.

• Visual inspection should confirm the presence of conformal coating on internal circuit board components. Review Siemens 6AG1677-2DB42-2GB0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Prod. Discont., and submitted model identity.
• Label verification must match the part number 6AG1677-2DB42-2GB0 printed clearly on the device housing.
• Port arrangement should align with the specified layout including Ethernet, USB, and DisplayPort connections.
• Physical condition assessment should note any signs of wear or damage to the casing structure.

• Review project requirements against the specified temperature range and memory capacity before submission.
• Verify interface needs to ensure application context with existing PROFINET and USB peripheral configurations.
• Consider the discontinued lifecycle status when planning long-term maintenance and support strategies.
• Prepare technical questions regarding the review restricted product class B handling procedures for clarity.

• Confirm all technical specifications meet the operational demands of the intended industrial application environment.
• Assess the implications of the production discontinued status on future supply chain logistics.
• Ensure proper handling protocols are followed due to the review restricted classification of the item.
• Document all inquiry details accurately to facilitate efficient processing by the technical support team.
