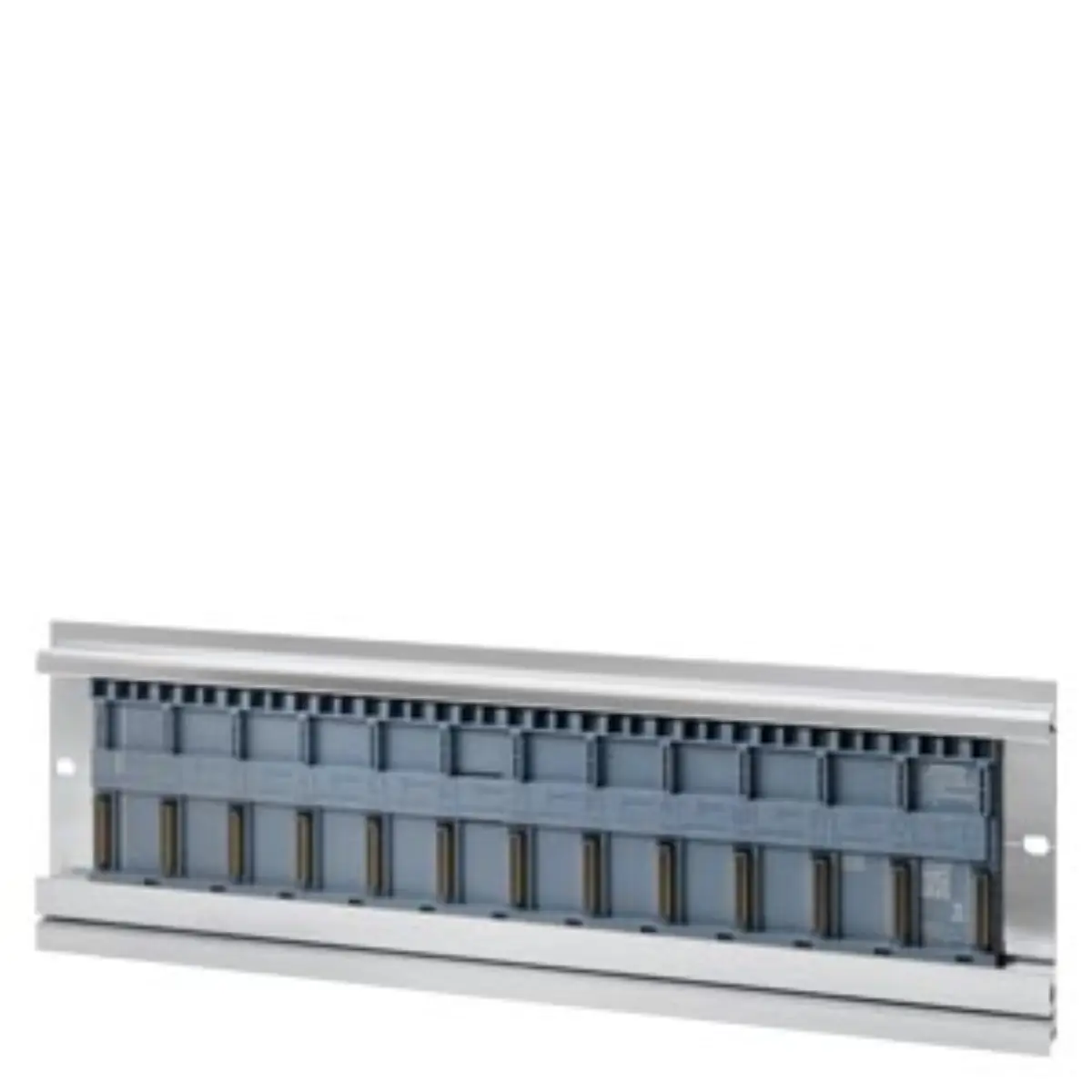

6AG1590-0BL00-7AA0 SIPLUS S7-1500 Active Backplane Bus Module

Part number

6AG1590-0BL00-7AA0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS S7-1500 act

Lifecycle

Active Product

Dimensions

45.4 x 11.6 x 3.4 cm

Net weight

0.352 Kg

Source category

SIPLUS extreme active backplane bus

• Physical dimensions are recorded as 45.4 centimeters in length, 11.6 centimeters in width, and 3.4 centimeters in height for spatial planning.
• The net weight of the unit is listed at 0.352 kilograms, which assists in logistical handling and mounting structure calculations.
• The product lifecycle status is currently designated as an Active Product, indicating ongoing support and documentation review details for engineering teams.
• Conformal coating is applied to the circuitry to protect against moisture, dust, and corrosive agents found in severe environmental conditions.
• Operating temperature range extends from negative forty degrees Celsius up to positive seventy degrees Celsius for reliable performance.
• The system supports hot-swapping of S7-1500 I/O modules to maintain operational continuity without powering down the entire rack.

• Base model reference is identified as 6ES7590-0BL00-0AA0, with the SIPLUS variant adding specific environmental protections.
• Product classification falls under the SIPLUS S7-1500 act series, denoting specialized automation technology components.
• Category placement includes Automation technology, ET 200MP, and SIPLUS extreme active backplane bus segments.
• The part number 6AG1590-0BL00-7AA0 uniquely identifies this specific configuration within the Siemens portfolio.

Parameters are factual source fields retained for model review.

• Slot capacity is fixed at twelve positions for mounting S7-1500 I/O modules within the rack structure.
• Interface application context requires the IM 155-5 PN HF module with firmware version 4.4.1 or higher.
• Mounting rail and slot covers are not included and must be request separately for complete assembly.
• Environmental rating includes conformal coating listed for temperatures between minus forty and plus seventy degrees Celsius.
• Weight specification is recorded at 0.352 kilograms for structural load assessment during installation planning.

• Visual inspection should confirm the twelve-slot layout designed for S7-1500 module insertion.
• Check for conformal coating application on the visible circuit board areas for environmental protection.
• Verify labeling matches the part number 6AG1590-0BL00-7AA0 for accurate model identification.
• Assess physical dimensions against the recorded 45.4 x 11.6 x 3.4 cm specifications.

• Review project documents to confirm the need for extreme temperature operation capabilities.
• Verify that the existing IM 155-5 PN HF module meets the minimum firmware requirement.
• Ensure separate request are planned for the necessary mounting rail and slot covers.
• Confirm physical space constraints align with the recorded dimensions and weight parameters.

• Class B classification indicates review restrictions; contact the designated Siemens review contacts for handling procedures.
• Source parameter review confirms the base model derivation from 6ES7590-0BL00-0AA0 with added coatings.
• Project document review should highlight the separate request requirement for rails and covers.
• Technical summary validates the twelve-slot capacity and hot-swap functionality for system design.
