6AG1543-6WX00-7XE0 Communication Module Details

Part number

6AG1543-6WX00-7XE0

Brand

Siemens

Category

I/O Modules

Product type

Communication for SIPLUS ET 200SP CP 1543SP-1 ISEC

Lifecycle

Active Product

Dimensions

74.00 x 60.00 x 117.00 mm

Net weight

0.202 Kg

Source category

Communication for SIPLUS ET 200SP CP 1543SP-1 ISEC

• Physical dimensions are recorded at 74.00 x 60.00 x 117.00 mm for spatial planning purposes. Keep dimensions 74.00 x 60.00 x 117.00 mm and net weight 0.202 Kg unchanged while comparing project documents and product image evidence.
• Net weight is listed as 0.202 Kg to assist in load calculations during installation phases.
• Operating temperature range spans from -40 to +70 °C for diverse environmental applications.
• Security features include firewall and VPN support to protect network integrity against unauthorized access.
• Open IE communication protocols such as TCP/IP, ISO-on-TCP, and UDP are supported for flexibility.
• Time synchronization is achieved via NTP, ensuring accurate timing across distributed control systems.

• Base model reference is 6GK7543-6WX00-0XE0 with added environmental protection enhancements. Use the source path Automation technology / SIPLUS system connection / Communication for SIPLUS ET 200SP CP 1543SP-1 ISEC to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Lifecycle status is currently Active Product according to manufacturer documentation records.
• Product class indicates review restrictions requiring direct contact with Siemens review contacts for processing.
• Category classification places this item under IO modules within broader automation technology structures.

Parameters are factual source fields retained for model review.

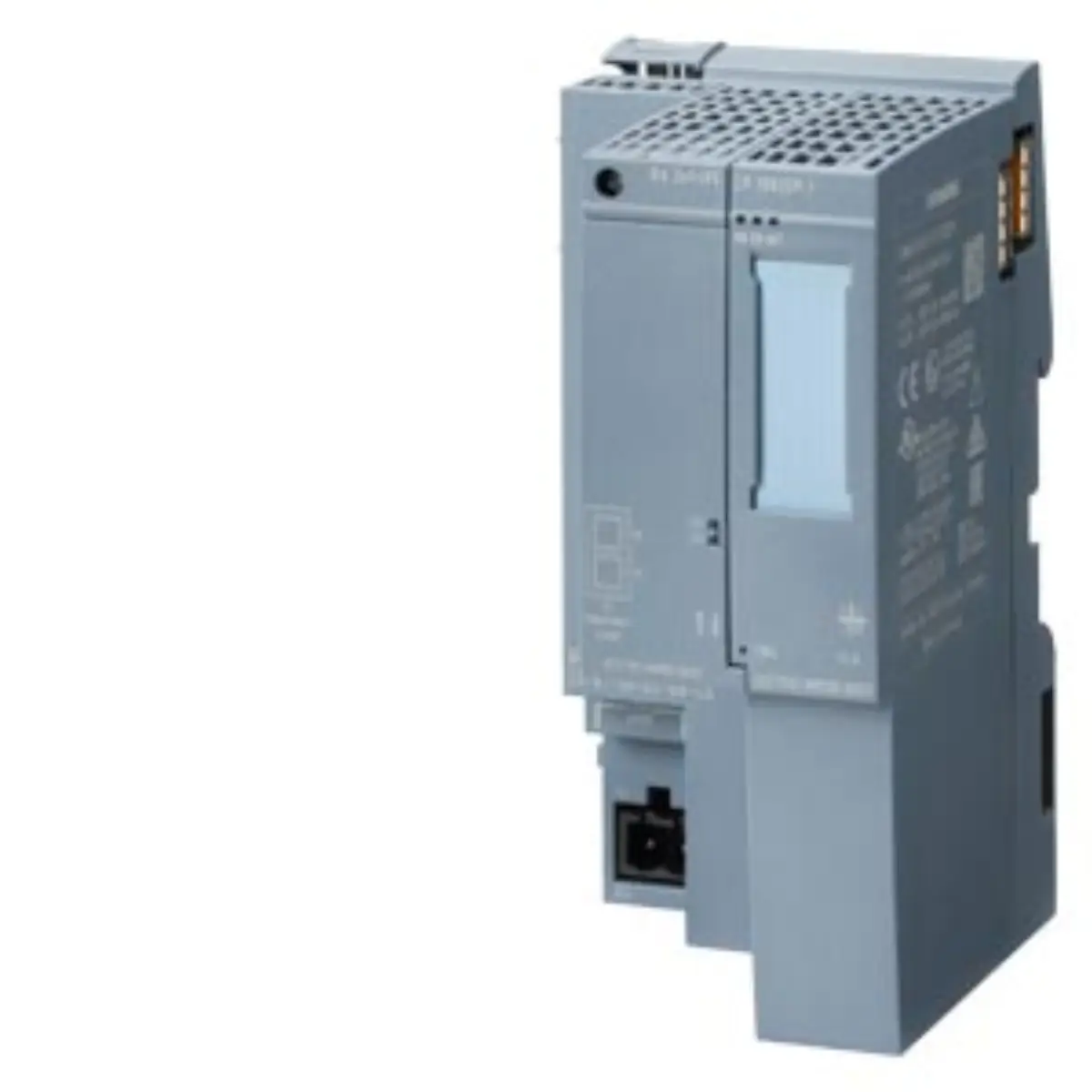

• PG/OP functionality allows programming and operation interfaces for system configuration and monitoring. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1543-6WX00-7XE0 record before publication.
• S7 routing capabilities enable communication between different PLCs across complex network topologies.
• IP broadcast and multicast support facilitate efficient data distribution to multiple network nodes.
• SNMP V1 and V3 protocols provide standardized network management and monitoring integration options.
• DHCP service support simplifies IP address assignment within dynamic network environment configurations.

• Visual inspection should confirm the presence of conformal coating on internal circuit components. Review Siemens 6AG1543-6WX00-7XE0 as Communication for SIPLUS ET 200SP CP 1543SP-1 ISEC with source category Communication for SIPLUS ET 200SP CP 1543SP-1 ISEC, recorded lifecycle Active Product, and submitted model identity.
• Label verification ensures the part number matches 6AG1543-6WX00-7XE0 exactly for accuracy.
• Connector integrity checks are recommended before initiating any physical installation procedures.
• Dimensional verification against provided specs aids in verifying correct housing fitment.

• Review project documentation to confirm temperature requirements align with -40 to +70 °C range.
• Verify network infrastructure supports required protocols like TCP/IP, UDP, and SNMP versions.
• Check if BusAdapter components are already present in the existing ET 200SP setup.
• Confirm security policy compliance regarding firewall and VPN settings for network integration.

• Ensure all technical parameters match specific project design requirements before submission.
• Cross-reference security features with current IT policies for network integration safety.
• Validate physical dimensions against recorded space in control cabinet layouts.
• Confirm lifecycle status remains active to ensure ongoing manufacturer support review details.
