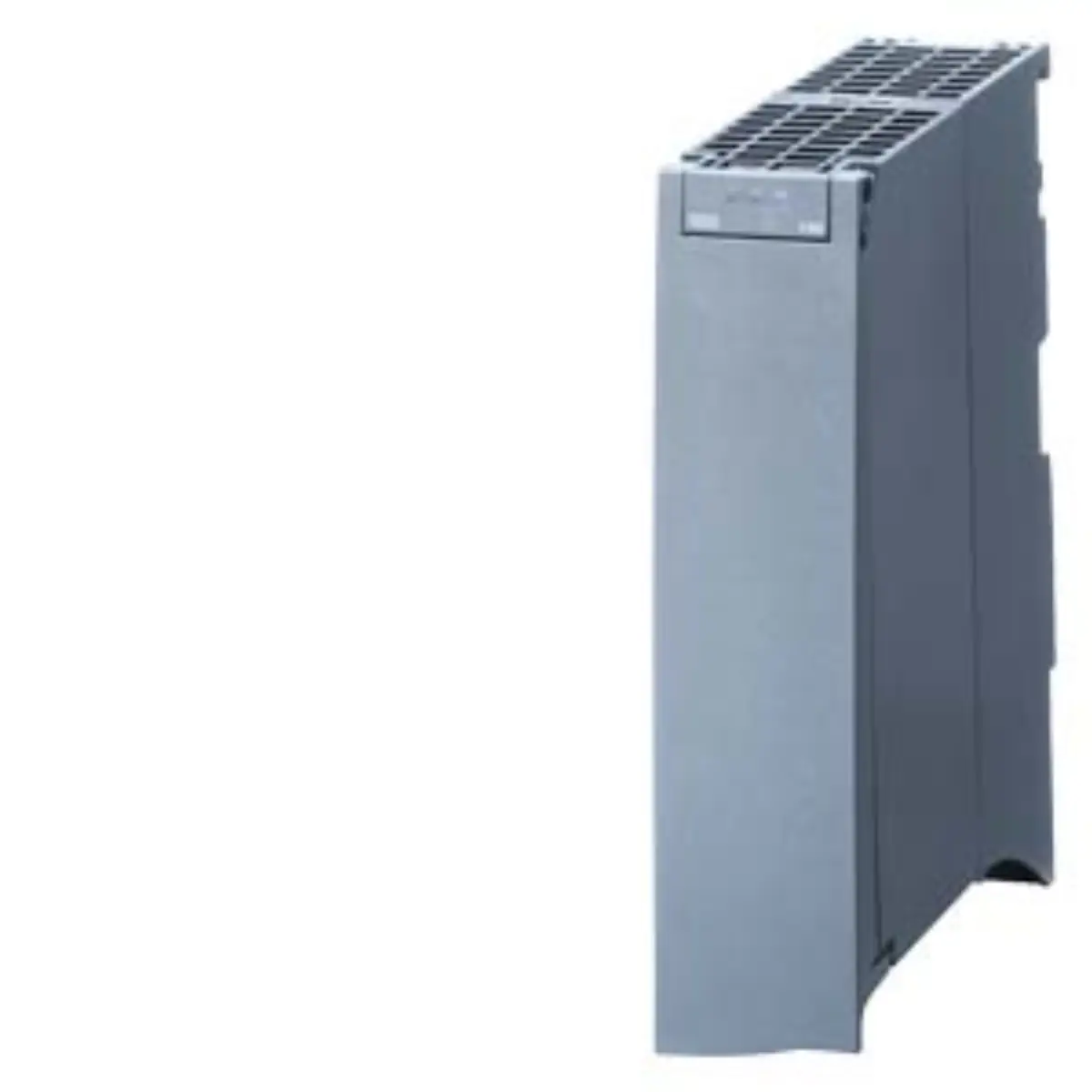

Siemens 6AG1540-1AD00-7AA0 Serial Communications Module

Part number

6AG1540-1AD00-7AA0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Phase Out Announce

Dimensions

15.00 x 15.00 x 4.4 cm

Net weight

0.27 Kg

• The module facilitates serial connections via an RS-232 interface standard. It utilizes a 9-pin D-sub plug for secure physical attachment to peripheral devices.
• Operational speed reaches up to 19200 Kbit/s for efficient data transmission. This rate supports various industrial communication protocols required for system integration.
• The device supports Freeport, 3964(R), and USS protocol modes. These modes allow flexible configuration for diverse industrial automation control scenarios.
• Operating temperatures range from -40°C to +70°C continuously. Startup capability begins at -25°C, providing flexibility during cold environment initialization.
• Physical dimensions measure 15.00 x 15.00 x 4.4 cm for compact mounting. The net weight is recorded at 0.27 Kg for structural planning.
• The base technology derives from the 6ES7540-1AD00-0AA0 component structure. This lineage ensures established reliability within the SIPLUS S7-1500 product family.

• Identify this unit as part of the SIPLUS S7-1500 product line. The designation indicates enhanced environmental resistance features compared to standard variants.
• The part number 6AG1540-1AD00-7AA0 distinguishes it from other serial modules. Verify this exact code when reviewing technical documentation or inquiry forms.
• Lifecycle status is currently listed as Phase Out Announce. Project planners should consider this status when evaluating long-term maintenance strategies.
• Product class B indicates specific handling requirements upon request. Review the submitted model details to understand associated procedural guidelines.
