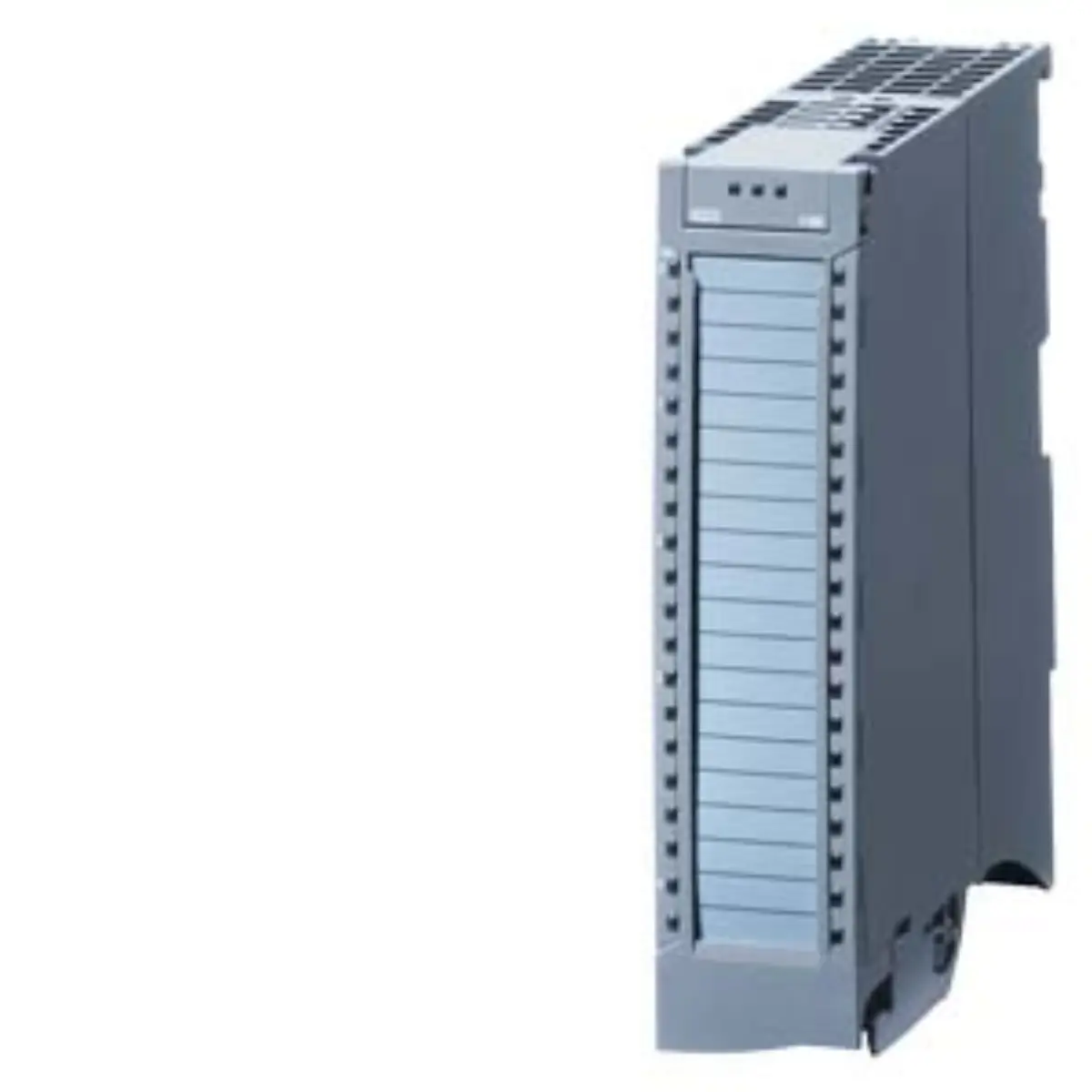

Siemens 6AG1532-5HF00-7AB0 SIPLUS S7-1500 Analog Output Module

Part number

6AG1532-5HF00-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

18.6 x 16.5 x 4.5 cm

Net weight

0.2 Kg

Source category

SIPLUS SM 532 analog output modules

• Eight analog output channels operate in groups of eight, delivering high-speed performance with 16-bit resolution. Keep dimensions 18.6 x 16.5 x 4.5 cm and net weight 0.2 Kg unchanged while comparing project documents and product image evidence.
• Accuracy is maintained at 0.4% for precise signal transmission across all connected output channels.
• Substitute values are calculated for eight channels within 0.125 ms, including the infeed element timing.
• Conformal coating protects internal components, ensuring durability in challenging industrial settings and harsh conditions.
• Operating temperature range spans from -40°C to +70°C, supporting extreme environmental applications effectively.
• Startup capability is confirmed down to -25°C, allowing functionality during cold initial power cycles.

• The part number 6AG1532-5HF00-7AB0 identifies this specific SIPLUS variant within the broader S7-1500 family.
• It is classified as an Active Product, indicating current manufacturing status and ongoing technical support review details.
• The product class B designation notes that review are restricted and require direct contact with Siemens.
• This module serves as the enhanced environmental version of the standard 6ES7532-5HF00-0AB0 hardware platform.
