6AG1532-5HD00-7AB0 SIPLUS S7-1500 Analog Output Module

Part number

6AG1532-5HD00-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

191.00 x 41.00 x 164.00 mm

Net weight

0.2 Kg

Source category

SIPLUS SM 532 analog output modules

• Module type is classified as an analog output device within the SIPLUS extended industrial range. Keep dimensions 191.00 x 41.00 x 164.00 mm and net weight 0.2 Kg unchanged while comparing project documents and product image evidence.
• Resolution is specified at 16 bits per channel, ensuring precise signal transmission for control applications.
• Accuracy is recorded at 0.3 percent, providing consistent performance across the operational temperature range.
• Channel configuration consists of four outputs grouped together for unified management and monitoring.
• Operating temperature range extends from -40 degrees Celsius to +70 degrees Celsius for extreme conditions.
• Physical dimensions are listed as 191.00 x 41.00 x 164.00 mm with a net weight of 0.2 Kg.

• Base hardware reference links to the standard S7-1500 AQ 4xU/I ST module architecture. Use the source path Automation technology / SIPLUS analog modules / SIPLUS SM 532 analog output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates specialized construction for use in demanding industrial environments and climates.
• Conformal coating is applied to protect internal circuitry from moisture, dust, and corrosive agents.
• Product lifecycle status is currently active, indicating ongoing manufacturing and support review details.

Parameters are factual source fields retained for model review.

• Voltage and current output types are supported through the standard U/I configuration of the base model. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1532-5HD00-7AB0 record before publication.
• Diagnostic features allow for continuous monitoring of channel status and potential fault detection mechanisms.
• Substitute value functionality ensures stable output signals during specific error states or communication interruptions.
• Infeed elements and shielding brackets are included as part of the comprehensive package assembly.
• Shield terminals are integrated to facilitate proper grounding and noise reduction in sensitive installations.

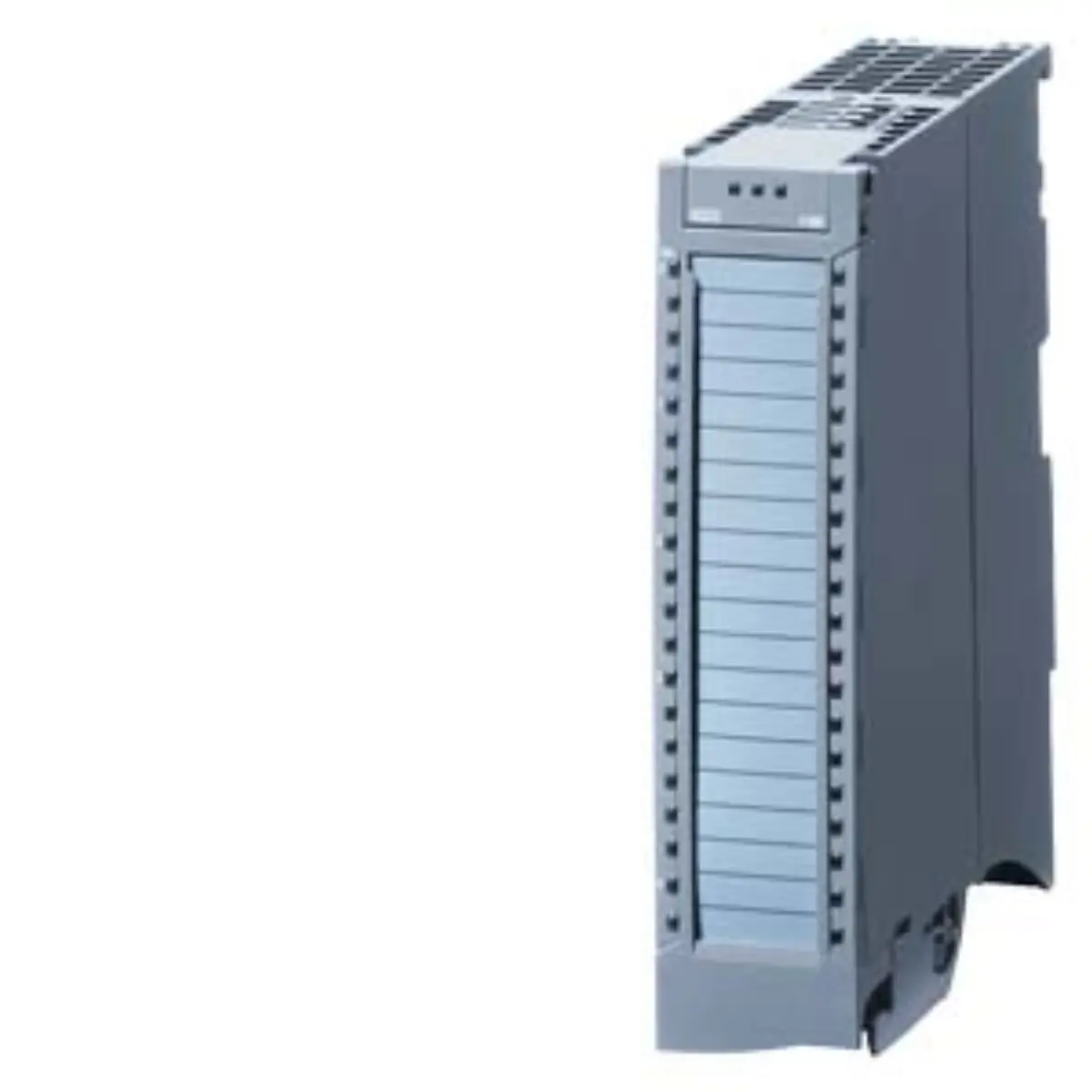

• Visual inspection should confirm the presence of the Siemens branding and model number label.
• Check for intact connectors and absence of physical damage to the housing structure.
• Verify that the conformal coating appears uniform without cracks or peeling on visible surfaces.
• Ensure all mounting points and screw holes are clear and undamaged for installation purposes.

• Confirm the required voltage levels and current ranges for your specific application load connections.
• Review the environmental conditions to ensure the -40 to +70 degree range meets needs.
• Check panel space constraints against the 191mm width and 164mm height dimensions provided.
• Prepare documentation detailing any special shielding or grounding requirements for your control cabinet.

• Class B classification indicates restricted review notes requiring direct contact with Siemens review contacts.
• Users must verify all technical specifications against their unique project documentation before proceeding.
• Shipping and handling procedures should account for the delicate nature of electronic components.
• Consult documented Siemens resources for detailed installation guides and wiring diagrams for this unit.
