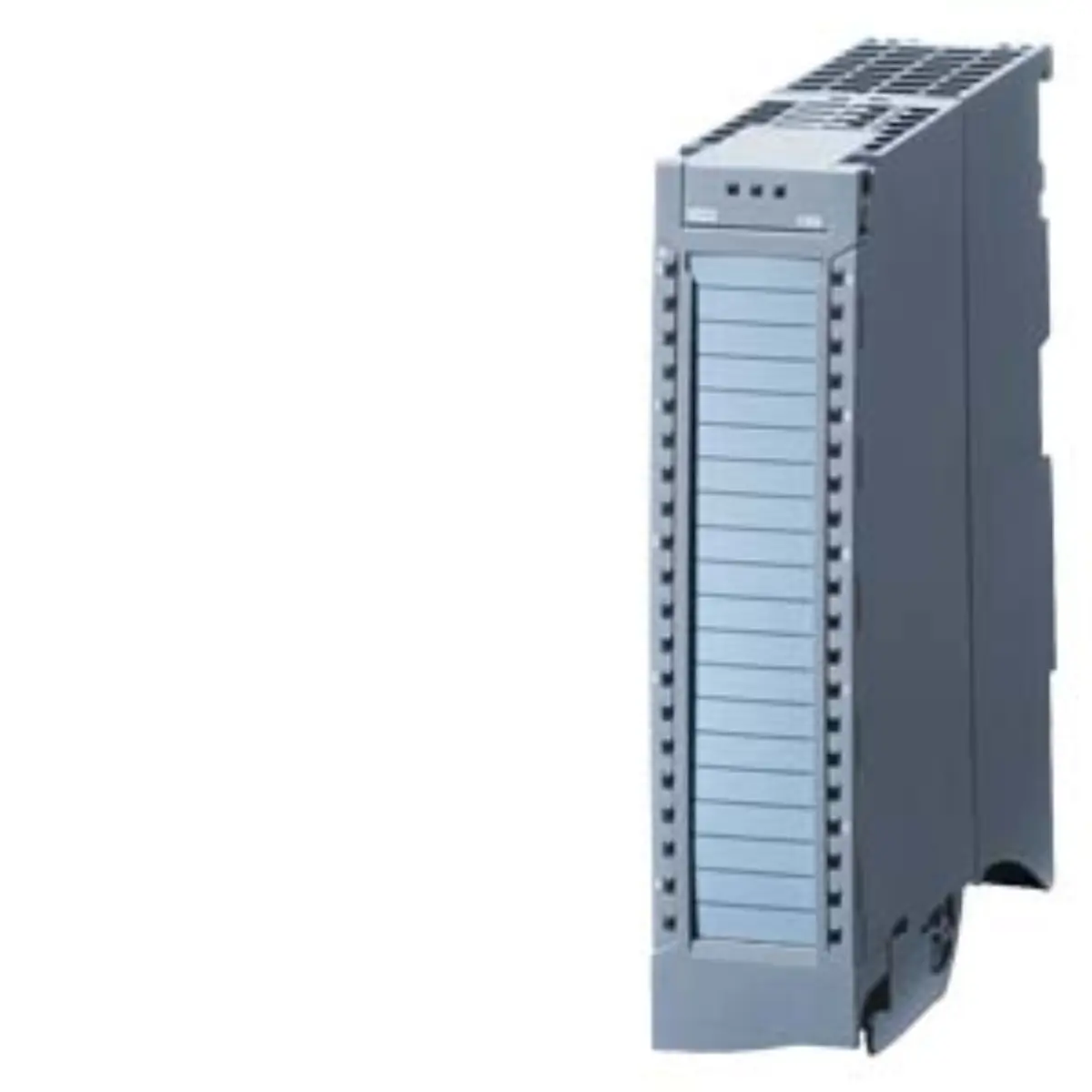

Siemens 6AG1531-7NF10-7AB0 SIPLUS Analog Input Module

Part number

6AG1531-7NF10-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

16.00 x 19.00 x 4.3 cm

Net weight

0.425 Kg

Source category

SIPLUS SM 531 analog input modules

• Eight channels provide high-speed analog input capabilities with a 16-bit resolution for precise signal acquisition across various industrial processes.
• Accuracy is maintained at 0.3% to ensure reliable data processing, supporting critical control loops and monitoring tasks effectively.
• Channels are grouped in sets of eight, allowing for efficient configuration and management within the broader automation network structure.
• Common mode voltage tolerance reaches 10 V, enhancing signal integrity and reducing noise interference during complex operational scenarios.
• Hardware interrupts are supported for all eight channels, enabling rapid response times measured at 0.0625 ms for immediate action.
• An infeed element is included to support power distribution, while a shielding bracket and shield terminal manage electromagnetic interference.

• The base model reference is 6ES7531-7NF10-0AB0, indicating the core hardware foundation before environmental modifications are applied.
• SIPLUS designation confirms the module meets extended specifications for temperature ranges and protection levels beyond standard industrial norms.
• Conformal coating is a key identifier, providing additional protection against moisture, dust, and corrosive agents in harsh settings.
• Operating temperature range spans from -40 to +70 degrees Celsius, defining the environmental limits for safe and effective operation.

Parameters are factual source fields retained for model review.

• Dimensions are recorded as 16.00 x 19.00 x 4.3 cm, providing spatial requirements for rack mounting and enclosure planning.
• Net weight is listed at 0.425 Kg, which assists in logistics calculations and structural load assessments for installation frames.
• Lifecycle status is active, meaning the product remains in current production and support phases for ongoing project needs.
• Product class indicates review restrictions, requiring direct contact with designated review contacts for any post-delivery handling procedures.
• Diagnostics features are integrated to monitor channel status and detect faults, aiding in maintenance and troubleshooting efforts.

• Visual inspection should confirm the presence of the shielding bracket attached to the module housing for proper grounding.
• Check that the shield terminal block is intact and correctly positioned for connecting cable shields to reduce noise.
• Verify labeling clarity on the front panel, ensuring the part number and SIPLUS branding are legible and accurate.
• Examine the connector pins for any signs of damage or corrosion, ensuring readiness for secure electrical connections.

• Review project documentation to confirm voltage levels and signal types match the module's eight-channel analog input specifications.
• Assess environmental conditions to ensure the -40 to +70 degree Celsius range aligns with the installation site requirements.
• Prepare technical questions regarding the review restriction policy and necessary contacts for handling post-delivery procedures.
• Document specific mounting constraints and verify rack space review details based on the recorded physical dimensions of the unit.

• Source parameter review should validate the 16-bit resolution against the precision needs of the intended application process.
• Confirm that the hardware interrupt capability meets the timing requirements for fast-response control loops in the system.
• Evaluate the common mode voltage specification to ensure application context with the existing sensor wiring and grounding schemes.
• Note the review restriction class when preparing documentation, as this impacts logistical planning and post-inquiry support arrangements.
