6AG1531-7LH00-7AB0 SIPLUS S7-1500 Analog Input Module

Part number

6AG1531-7LH00-7AB0

Brand

Siemens

Category

I/O Modules

Product type

SIPLUS S7-1500 AI 16xU BA based on 6ES7531-7LH00-0AB0 with conformal coating -40

Lifecycle

Active Product

Dimensions

19.4 x 16.1 x 4.7 cm

Net weight

0.367 Kg

Source category

SIPLUS SM 531 analog input modules

• The device provides sixteen analog input channels grouped together for efficient signal acquisition and processing within automated control systems.
• Resolution is maintained at 16 bits with an accuracy specification of 0.5 percent for reliable measurement of process variables.
• Common mode voltage is recorded at 4 V DC, ensuring stable operation when interfacing with various sensor types and ground potentials.
• Hardware interrupts and comprehensive diagnostics are integrated to support rapid fault detection and maintenance scheduling during system operation.
• The physical dimensions are listed as 19.4 by 16.1 by 4.7 centimeters, allowing for compact mounting in standard automation cabinets.
• Net weight is documented at 0.367 kilograms, facilitating easy handling and installation without requiring heavy-duty support structures.

• The part number 6AG1531-7LH00-7AB0 identifies the specific SIPLUS variant with extended environmental protection features.
• It is classified under the S7-1500 series, indicating application context with modern SIMATIC automation controller architectures.
• The product lifecycle status is currently active, meaning it remains a supported item for new design implementations.
• Classification B indicates restricted review notes, requiring direct contact with designated Siemens review contacts for handling procedures.

Parameters are factual source fields retained for model review.

• Review the input channel count of sixteen to ensure sufficient capacity for your specific sensor network requirements.
• Verify the 16-bit resolution and 0.5 percent accuracy meet the precision standards of your application processes.
• Check the operating temperature range of minus forty to plus seventy degrees against your environmental conditions.
• Confirm that the front connector type, whether screw or push-in, is request separately as per delivery notes.
• Note that the infeed element, shielding bracket, and shield terminal are included in the standard delivery package.

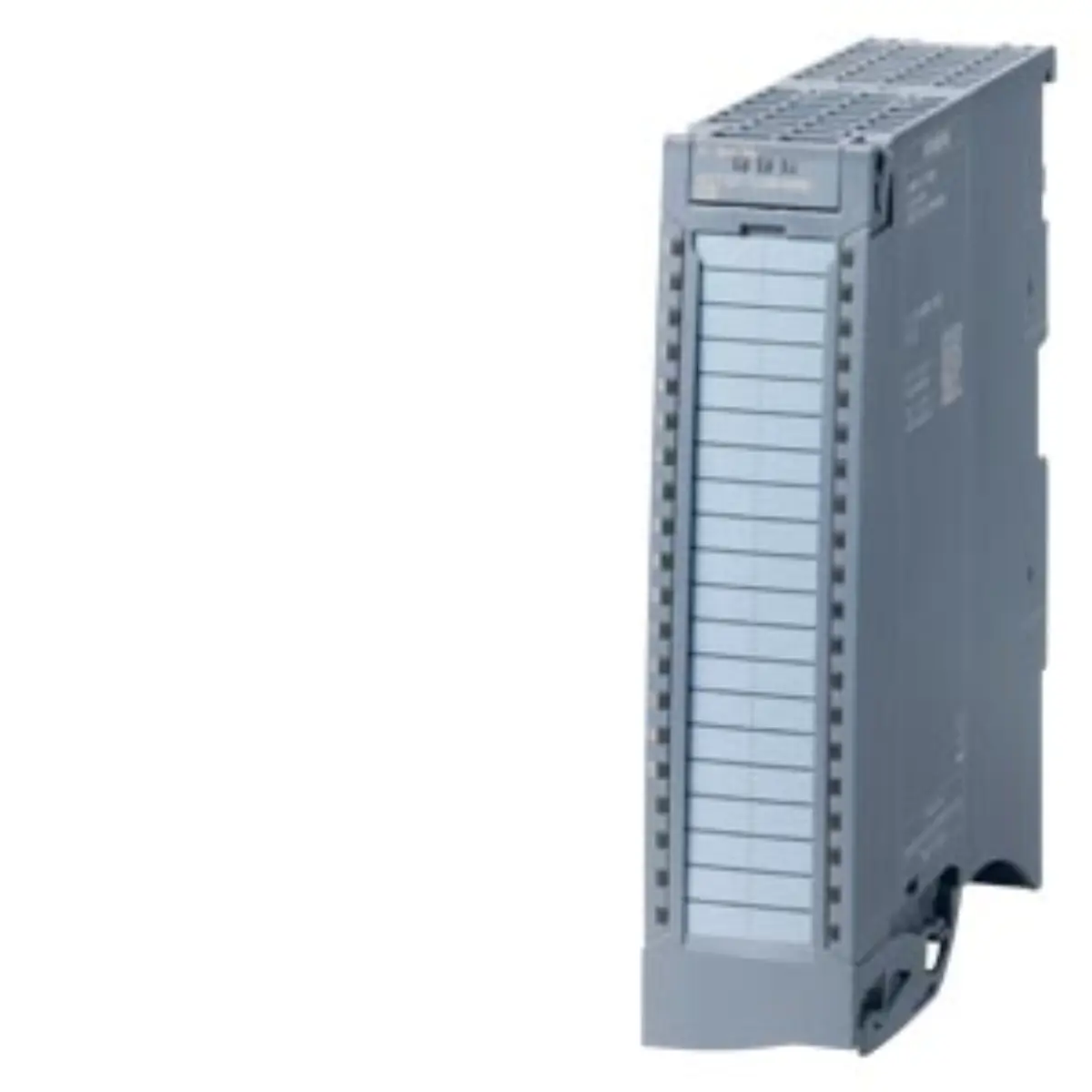

• Images typically display the rectangular module form factor consistent with the stated 19.4 centimeter width dimension.
