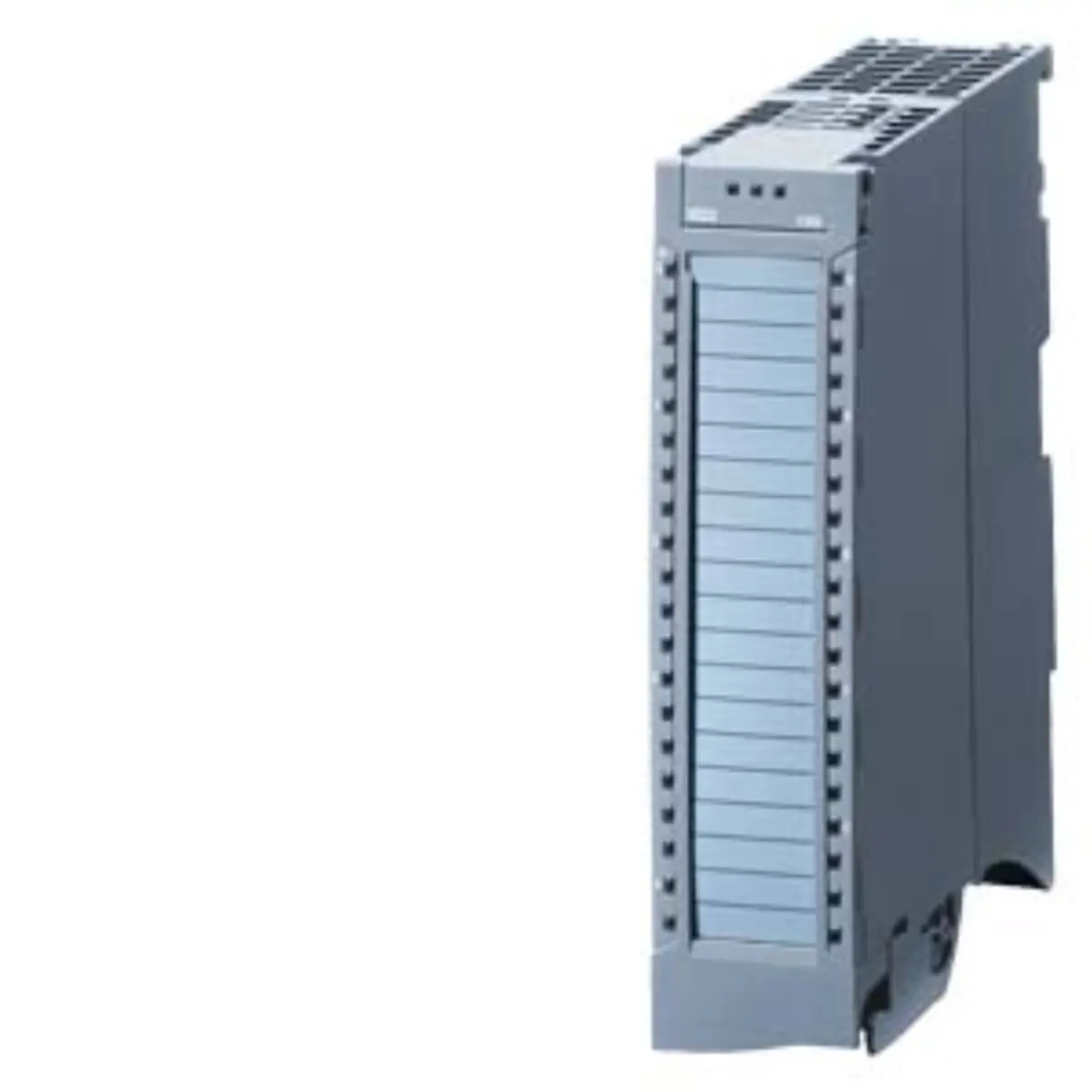

Siemens 6AG1531-7KF00-7AB0 SIPLUS Analog Input Module

Part number

6AG1531-7KF00-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

16.00 x 19.00 x 4.3 cm

Net weight

0.418 Kg

Source category

SIPLUS SM 531 analog input modules

• Eight universal input channels support voltage, current, resistance, and thermocouple signals. Keep dimensions 16.00 x 19.00 x 4.3 cm and net weight 0.418 Kg unchanged while comparing project documents and product image evidence.
• Sixteen-bit resolution ensures precise data acquisition for critical process control applications.
• Accuracy is maintained at 0.3% for consistent measurement performance across channels.
• Four dedicated channels facilitate direct connection to Resistance Temperature Detector sensors.
• Common mode voltage tolerance reaches ten volts for robust noise immunity.
• Hardware interrupts and diagnostics enable rapid response to signal anomalies or faults.

• Base model reference is 6ES7531-7KF00-0AB0 with specific SIPLUS enhancements applied. Use the source path Automation technology / SIPLUS analog modules / SIPLUS SM 531 analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification falls under SIPLUS SM 531 analog input module series.
• Lifecycle status is recorded as Active Product for ongoing project planning.
• Brand designation confirms manufacturing origin under the Siemens industrial automation portfolio.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 16.00 x 19.00 x 4.3 centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1531-7KF00-7AB0 record before publication.
• Net weight is listed as 0.418 kilograms for logistical handling assessments.
• Channel grouping structure organizes inputs into sets of eight for management.
• Shielding bracket and shield terminal are included for electromagnetic interference mitigation.
• Infeed element integration supports hardware interrupt functionality for immediate fault detection.

• Front panel displays channel indicators for visual status monitoring during operation. Review Siemens 6AG1531-7KF00-7AB0 as I/O Modules with source category SIPLUS SM 531 analog input modules, recorded lifecycle Active Product, and submitted model identity.
• Terminal blocks show connection points for various sensor types and wiring.
• Conformal coating layer is visible on internal circuitry upon housing removal.
• Mounting rail interface allows secure attachment to standard DIN rail systems.

• Verify required input signal types before submitting detailed technical specifications. Keep dimensions 16.00 x 19.00 x 4.3 cm and net weight 0.418 Kg unchanged while comparing project documents and product image evidence.
• Confirm ambient temperature conditions match the minus forty to plus seventy range.
• Assess need for additional shielding due to local electromagnetic interference levels.
• Review project documentation for specific diagnostic and interrupt configuration requirements.

• Source parameter review confirms alignment with standard S7-1500 electrical characteristics.
• Project document review should address specific environmental protection requirements clearly.
• Submitted model verification ensures correct part number selection for inquiry preparation.
• Technical specification cross-check validates application context with existing control system infrastructure.
