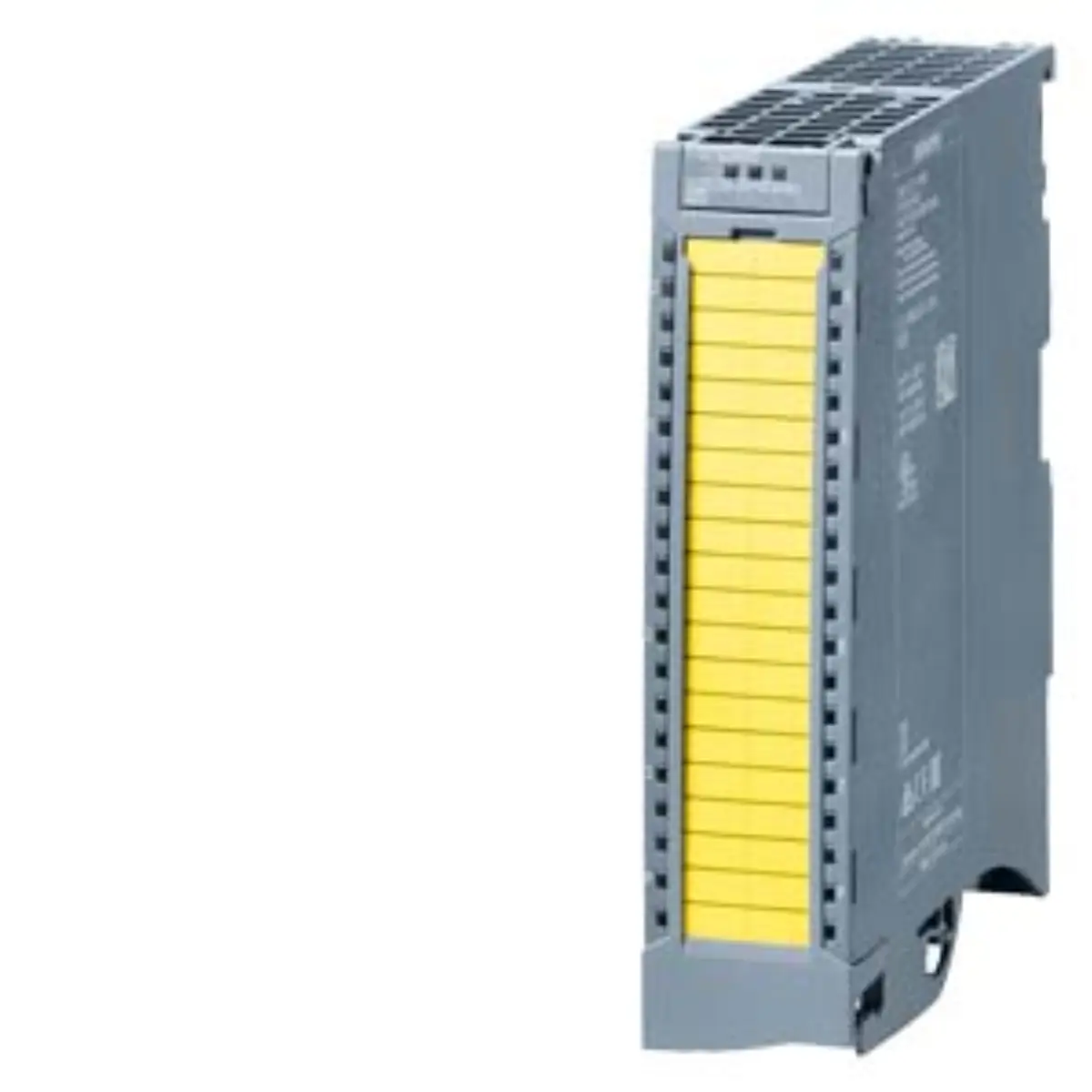

Inquiry: Siemens 6AG1526-2BF00-2AB0 Digital Output Module

Part number

6AG1526-2BF00-2AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.2 x 15.00 x 4.5 cm

Net weight

0.386 Kg

Source category

SIPLUS digital F-output modules

• Functional classification indicates active product status within the Siemens portfolio for ongoing engineering projects. Keep dimensions 15.2 x 15.00 x 4.5 cm and net weight 0.386 Kg unchanged while comparing project documents and product image evidence.
• Physical dimensions measure approximately 15.2 x 15.00 x 4.5 cm, fitting standard 35 mm DIN rail mounting systems.
• Net weight is recorded at 0.386 Kg, facilitating straightforward handling during installation and maintenance procedures.
• Safety integrity levels support up to PL E according to ISO 13849-1 standards for machinery safety.
• SIL3 compliance is achieved per IEC 61508, ensuring high reliability for critical safety-related control functions.
• Operating voltage specification targets 24VDC outputs with a current capacity of 2A per channel for robust switching.

• Part number 6AG1526-2BF00-2AB0 identifies the specific SIPLUS variant of the standard S7-1500 F-DQ module. Use the source path SIPLUS F-digital/analog modules / SIPLUS digital F-output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The base model 6ES7526-2BF00-0AB0 serves as the reference for the underlying hardware architecture and functionality.
• SIPLUS designation confirms the inclusion of extended environmental ratings and protective coatings for severe operating conditions.
• F-DQ nomenclature denotes a functional safety digital output module with defined diagnostic and safety features.

Parameters are factual source fields retained for model review.

• Temperature range spans from -30°C minimum to +60°C maximum, accommodating diverse global climate requirements.
• Conformal coating application protects internal circuitry from humidity, dust, and chemical exposure common in heavy industry.
• Module width adheres to the standard 35 mm profile, ensuring application context with existing rack configurations.
• Output configuration supports eight discrete channels, providing sufficient control points for complex safety logic applications.
• Current rating of 2A per channel allows direct connection to various industrial actuators and signaling devices.

• Visual inspection should confirm the presence of the Siemens branding and printed part number label.
• Check for intact connector pins and secure housing seals to verify physical condition upon receipt.
• Review the labeling for temperature ratings and safety certification marks to ensure specification alignment.
• Examine the module edges and surface for any signs of physical damage or manufacturing defects.

• Verify that the target application requires SIL3 rated digital outputs for functional safety compliance.
• Confirm ambient temperature conditions fall within the -30°C to +60°C operational window for this module.
• Ensure the control rack supports 35 mm DIN rail mounting for proper mechanical installation.
• Document the required channel count and current load characteristics to validate the 2A output capability.

• Product class B indicates restricted review notes; contact the designated Siemens review contacts for clarification.
• All technical data is sourced directly from manufacturer documentation for accuracy in project planning.
• Inquiries should focus on technical specifications rather than commercial terms or immediate catalog record status.
• Cross-reference the normalized part number 6AG15262BF002AB0 when searching internal databases or legacy records.
