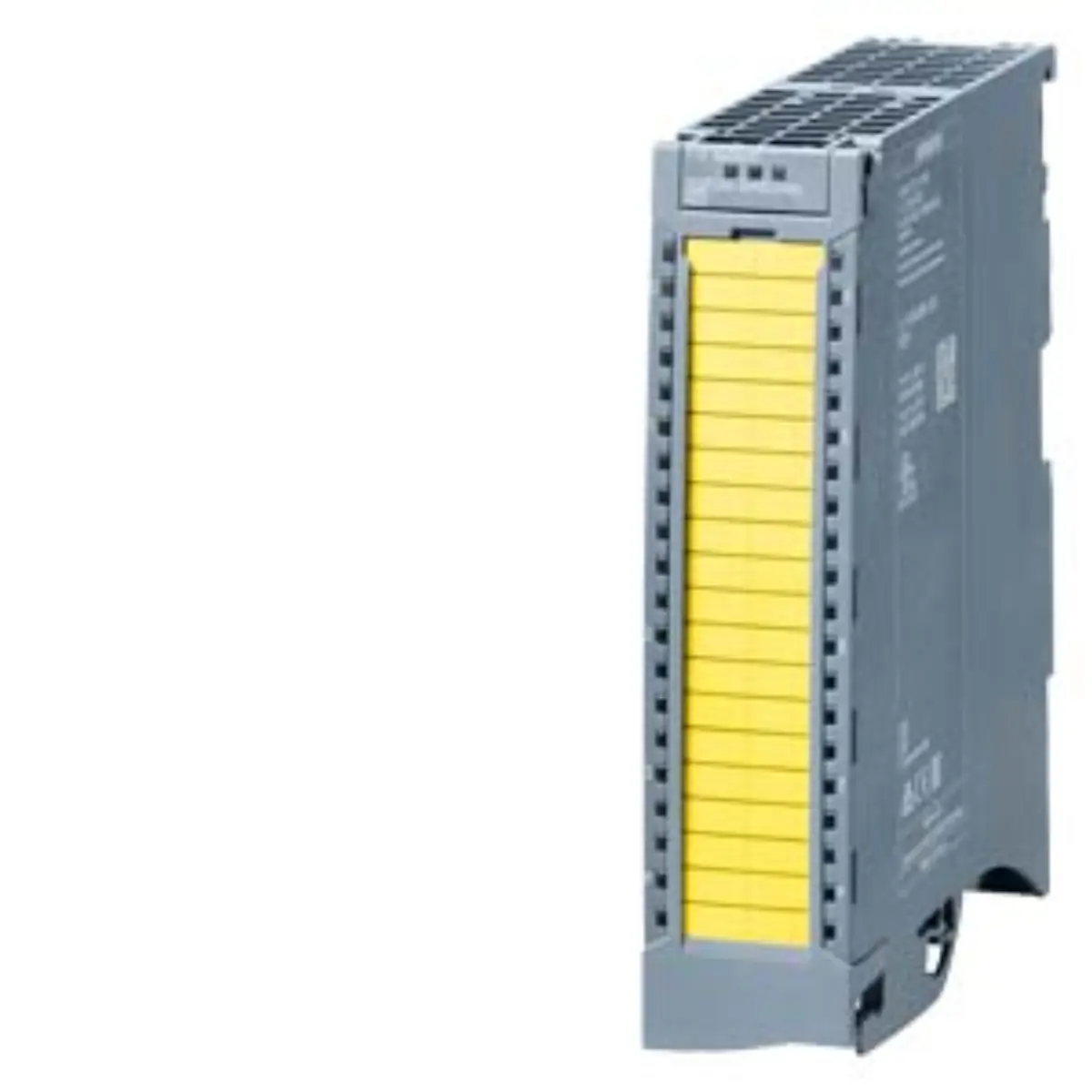

Inquiry: Siemens 6AG1526-1BH00-2AB0 SIPLUS Safety Input Module

Part number

6AG1526-1BH00-2AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.2 x 15.00 x 4.2 cm

Net weight

0.341 Kg

Source category

SIPLUS digital F-input modules

• Base model reference is 6ES7526-1BH00-0AB0, adapted for enhanced durability and environmental resistance in critical applications.
• Conformal coating provides additional protection against moisture, dust, and corrosive agents that could affect electronic components.
• Operating temperature range spans from -30°C to +60°C, allowing functionality in extreme cold or heat scenarios.
• Safety classification reaches Performance Level E per ISO 13849-1 and Safety Integrity Level 3 per IEC 61508 standards.
• Physical dimensions measure 15.2 x 15.00 x 4.2 cm, fitting standard 35 mm DIN rail mounting configurations easily.
• Net weight is recorded at 0.341 Kg, contributing to manageable handling during installation and maintenance procedures.

• Part number 6AG1526-1BH00-2AB0 identifies the specific SIPLUS variant within the broader S7-1500 F-DI product family.
• The prefix 6AG1 indicates Siemens industrial automation components, specifically those related to SIMATIC S7-1500 systems.
• Suffix AB0 distinguishes this hardened version from the standard uncoated digital input modules in the same series.
• Model designation confirms it is a F-digital input module with 16 channels for 24 V DC signals.

Parameters are factual source fields retained for model review.

• Input voltage specification is 24 V DC, consistent with standard industrial control panel power distribution networks.
• Channel count is fixed at 16 digital inputs, providing sufficient connectivity for complex safety logic implementations.
• Mounting width is 35 mm overall, ensuring application context with standard rack systems used in automation cabinets.
• Lifecycle status is listed as Active Product, indicating ongoing support and review details for new project planning.
• Product class B notes indicate review restrictions, requiring direct contact with designated Siemens review contacts for processing.

• Visual inspection should confirm the presence of conformal coating on the circuit board surface area.
• Terminal block layout must match the 16-channel configuration specified for the 24 V DC input signals.
• Labeling on the module front should clearly display the full part number 6AG1526-1BH00-2AB0 for verification.
• Physical condition checks should verify no damage to the housing or mounting clips during transport.

• Review project documentation to confirm the need for extended temperature tolerance and environmental protection features.
• Verify that the 24 V DC signal type matches the sensors or switches intended for connection.
• Check system architecture requirements to ensure the 35 mm width fits within existing rack space constraints.
• Prepare technical questions regarding the review note specifics due to the Class B product classification noted.

• Confirm the exact part number matches the requirement before submitting any detailed technical inquiry requests.
• Ensure the safety integrity level requirements align with the PL E and SIL 3 capabilities listed.
• Document the environmental conditions of the installation site to justify the need for conformal coating features.
• Reference the base model 6ES7526-1BH00-0AB0 when comparing standard versus hardened module performance specifications.
