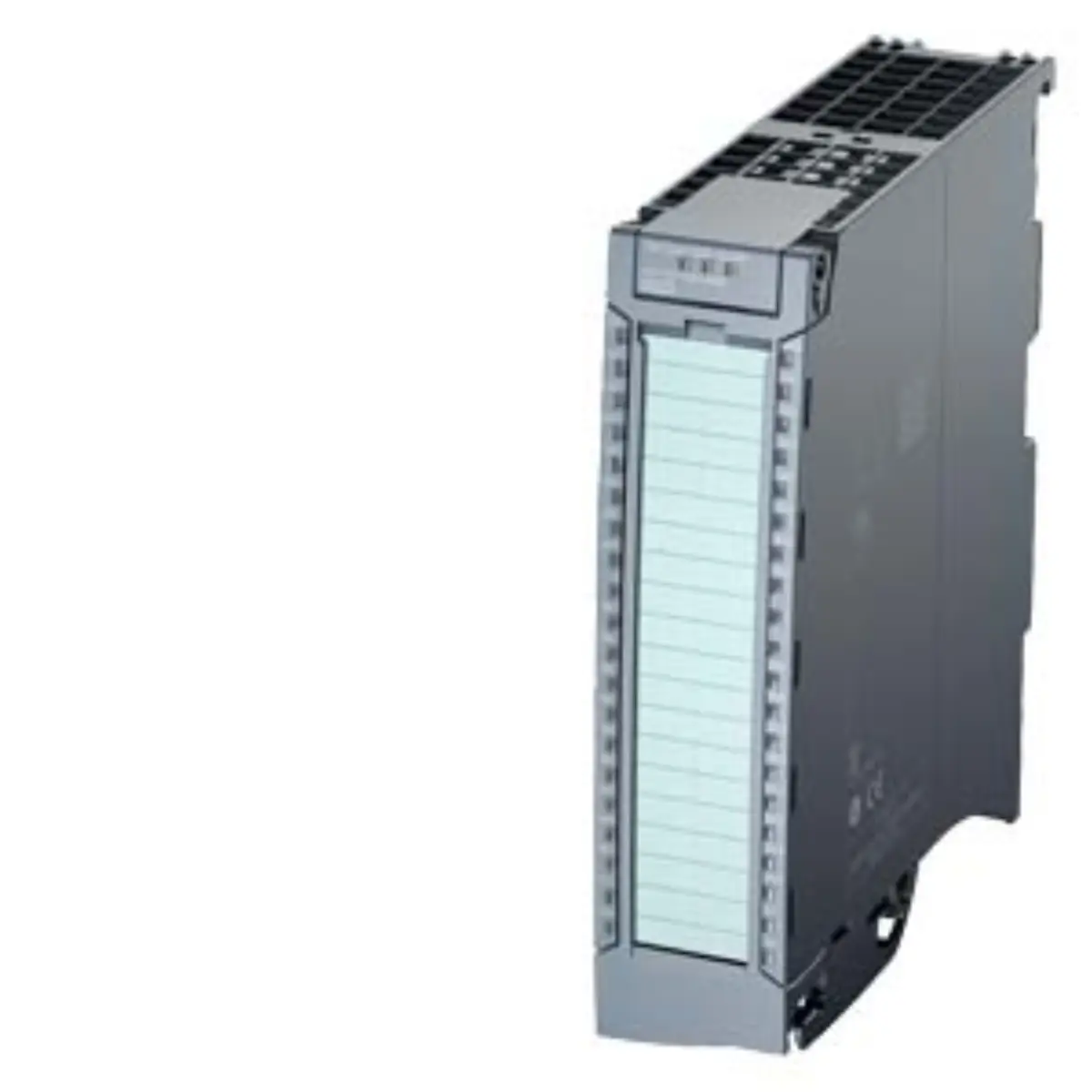

Siemens 6AG1522-5FH00-7AB0 Digital Output Module Details

Part number

6AG1522-5FH00-7AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

15.00 x 15.00 x 4.4 cm

Net weight

0.366 Kg

Source category

SIPLUS SM 522 digital output modules

• This module provides sixteen digital output channels configured in groups of two for precise control. Keep dimensions 15.00 x 15.00 x 4.4 cm and net weight 0.366 Kg unchanged while comparing project documents and product image evidence.
• Each group supports a current capacity of two amperes, allowing for robust load switching operations.
• The operating temperature range spans from minus forty degrees Celsius to plus seventy degrees Celsius.
• Startup functionality is maintained at temperatures as low as minus twenty-five degrees Celsius reliably.
• Conformal coating is applied to the circuitry to ensure durability in corrosive or humid conditions.
• The device utilizes TRIAC technology for switching, making it listed for specific AC load types.

• The part number 6AG1522-5FH00-7AB0 identifies this specific SIPLUS variant within the S7-1500 family. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 522 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is classified under the SIPLUS digital modules category for extended environmental performance standards.
• The base model reference is 6ES7522-5FH00-0AB0, indicating its foundational hardware architecture and design.
• This unit is categorized as a digital output module with specific grouping and current ratings.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as fifteen centimeters by fifteen centimeters by four point four centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1522-5FH00-7AB0 record before publication.
• The net weight of the unit is listed as zero point three six six kilograms for logistics.
• Channel configuration consists of sixteen outputs divided into eight distinct groups for management.
• Current rating is specified as two amperes per group rather than per individual channel output.
• Temperature limits define the operational envelope, requiring adherence to the stated thermal boundaries.

• Visual inspection should confirm the presence of conformal coating on the internal circuit board areas.
• Labeling must clearly display the full part number 6AG1522-5FH00-7AB0 for accurate identification purposes.
• Connector pins should be checked for integrity, ensuring no damage occurred during previous handling stages.
• Housing condition should be reviewed for cracks or signs of excessive wear from installation.

• Verify that your project environment falls within the specified minus forty to plus seventy degree range.
• Confirm that the load type matches the TRIAC switching capabilities of this specific digital module.
• Check group current requirements to ensure they do not exceed the two ampere limit per group.
• Prepare documentation detailing the ambient conditions to justify the need for the SIPLUS extension features.

• The product class indicates review restrictions, requiring direct contact with designated Siemens review contacts for support.
• Lifecycle status is active, meaning the component remains in production and supported by the manufacturer.
• Source parameters should be cross-referenced with your system integration documents before finalizing inquiry details.
• Ensure all technical constraints are documented to facilitate a precise and efficient inquiry preparation discussion.
