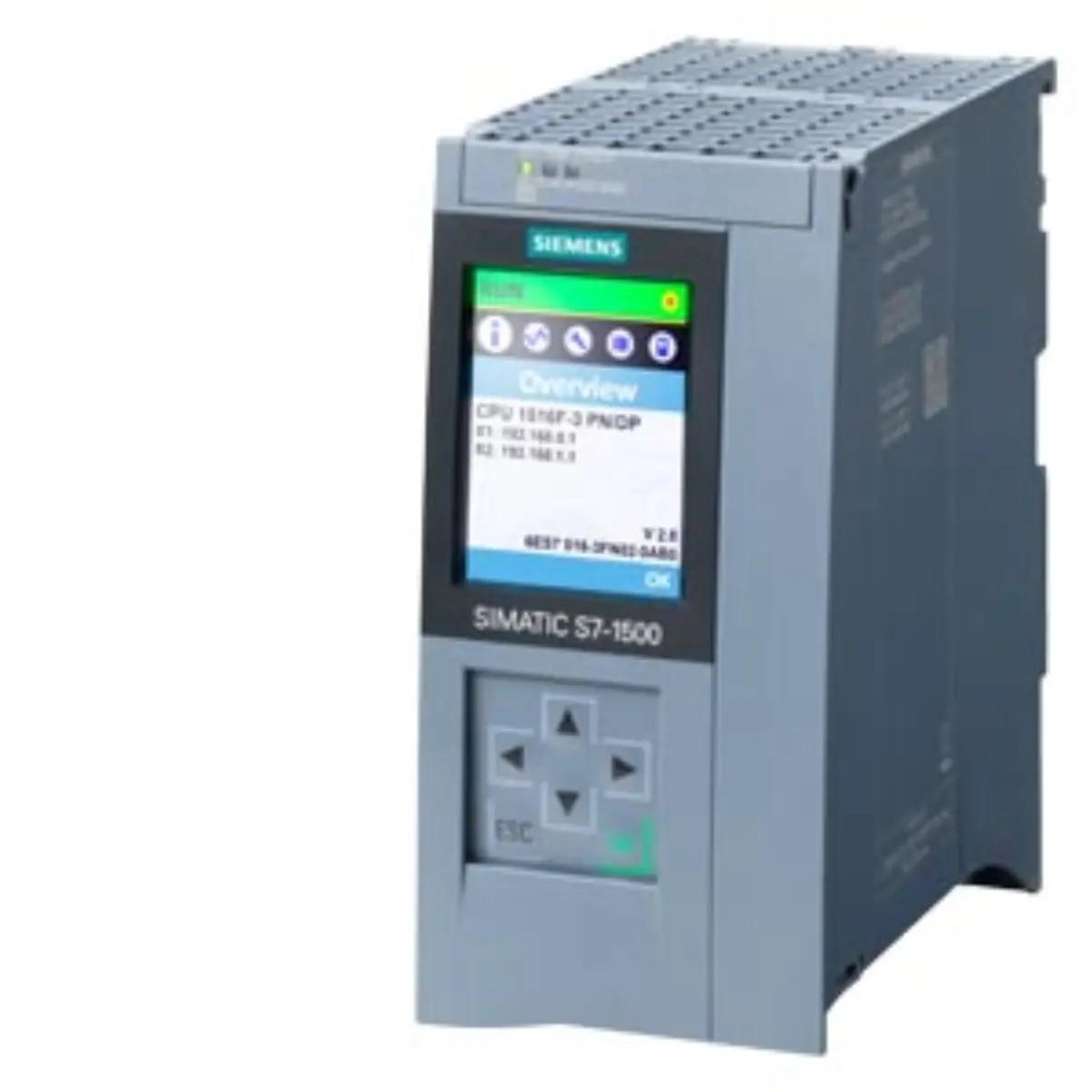

Inquiry for Siemens 6AG1516-3FN02-2AB0 Central Processing Unit

Part number

6AG1516-3FN02-2AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

15.5 x 15.5 x 8.00 cm

Net weight

0.615 Kg

• Central processing unit based on the 6ES7516-3FN02-0AB0 platform with enhanced environmental protection features. Keep dimensions 15.5 x 15.5 x 8.00 cm and net weight 0.615 Kg unchanged while comparing project documents and product image evidence.
• Work memory capacity includes 1.5 MB for program storage and 5 MB for data retention operations.
• First interface utilizes PROFINET IRT technology equipped with a two-port switch for network connectivity.
• Second interface provides PROFINET RT support for real-time communication requirements within automated systems.
• Third interface integrates PROFIBUS connectivity for established industrial fieldbus network integration and operation.
• Bit performance is recorded at 10 nanoseconds, ensuring high-speed processing for critical control tasks.

• The part number 6AG1516-3FN02-2AB0 identifies the specific SIPLUS variant of the S7-1500 CPU. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Lifecycle status is listed as Prod. Cancellation, indicating the end of production for this model.
• Conformal coating is a key identifier distinguishing this unit from standard S7-1500 series components.
• Extended temperature range of -40 to +60 degrees Celsius is a primary specification feature.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.5 by 15.5 by 8.00 centimeters for spatial planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1516-3FN02-2AB0 record before publication.
• Net weight is specified as 0.615 kilograms, relevant for logistics and mounting considerations.
• A SIMATIC Memory Card is required for operation, which must be reviewed during setup.
• Interface configurations include PROFINET IRT, PROFINET RT, and PROFIBUS for versatile network integration.
• Memory allocation separates 1.5 MB for programs and 5 MB for data management tasks.

• Visual inspection should confirm the presence of the SIPLUS branding on the unit casing.
• Check that the label clearly displays the full part number 6AG1516-3FN02-2AB0 without errors.
• Verify the physical condition of the connectors for PROFINET and PROFIBUS interfaces before submission.
• Ensure the conformal coating appears intact and free from visible damage or defects.

• Gather project documentation specifying the need for extended temperature range central processing units.
• Confirm the requirement for a SIMATIC Memory Card to accompany the CPU inquiry process.
• Review network topology needs to ensure PROFINET IRT and PROFIBUS interfaces meet system demands.
• Prepare technical specifications highlighting the 10 ns bit performance for high-speed control applications.

• The lifecycle status indicates production cancellation, which may impact long-term supply chain planning.
• Technical parameters suggest suitability for environments requiring robust protection against environmental stressors.
• Memory card requirement is a critical operational dependency that must be addressed in design.
• Interface diversity allows for flexible integration into existing PROFINET and PROFIBUS network architectures.
