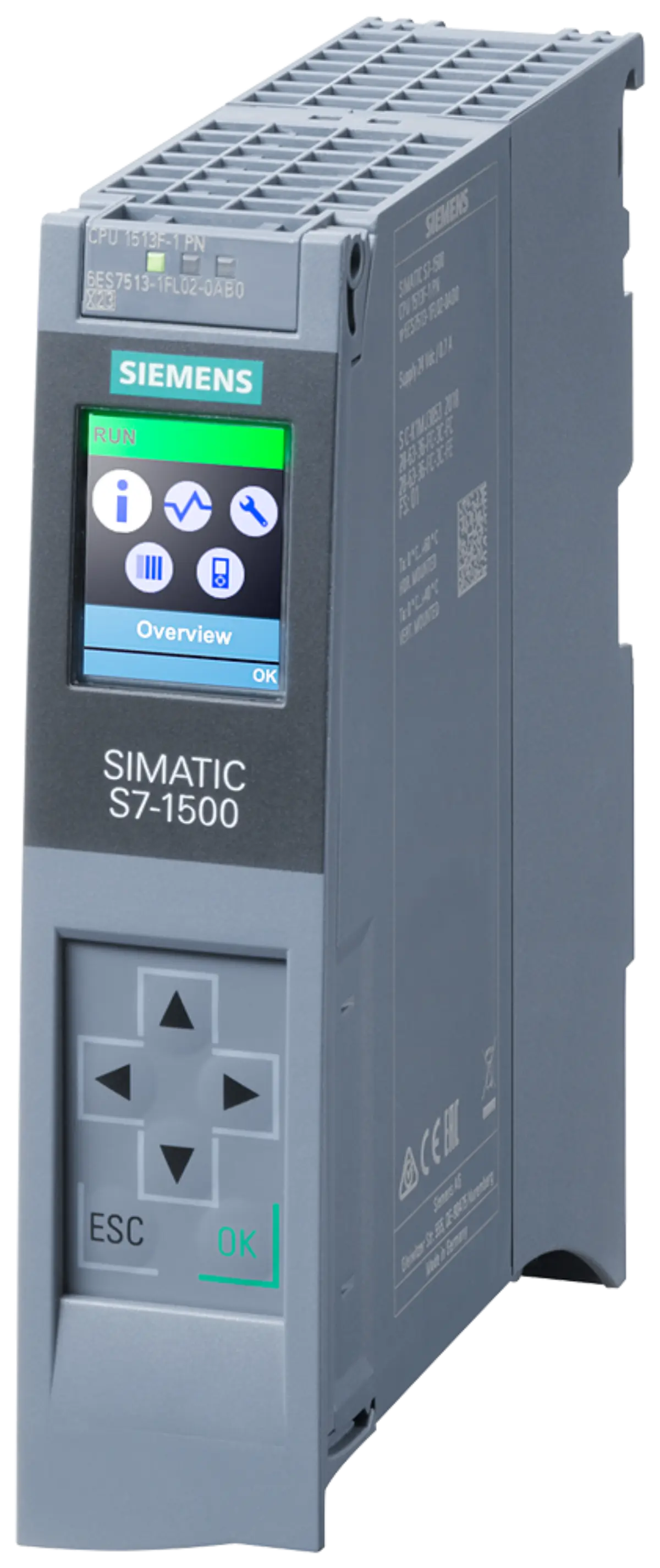

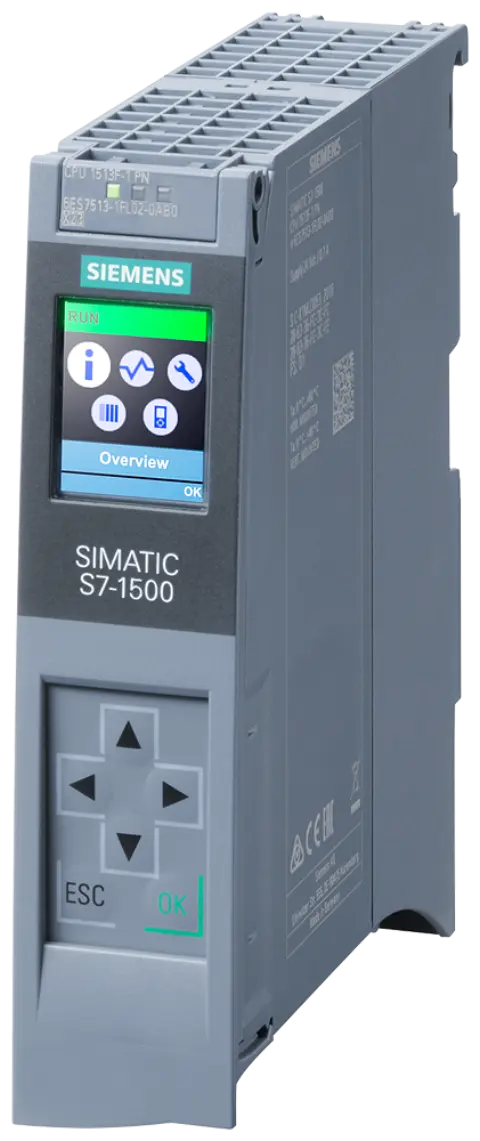

Siemens 6AG1513-1FL02-2AB0 SIPLUS S7-1500 CPU Inquiry

Part number

6AG1513-1FL02-2AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

15.00 x 15.00 x 4.4 cm

Net weight

0.455 Kg

• Central processing unit equipped with a work memory capacity of 450 KB dedicated to program storage and execution tasks.
• Additional data memory of 1.5 MB is allocated for data handling, supporting complex industrial automation logic and storage requirements.
• First interface utilizes PROFINET IRT technology featuring a 2-port switch configuration for high-speed deterministic communication networks.
• Bit performance capability is recorded at 40 ns, ensuring rapid processing cycles essential for time-critical control applications.
• Operating temperature range extends from -25°C to +60°C, allowing functionality in environments with significant thermal variations.
• Conformal coating is applied to internal components, providing enhanced protection against moisture, dust, and corrosive industrial atmospheres.

• Base model reference is 6ES7513-1FL02-0AB0, with the current part number representing the SIPLUS enhanced version.
• Lifecycle status is listed as Prod. Cancellation, indicating the end of standard production phases for this specific item.
• Product classification B notes that review are restricted and require consultation with documented Siemens contact points.
• Spare part display requirement is noted as 6AG1591-1AB00-2AA0, which may be necessary for visual identification purposes.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.00 x 15.00 x 4.4 cm, fitting standard industrial rack mounting configurations.
• Net weight is specified at 0.455 Kg, contributing to overall system load calculations during installation planning stages.
• Memory allocation includes distinct sections for program and data, optimizing resource usage for specific automation control tasks.
• Network interface supports PROFINET IRT, enabling real-time communication protocols required for synchronized multi-axis motion control.
• Environmental rating includes extended temperature tolerance, listed for outdoor enclosures or unheated industrial facility locations.

• Visual inspection should confirm the presence of conformal coating indicators on the printed circuit board assemblies.
• Labeling must clearly display the full part number 6AG1513-1FL02-2AB0 for accurate inventory and project documentation matching.
• Connector ports should be verified for physical integrity, ensuring PROFINET interfaces are undamaged prior to integration.
• Overall housing condition should be assessed for signs of previous environmental exposure or mechanical stress during transit.

• Review project documents to confirm the necessity of SIPLUS enhanced environmental protection for the intended application site.
• Verify that the 450 KB program memory and 1.5 MB data memory meet current control logic requirements.
• Check if the PROFINET IRT 2-port switch configuration aligns with existing network topology and bandwidth needs.
• Ensure that the Prod. Cancellation status does not conflict with long-term maintenance or expansion plans for the system.

• Confirm that the SIMATIC Memory Card requirement is addressed in the overall system design and inquiry preparation list.
• Assess the impact of the review restriction policy on future maintenance strategies and spare parts inventory planning.
• Validate that the operating temperature range matches the specific environmental conditions of the installation location accurately.
• Cross-reference the base model 6ES7513-1FL02-0AB0 specifications to understand the foundational capabilities enhanced by the SIPLUS modifications.
