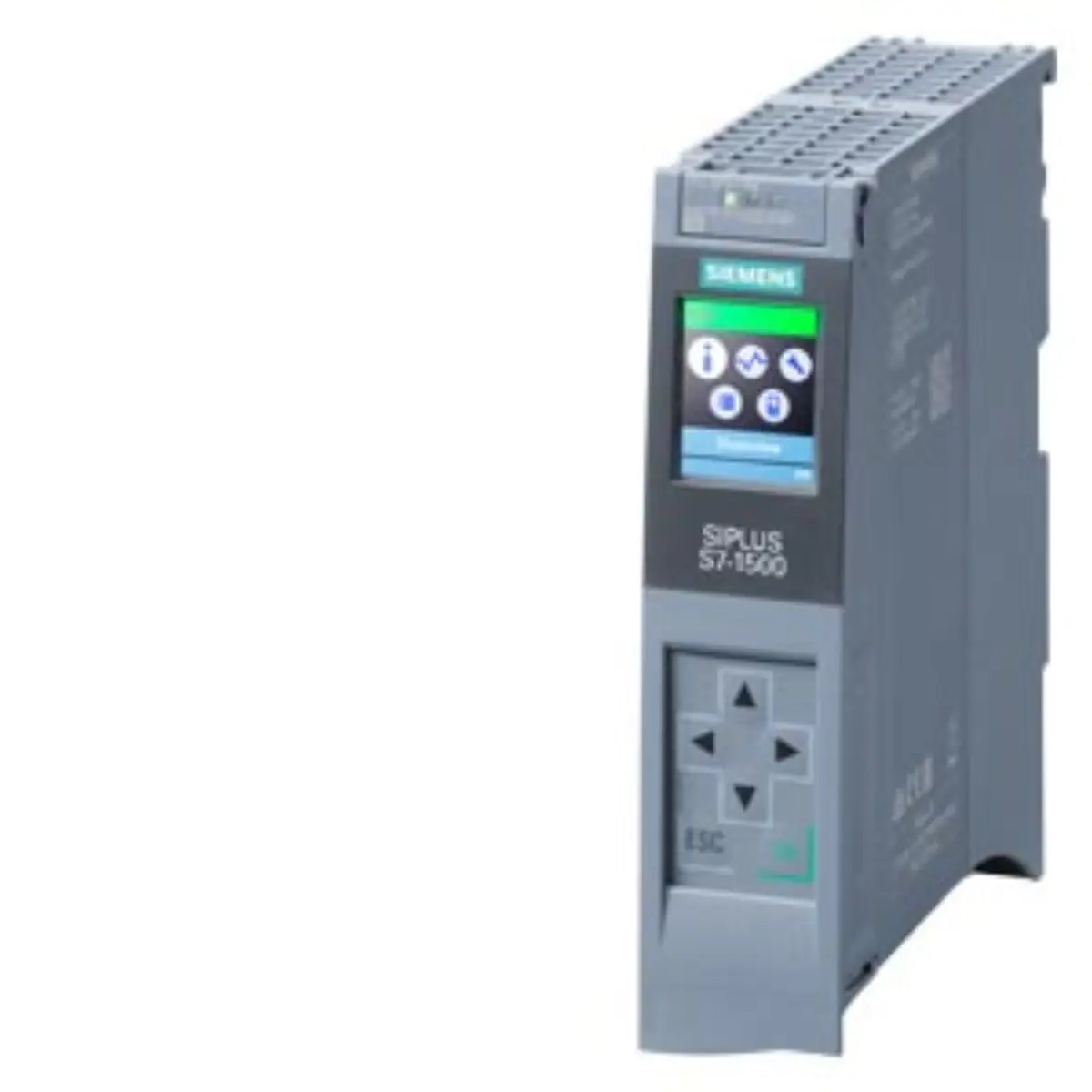

Inquiry for Siemens 6AG1513-1AL02-2AB0 Central Processing Unit

Part number

6AG1513-1AL02-2AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

15.00 x 15.00 x 4.3 cm

Net weight

0.462 Kg

• Central processing unit based on the 6ES7513-1AL02-0AB0 foundation with added environmental protections. Keep dimensions 15.00 x 15.00 x 4.3 cm and net weight 0.462 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating applied to circuit boards to resist moisture, dust, and corrosive substances effectively.
• Operational temperature range extends from -40°C to +60°C for extreme condition adaptability.
• Work memory capacity includes 300 KB for program storage and 1.5 MB for data handling.
• First interface utilizes PROFINET IRT technology featuring a two-port switch for network connectivity.
• Bit performance speed is recorded at 40 nanoseconds for rapid execution of control logic.

• The part number 6AG1513-1AL02-2AB0 identifies the specific SIPLUS variant of the S7-1500 series. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is distinct from the base 6ES7513-1AL02-0AB0 due to its enhanced environmental ratings.
• The suffix indicates the inclusion of conformal coating and extended temperature specifications for rugged use.
• Reference the spare part display code 6AG1591-1AB00-2AA0 for additional visual identification details.

Parameters are factual source fields retained for model review.

• Physical dimensions are listed as 15.00 cm in width, 15.00 cm in depth, and 4.3 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1513-1AL02-2AB0 record before publication.
• Net weight is recorded at 0.462 kg, which is relevant for mounting and logistics planning.
• Lifecycle status is noted as Production Cancellation, requiring careful consideration for future supply needs.
• Product class designation B indicates review restrictions, necessitating direct contact with Siemens representatives.
• Memory allocation specifies separate zones for program and data to optimize processing efficiency.

• Visual inspection should confirm the presence of the SIPLUS branding on the module housing.
• Check for any physical damage to the connectors, particularly the PROFINET interface ports.
• Verify that the label matches the part number 6AG1513-1AL02-2AB0 exactly before proceeding.
• Ensure the conformal coating appears intact without cracks or peeling on visible circuit areas.

• Gather all relevant project documentation specifying the required operating temperature and environmental conditions.
• Prepare a detailed list of integration points to ensure proper network configuration with existing systems.
• Note the production cancellation status when discussing long-term support and maintenance strategies.
• Include specific questions regarding the review note constraints associated with product class B items.

• Confirm that the memory card requirement is addressed in your system design documentation.
• Verify that the PROFINET IRT switch configuration meets your network bandwidth requirements.
• Assess the impact of the production cancellation on your overall project timeline and budget.
• Ensure all technical parameters align with the specific demands of your industrial application environment.
