Siemens 6AG1350-1AH03-2AE0 Counter Module Details

Part number

6AG1350-1AH03-2AE0

Brand

Siemens

Category

Sensors, Switching & Instrumentation

Product type

Sensors, Switching & Instrumentation

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.291 Kg

• Base hardware originates from the 6ES7350-1AH03-0AE0 model with added environmental protections for durability. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.291 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating ensures resistance against moisture, dust, and corrosive industrial atmospheres during operation.
• Operating temperature range spans from -25 degrees Celsius to +60 degrees Celsius continuously.
• Single channel design supports high-speed counting applications requiring precise measurement capabilities for encoders.
• Isochronous mode operation allows for synchronized data processing within automated control loops effectively.
• Configuration package is provided on CD-ROM to assist with initial setup procedures for users.

• Brand designation is clearly marked as Siemens for easy identification in inventory systems globally. Use the source path sensors-instrumentation to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product class indicates review restrictions requiring direct contact with documented Siemens review contacts for support.
• Lifecycle status is recorded as Prod. Cancellation, affecting long-term supply chain planning strategies.
• Normalized part number 6AG13501AH032AE0 serves as the primary reference for technical queries and reviews.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.00 cm in length, 15.00 cm in width, and 5.00 cm in height. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1350-1AH03-2AE0 record before publication.
• Net weight is listed as 0.291 Kg, which assists in logistics and handling calculations accurately.
• Counter frequency limit is specified at 500 kHz for the single supported channel operation.
• Encoder voltage inputs accept standard 5 V and 24 V signals for operational flexibility.
• Temperature tolerance covers a wide range from -25°C to +60°C for varied climate conditions.

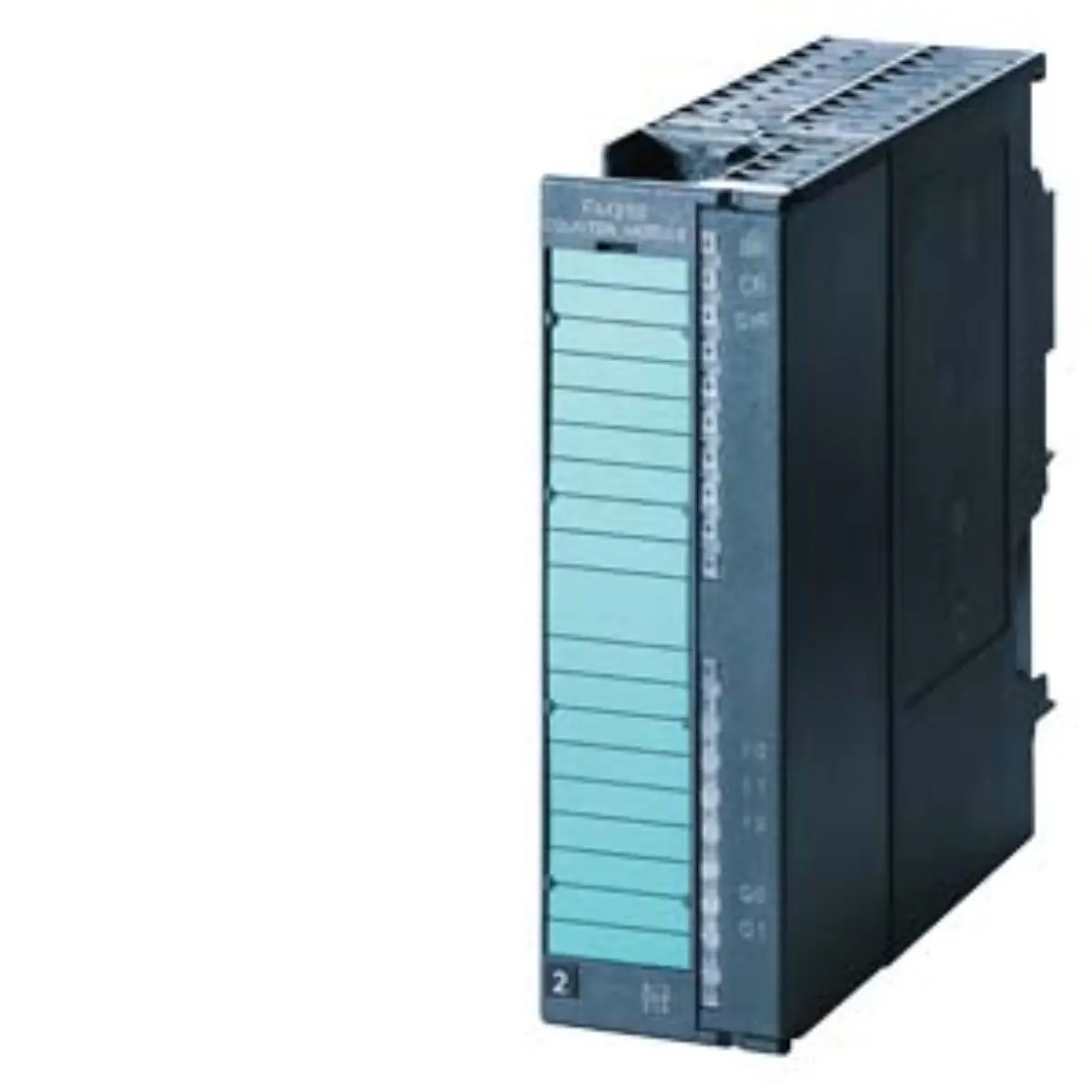

• Front view displays the module labeling and connection terminals for verification purposes during inspection. Review Siemens 6AG1350-1AH03-2AE0 as Sensors, Switching & Instrumentation with source category sensors-instrumentation, recorded lifecycle Prod. Cancellation, and submitted model identity.
• Side profile highlights the compact form factor listed for DIN rail mounting systems easily.
• Rear perspective shows the backplane connector interface essential for S7-300 rack integration processes.
• Label close-up confirms the full part number and Siemens branding for accuracy checks.

• Verify the required encoder voltage type before submitting technical specifications for detailed review.
• Confirm the ambient temperature conditions to ensure suitability for the specified operational range.
• Check project documentation for any specific configuration package requirements or necessary updates.
• Prepare detailed usage scenarios to facilitate accurate assessment by Siemens support teams efficiently.

• Source parameter review is recommended to validate technical specifications against specific project needs.
• Project document review helps identify any specific integration constraints or requirements early on.
• Contact your designated Siemens review contacts to discuss inquiry preparation options and support channels directly.
• Recorded under Prod. Cancellation status, so future review details should be confirmed directly with inquiry team.
