6AG1332-7ND02-4AB0 Siemens SIPLUS S7-300 Analog Output Module

Part number

6AG1332-7ND02-4AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 4.7 cm

Net weight

0.301 Kg

• This module provides four analog output channels with a resolution of 16 bits for precise signal control. Keep dimensions 13.00 x 15.00 x 4.7 cm and net weight 0.301 Kg unchanged while comparing project documents and product image evidence.
• Voltage outputs include ranges of 0-10 V, 1-5 V, and +/-10 V for versatile application support.
• Current output capabilities cover 0/4-20 mA and +/-20 mA standards for industrial sensor interfacing.
• Channel isolation ensures independent operation of each output, reducing interference in complex control systems.
• Operating temperature range is specified from 0 to +60 degrees Celsius for extended environmental tolerance.
• Physical dimensions are recorded as 13.00 x 15.00 x 4.7 cm with a net weight of 0.301 Kg.

• The base hardware corresponds to the 6ES7332-7ND02-0AB0 model with specific modifications for extreme conditions. Use the source path io-modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS branding indicates enhanced durability features listed for demanding industrial automation scenarios.
• Lifecycle status is listed as Production Cancellation, requiring careful review for new project implementations.
• Product classification B notes that review are restricted and direct review contacts contact is necessary.

Parameters are factual source fields retained for model review.

• Review the 20-pole connector interface requirements when planning physical installation and wiring connections. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1332-7ND02-4AB0 record before publication.
• Verify voltage and current range settings match your specific actuator or valve control needs.
• Check thermal management strategies to ensure operation remains within the 0 to +60 degree limit.
• Confirm isolation requirements align with your system ground references to prevent signal integrity issues.
• Assess the conformal coating benefits against your facility's humidity, dust, or chemical exposure levels.

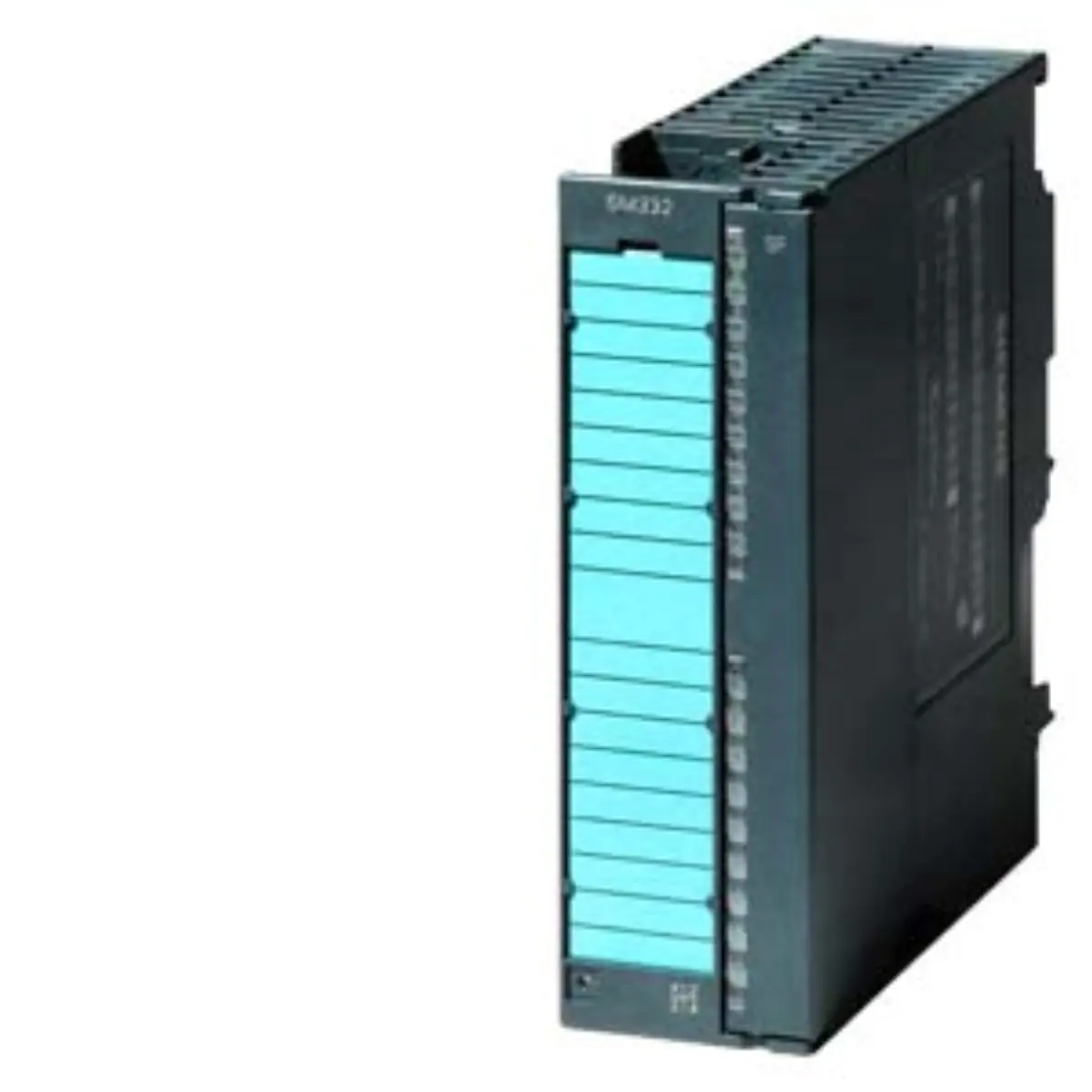

• Images typically display the front panel with terminal blocks and channel indicator lights clearly visible.
• Labeling on the module housing confirms the part number and Siemens branding for identification purposes.
• Side views may show the DIN rail mounting clips essential for standard rack installation procedures.
• Internal structure photos often highlight the conformal coating applied to the circuit board components.

• Prepare your project documentation specifying the required analog output types and signal ranges needed.
• Note the quantity required and any specific packaging or handling instructions for fragile electronic components.
• Include details about your operating environment to justify the need for SIPLUS enhanced protection.
• Provide contact information for technical discussions regarding the product class B review restrictions.

• Ensure all technical specifications are verified against your current system architecture before submission.
• Consider the production cancellation status when planning long-term maintenance and spare part strategies.
• Direct communication with Siemens review contacts is recommended for detailed logistical and technical clarifications.
• Maintain records of this inquiry for future reference during system upgrades or expansions.
