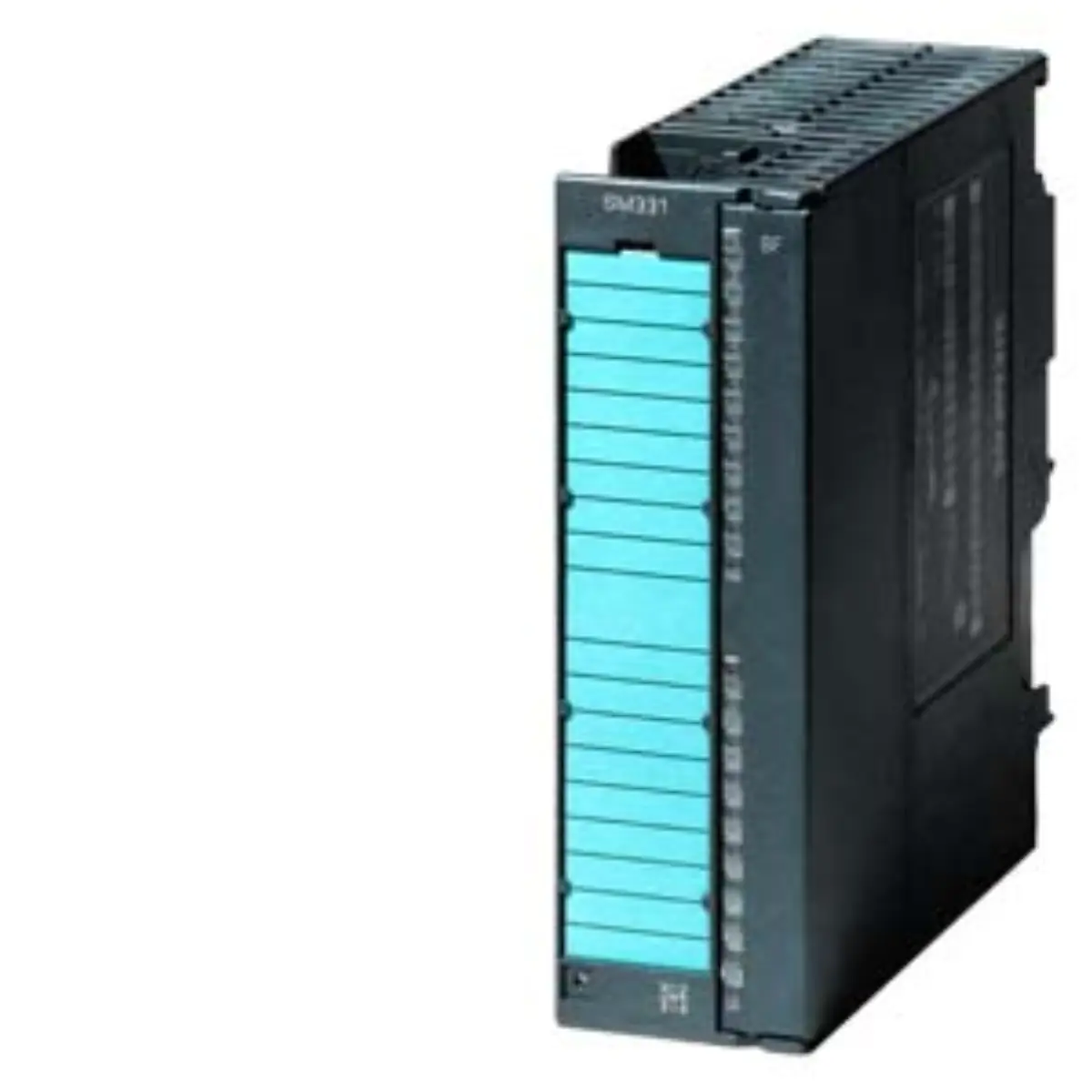

6AG1331-7PF11-4AB0 SIPLUS S7-300 Analog Input Module

Part number

6AG1331-7PF11-4AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.336 Kg

• The module provides eight analog input channels for signal processing. Each channel supports high-resolution data acquisition for critical process control tasks.
• It accepts thermocouple types B, E, J, K, L, N, R, S, and T. This wide range allows flexibility in sensor selection for diverse industrial needs.
• TXK and TXK (L) sensors according to GOST standards are supported. The system ensures accurate readings for specific regional equipment requirements.
• Resolution is recorded at 16 bits for each analog input channel. This precision level supports detailed monitoring and control of sensitive industrial processes.
• A conversion time of 50 milliseconds is listed for each channel. This speed facilitates timely data updates for real-time operational adjustments.
• The hardware utilizes a single 40-pole connector interface. This configuration simplifies wiring and integration within standard S7-300 rack architectures.

• The part number 6AG1331-7PF11-4AB0 identifies this specific SIPLUS variant. The prefix indicates its classification within the extended industrial product line.
• This model is derived from the base 6ES7331-7PF11-0AB0 structure. Modifications include specialized coatings for enhanced durability in demanding conditions.
• The lifecycle status is recorded as Production Cancellation. Buyers should verify current support options through documented Siemens channels for this discontinued item.
• Product class B indicates restricted review notes apply. Contacting a Siemens review contacts is necessary for handling review or exchanges for this unit.

Parameters are factual source fields retained for model review.

• Operating temperature range is specified from 0 to +60 degrees Celsius. This rating suits many indoor industrial control cabinet environments.
• Net weight is documented at 0.336 kilograms for shipping calculations. The compact mass reflects the dense electronic components within the housing.
• Physical dimensions are listed as 13.00 x 15.00 x 5.00 centimeters. These measurements assist in planning rack space and mounting configurations.
• Isolated analog inputs prevent ground loop interference in signals. This feature enhances signal integrity when connecting multiple sensors to the module.
• Conformal coating protects internal circuitry from environmental contaminants. This layer extends the operational lifespan of the module in challenging factory settings.

• Visual inspection should confirm the presence of the 40-pole connector. Ensure the connector pins are undamaged and free from corrosion.
• Check the label for the exact part number 6AG1331-7PF11-4AB0. Verify that the printed text matches the inquiry documentation precisely.
• Examine the housing for signs of physical damage or wear. The conformal coating should appear intact without peeling or significant discoloration.
• Confirm the module type matches the S7-300 series specifications. The form factor should align with standard DIN rail mounting requirements.

• Prepare project documents specifying the required quantity of modules. Include details about the intended application environment and operating conditions.
• List the specific thermocouple types needed for your sensors. This information helps confirm the module's suitability for your measurement tasks.
• Verify rack application context with existing S7-300 infrastructure. Ensure power supply and backplane bus connections meet the module's electrical requirements.
• Contact a Siemens review contacts for support regarding the cancellation status. Inquire about alternative sourcing options or refurbished units if necessary.

• Cross-reference the part number with documented Siemens documentation. Confirm all technical parameters match your project's specific engineering requirements.
• Assess the production cancellation status for long-term supply risks. Plan for potential future maintenance or spare part record strategies accordingly.
• Evaluate the environmental rating against your installation site conditions. Ensure the temperature and coating specifications meet your operational needs.
• Document all findings for internal technical review processes. Maintain records of the inquiry submission for future reference and audit trails.
