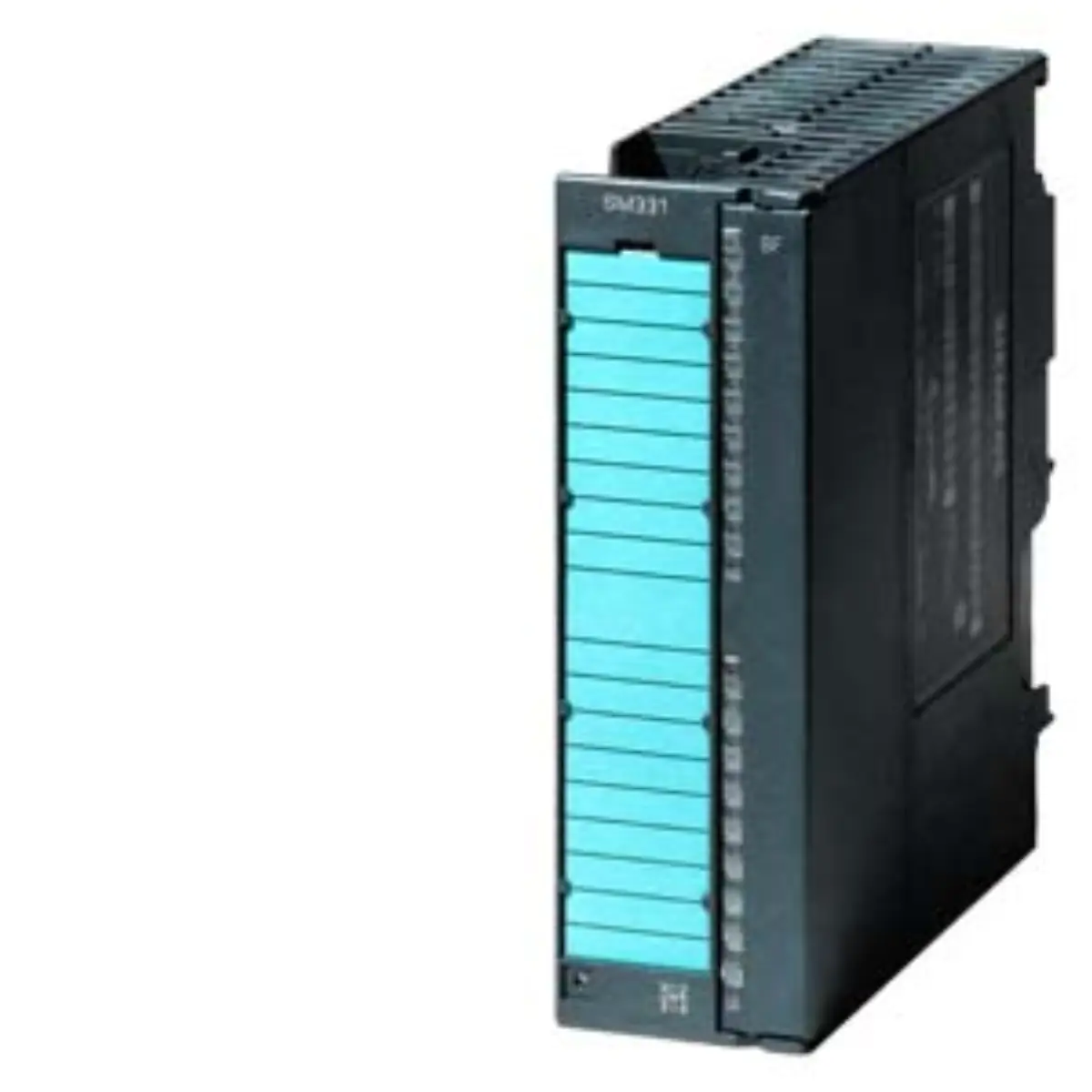

Siemens 6AG1331-7NF10-2AB0 Analog Input Module Details

Part number

6AG1331-7NF10-2AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.328 Kg

• The module utilizes a 40-pole connector interface for secure electrical connections within the S7-300 system architecture. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.328 Kg unchanged while comparing project documents and product image evidence.
• Input voltage ranges include plus or minus 5/10 volts and 1 to 5 volts for various sensor types.
• Current input capabilities cover plus or minus 20 mA and 0/4 to 20 mA standard industrial signals.
• Resolution is maintained at 16 bits per channel to ensure high precision in data conversion processes.
• Single-point grounding is implemented with a 60 V common limit for safety and noise reduction.
• Cycle times vary between 10 ms for four channels and 23 to 95 ms for full eight-channel operation.

• The part number 6AG1331-7NF10-2AB0 identifies the SIPLUS variant of the standard S7-300 series module. Use the source path io-modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The suffix indicates specific environmental hardening features compared to the base 6ES7331-7NF10-0AB0 model.
• This designation confirms the inclusion of conformal coating for durability in demanding operational conditions.
• Review the source documentation to verify the exact configuration matches your project requirements precisely.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.00 x 15.00 x 5.00 cm for space planning purposes. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1331-7NF10-2AB0 record before publication.
• The net weight is listed as 0.328 Kg, which aids in logistical handling calculations.
• The product lifecycle status is noted as Production Cancellation, requiring careful project timeline assessment.
• Signal isolation is a key feature, ensuring independent channel performance without cross-interference issues.
• Operating temperature range extends beyond standard industrial norms to accommodate extreme environmental scenarios.

• Inspect the physical labeling on the module front face for the complete part number verification.
• Check the connector pin layout to confirm alignment with existing rack mounting structures.
• Verify the presence of conformal coating on internal components if visual inspection is permitted.
• Ensure the housing integrity shows no signs of damage that could affect sealing performance.

• Gather your current system architecture diagrams to confirm application context with the S7-300 rack structure.
• Document the specific signal types and ranges required for each of the eight input channels.
• Note the environmental conditions of the installation site to justify the extended temperature rating.
• Prepare project timelines considering the production cancellation status for long-term supply chain planning.

• Confirm the voltage ratings match your power supply specifications before finalizing any technical review.
• Evaluate the cycle time requirements against your control loop speed needs for accuracy.
• Assess the grounding requirements to ensure proper installation and minimize electrical noise interference.
• Verify the dimensional constraints fit within your existing cabinet or rack space limitations.
