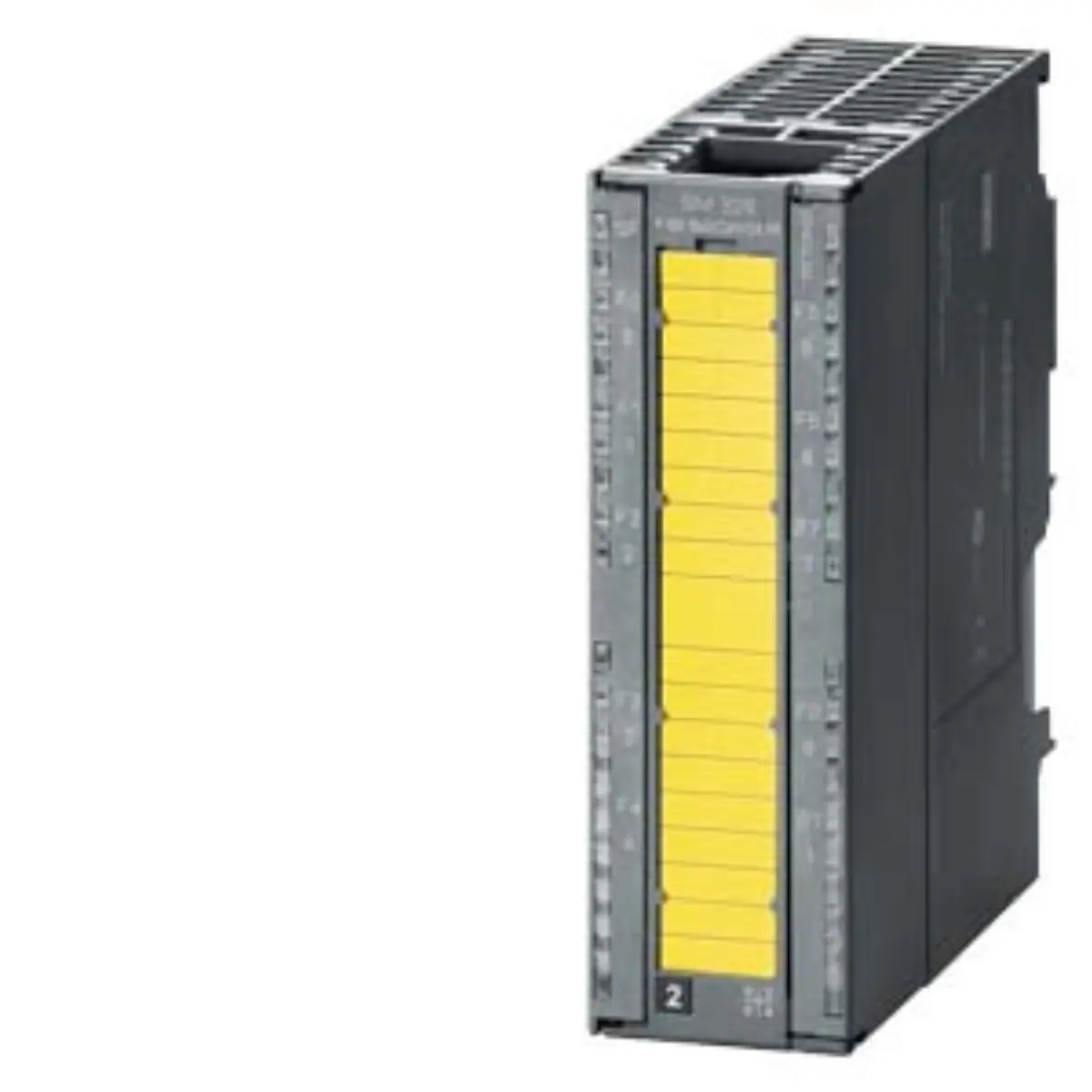

Inquiry for Siemens 6AG1326-2BF10-2AB0 Digital Output Module

Part number

6AG1326-2BF10-2AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.37 Kg

• The module provides digital output functionality rated at 24 V DC with a 2 A potential-free connection capacity. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.37 Kg unchanged while comparing project documents and product image evidence.
• It is designed as a fail-safe digital output specifically engineered for use with SIMATIC S7F safety systems.
• Diagnostic alarm capabilities are integrated to assist in monitoring system status and identifying potential operational anomalies.
• The device includes Low Voltage Limit (LVV) features to ensure stable operation under varying electrical conditions.
• Physical dimensions are listed as 13.00 x 15.00 x 5.00 cm with a net weight of 0.37 Kg.
• The hardware interface utilizes a single 40-pole connector configuration for secure and reliable signal transmission.

• The primary identifier is 6AG1326-2BF10-2AB0, which distinguishes this specific variant in the product catalog.
• This model is based on the foundational 6ES7326-2BF10-0AB0 architecture but includes modified environmental protections.
• The SIPLUS designation indicates enhanced durability features listed for extended temperature ranges and corrosive atmospheres.
• Lifecycle status is recorded as Production Cancellation, indicating the end of standard manufacturing cycles.

Parameters are factual source fields retained for model review.

• Operating temperature range is specified as -25°C to +60°C for standard convection cooling methods.
• Forced convection conditions allow operation up to 70°C when additional airflow is provided to the unit.
• Conformal coating is applied to protect internal circuitry from moisture, dust, and chemical exposure.
• The digital output type is classified as potential-free, ensuring isolation between control and load circuits.
• System integration requires verification against SIMATIC S7F safety logic programming standards and guidelines.

• Visual inspection should confirm the presence of the SIPLUS branding and full part number labeling.
• Check the 40-pole connector interface for any signs of physical damage or pin misalignment.
• Verify the condition of the conformal coating layer for uniformity and absence of cracks or peeling.
• Ensure the housing integrity remains intact with no visible corrosion or structural deformation on surfaces.

• Prepare project documents detailing the required operating temperature range and cooling method specifications clearly.
• Confirm that the target system utilizes SIMATIC S7F architecture to ensure logical application context requirements.
• Document the specific diagnostic alarm needs and Low Voltage Limit thresholds for the application scope.
• Include current installation constraints regarding the 13.00 x 15.00 x 5.00 cm form factor dimensions.

• Cross-reference the part number 6AG1326-2BF10-2AB0 with documented Siemens documentation for complete technical data sheets.
• Verify the production cancellation status impacts long-term supply chain planning and maintenance strategies significantly.
• Assess the need for conformal coating maintenance procedures during routine inspection and servicing intervals.
• Ensure all inquiry submissions include precise environmental parameters to validate the -25 to +60°C rating.
