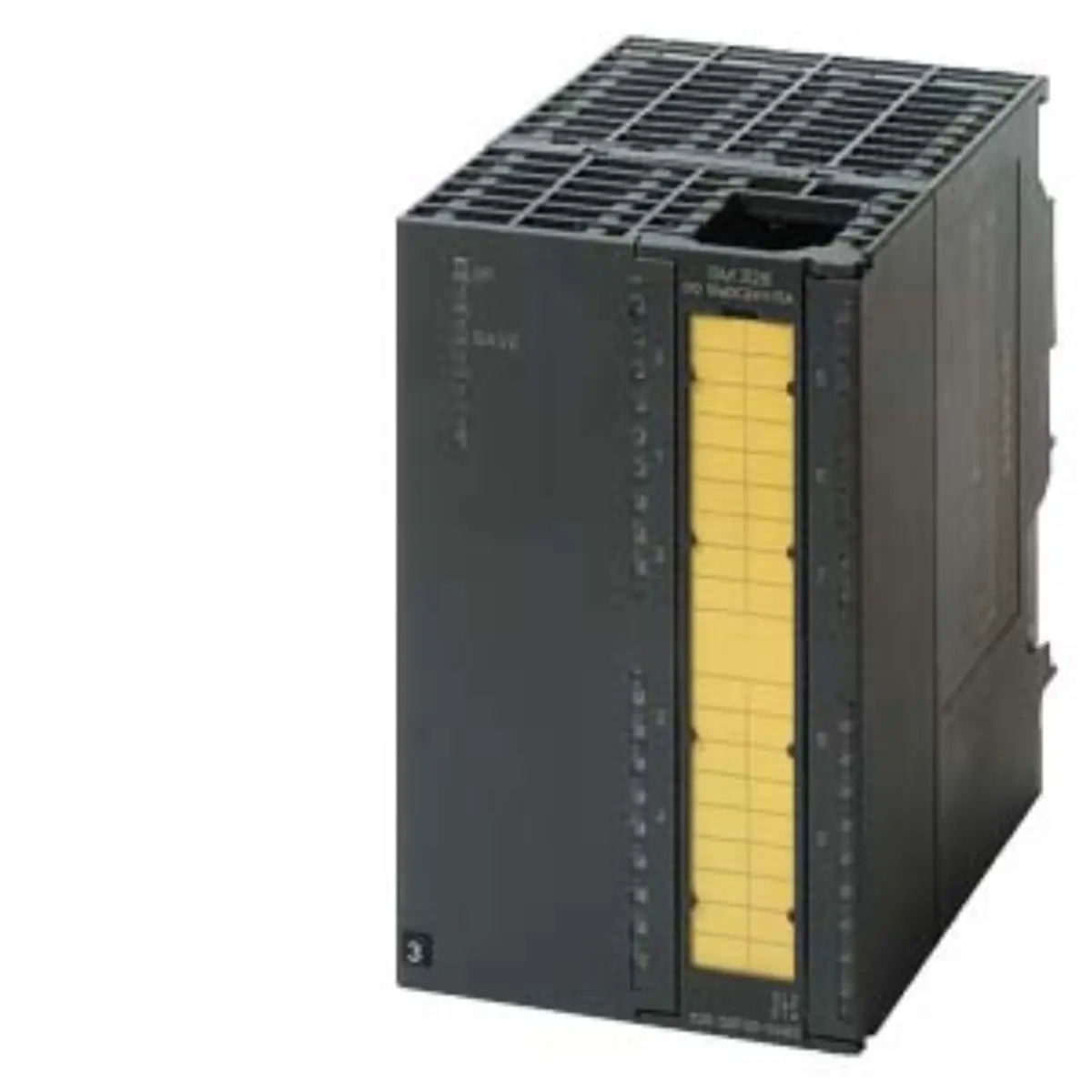

6AG1326-1BK02-2AB0 Siemens Digital Input Module

Part number

6AG1326-1BK02-2AB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 8.6 cm

Net weight

0.495 Kg

• This module functions as a fail-safe digital input for SIMATIC S7 F-systems, ensuring secure operation. Keep dimensions 13.00 x 15.00 x 8.6 cm and net weight 0.495 Kg unchanged while comparing project documents and product image evidence.
• It provides twenty-four discrete input channels operating at a standard voltage level of twenty-four volts DC.
• Conformal coating is applied to the circuitry to enhance resistance against moisture, dust, and chemical exposure.
• The operational temperature range extends from negative twenty-five degrees Celsius up to positive sixty degrees Celsius.
• Thermal performance is optimized using forced convection, allowing stable operation at ambient temperatures reaching seventy degrees Celsius.
• The physical footprint measures thirteen centimeters in width, fifteen centimeters in height, and eight point six centimeters in depth.

• The part number 6AG1326-1BK02-2AB0 identifies this specific variant based on the 6ES7326-1BK02-0AB0 platform.
• SIPLUS branding indicates enhanced environmental protection features beyond standard industrial automation module specifications.
• SM 326F designation refers to the specific family of digital input modules within the S7-300 architecture.
• The suffix AB0 distinguishes this particular configuration from other variants within the same product line.

Parameters are factual source fields retained for model review.

• Net weight is recorded at zero point four nine five kilograms for logistical and handling reference purposes.
• Diagnostic alarm capabilities are integrated to support immediate identification of input channel failures or anomalies.
• The forty-pole connector interface facilitates secure electrical connections for the extensive array of digital inputs.
• Fail-safe functionality ensures that safety protocols remain active even during specific fault conditions within the system.
• Dimensions are standardized to fit typical rack mounting configurations used in industrial control cabinet assemblies.

• Visual inspection should confirm the presence of the SIPLUS label and the full part number stamping.
• Check for intact conformal coating coverage on exposed circuit board areas to verify environmental protection integrity.
• Examine the connector pins for any signs of corrosion or physical damage prior to installation planning.
• Verify that the module housing shows no cracks or deformations that could compromise structural stability.

• Prepare project documents specifying the required quantity and intended application environment for accurate technical assessment.
• Include current system architecture details to ensure proper integration with existing SIMATIC S7 F-system components.
• Note any specific environmental challenges such as extreme humidity or chemical exposure for detailed evaluation.
• Provide contact information for technical support inquiries regarding lifecycle status and alternative sourcing options.

• Lifecycle status is listed as Production Cancellation, requiring careful consideration for new deployment projects.
• Source parameter review confirms the module meets the specified electrical and mechanical characteristics for S7-300 systems.
• Model identification verification ensures the correct variant is selected for fail-safe digital input applications.
• Technical summary analysis highlights the robust environmental protections listed for challenging industrial operating conditions.
