Siemens 6AG1322-1HF10-2AA0 Digital Output Module

Part number

6AG1322-1HF10-2AA0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.37 Kg

• Module type is recorded as a 40-pole digital output unit within the S7-300 series framework. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.37 Kg unchanged while comparing project documents and product image evidence.
• Operating temperature range is specified from minus 25 degrees Celsius up to plus 60 degrees Celsius.
• Output configuration includes eight isolated digital channels utilizing relay technology for electrical separation.
• Electrical ratings allow switching of loads at either 24 V DC or 230 V AC voltage levels.
• Current capacity per channel is listed as 5 Amperes for both direct current and alternating current options.
• Physical dimensions are noted as 13.00 by 15.00 by 5.00 centimeters with a net weight of 0.37 kilograms.

• Base hardware reference is identified as 6ES7322-1HF10-0AA0 for architectural comparison purposes. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates enhanced environmental protection through applied conformal coating processes.
• Lifecycle status is currently listed as Production Cancellation for inventory planning awareness.
• Connector application context notes reference plug models like 6ES7392-1BM01-0AA0 for assembly verification.

Parameters are factual source fields retained for model review.

• Voltage support spans low voltage 24 V DC systems and mains voltage 230 V AC circuits. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1322-1HF10-2AA0 record before publication.
• Relay isolation ensures safe operation between control logic and high-power output loads directly.
• Extended thermal tolerance allows reliable performance in environments exceeding standard industrial temperature limits significantly.
• Conformal coating protects internal circuitry against moisture, dust, and corrosive agents common in heavy industry.
• Single 40-pole interface simplifies wiring complexity while maintaining high channel density for compact panels.

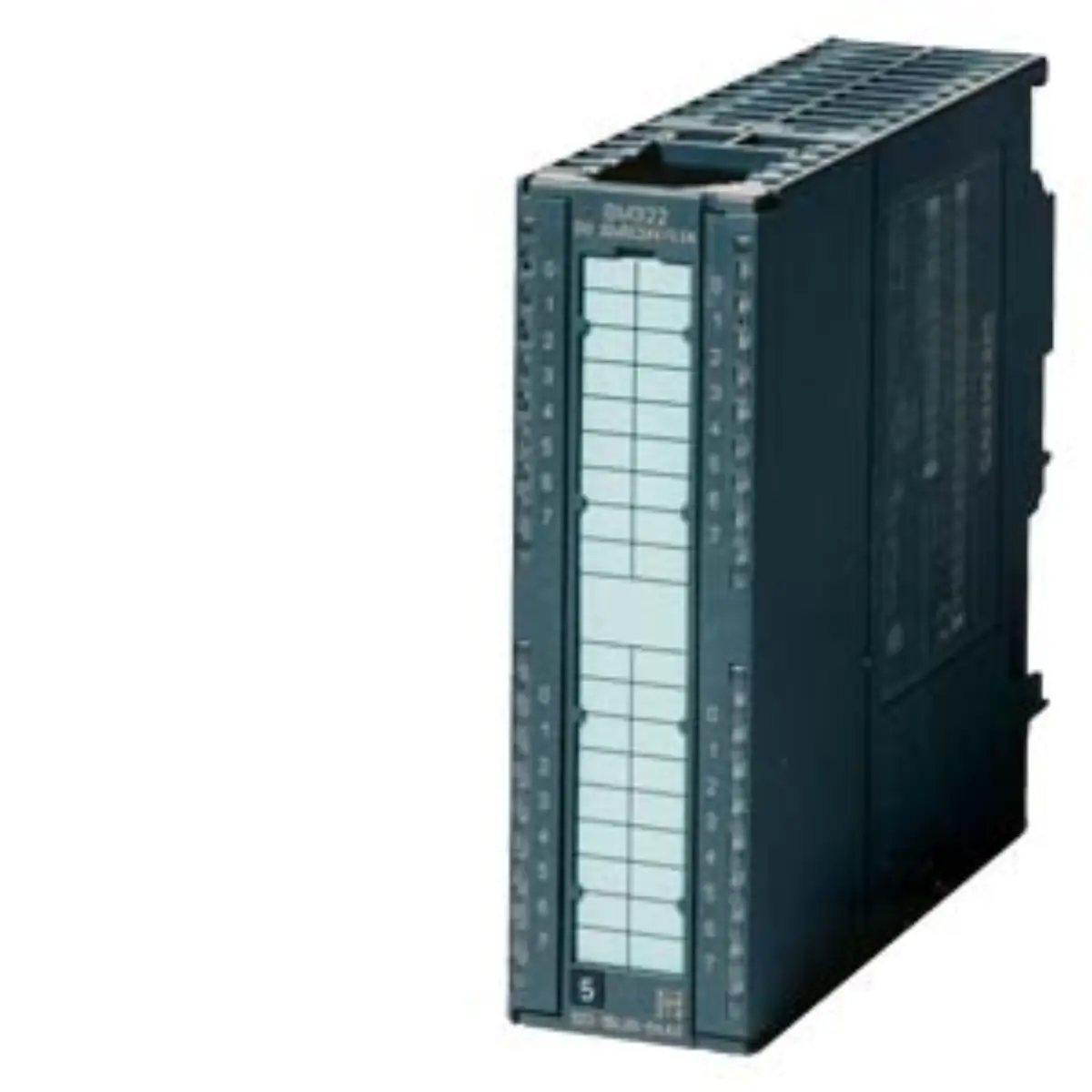

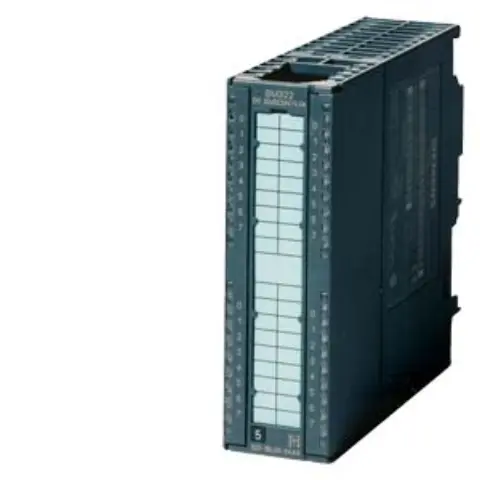

• Front view displays the 40-pole connector interface and terminal block layout clearly. Review Siemens 6AG1322-1HF10-2AA0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Prod. Cancellation, and submitted model identity.
• Side profile highlights the compact form factor listed for DIN rail mounting arrangements.
• Label area shows the full part number and SIPLUS branding for easy identification.
• Internal structure images may reveal the relay components and protective coating application details.

• Verify the required voltage rating matches your specific load requirements before submission.
• Confirm the operating environment temperature stays within the specified minus 25 to plus 60 degree range.
• Check if the base model 6ES7322-1HF10-0AA0 meets your functional needs without environmental upgrades.
• Ensure plug connectors like 6ES7392-1BM01-0AA0 are included in your assembly bill of materials.

• Cross-reference the part number carefully to avoid confusion with non-SIPLUS standard variants.
• Consider the production cancellation status when planning long-term maintenance and spare parts strategies.
• Validate physical dimensions against existing rack space to ensure proper mechanical fitment.
• Review electrical specifications thoroughly to confirm application context with your existing control system architecture.
