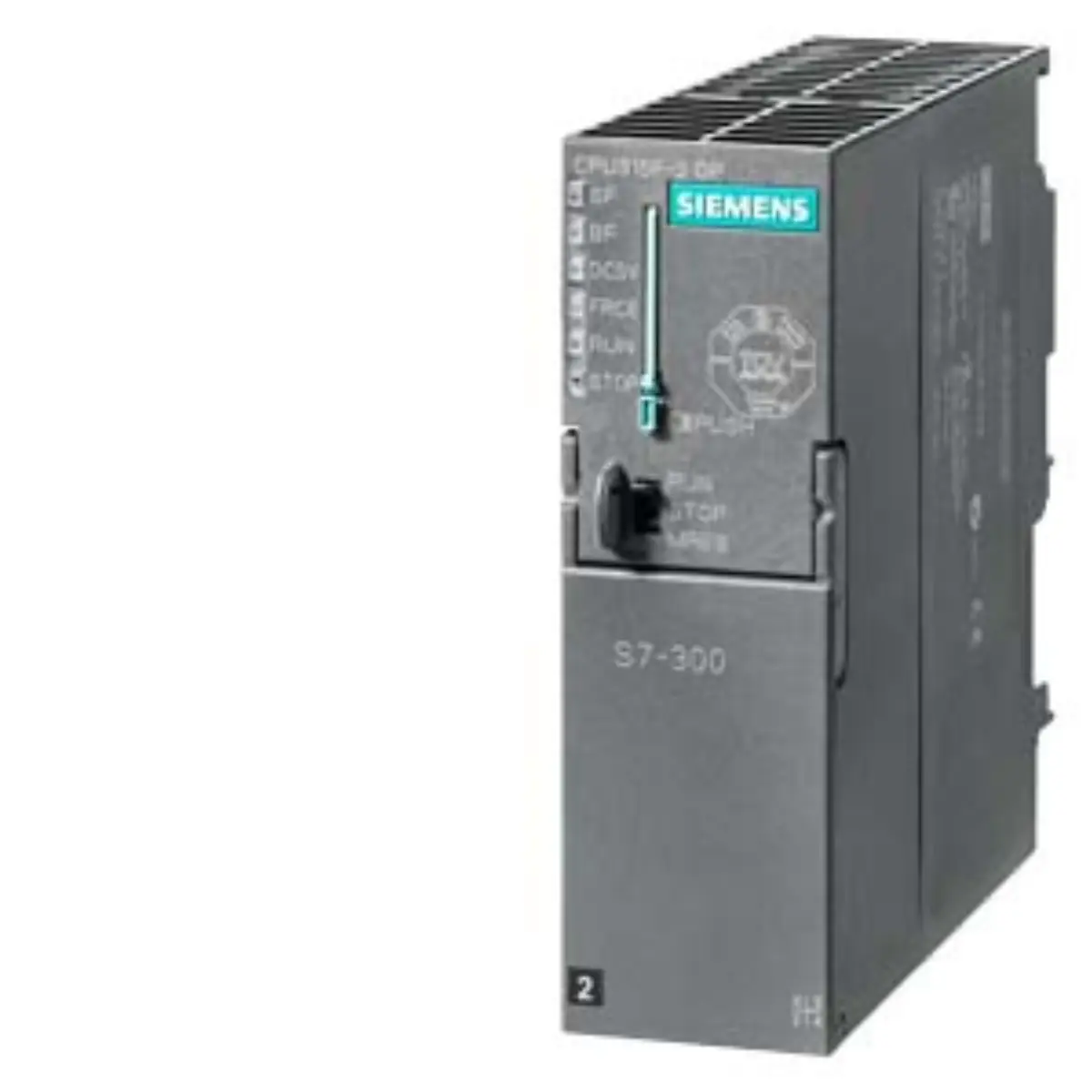

Siemens 6AG1315-6FF04-2AB0 Spare Part Inquiry

Part number

6AG1315-6FF04-2AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.344 Kg

• Based on the SIPLUS S7-300 CPU 315F-2DP architecture, this module integrates conformal coating for enhanced durability.
• The operational temperature range is specified as -25 to +60 degrees Celsius, supporting varied environmental conditions.
• Designed as a fail-safe module, it includes an integrated MPI interface with a 24 V DC power supply.
• The work memory capacity is listed at 384 KB, providing storage for program execution and data processing tasks.
• Physical dimensions are recorded as 13.00 x 15.00 x 5.00 cm, with a net weight of 0.344 Kg.
• A Micro Memory Card is required for operation, ensuring proper configuration and data retention during system processes.

• The primary identifier is 6AG1315-6FF04-2AB0, which distinguishes this variant from standard S7-300 series components.
• It is derived from the base model 6ES7315-6FF04-0AB0, incorporating additional features for harsh environment applications.
• The SIPLUS designation indicates specialized engineering for industrial environments, including protection against moisture and dust.
• The F-2DP suffix denotes fail-safe functionality combined with Profibus DP communication capabilities for network integration.

Parameters are factual source fields retained for model review.

• Width measurement is fixed at 40 mm, aligning with standard DIN rail mounting requirements for rack systems.
• Power supply specification requires a stable 24 V DC input, consistent with typical industrial control panel standards.
• Memory allocation of 384 KB supports complex logic operations necessary for safety-critical automation sequences.
• Environmental rating covers temperatures from -25°C to +60°C, allowing deployment in uncontrolled industrial settings.
• Communication interface utilizes MPI protocol, enabling connection to programming devices and other SIMATIC controllers.

• Visual inspection should confirm the presence of conformal coating on internal circuitry visible through openings.
• Labeling must clearly display the full part number 6AG1315-6FF04-2AB0 for accurate inventory and identification purposes.
• Connector ports should be examined for integrity, ensuring no physical damage affects signal transmission reliability.
• Mounting slots must align with standard 40 mm width specifications to fit existing rack infrastructure properly.

• Verify project requirements against the -25 to +60 °C operating range before submitting detailed specifications.
• Confirm that the 384 KB work memory meets the complexity demands of your intended control application.
• Ensure access to a Micro Memory Card is established, as it is mandatory for module initialization.
• Prepare documentation referencing the review restriction class B to facilitate communication with your Siemens contact point.

• The product lifecycle status is recorded as production cancellation, affecting long-term sourcing strategies for this item.
• review restrictions apply under class B, necessitating direct consultation with documented Siemens review contacts for handling.
• Technical parameters remain factual based on manufacturer data, serving as a reference for engineering reviews.
• All dimensions and weights are provided for logistical planning, ensuring proper storage and installation space allocation.
