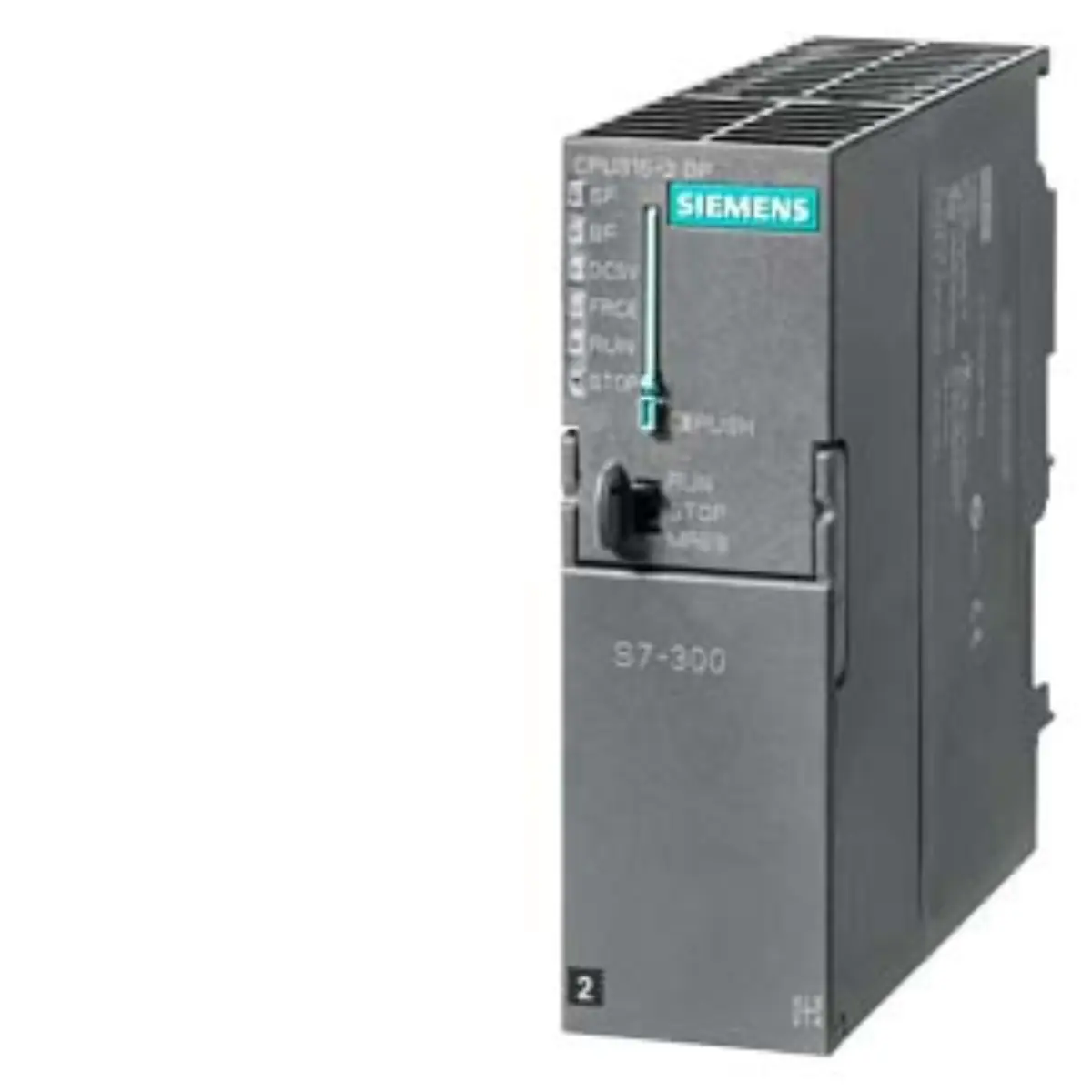

Siemens 6AG1315-2AH14-7AB0 CPU Specification Review

Part number

6AG1315-2AH14-7AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 5.00 cm

Net weight

0.361 Kg

• Base architecture derives from the 6ES7315-2AH14-0AB0 platform with enhanced environmental protections. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.361 Kg unchanged while comparing project documents and product image evidence.
• Conformal coating provides additional protection against moisture, dust, and corrosive agents in the field.
• Operating temperature range spans from -25°C to +70°C for extreme condition reliability.
• Integrated MPI interface allows for programming and diagnostic connections without additional hardware.
• Work memory capacity is recorded at 256 KB for program storage and execution tasks.
• Second interface functions as a DP master or device for PROFIBUS communication networks.

• Brand designation is clearly marked as Siemens within the industrial automation product portfolio. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification falls under the broader category of cables, connectors, and accessories.
• Lifecycle status is currently listed as Production Cancellation for this specific part number.
• Model variant includes SIPLUS branding indicating enhanced durability for severe operational environments.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 13.00 cm by 15.00 cm by 5.00 cm for mounting planning. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1315-2AH14-7AB0 record before publication.
• Net weight is specified at 0.361 Kg for logistics and handling calculations during installation.
• Power supply requirement is integrated as 24 V DC within the central processing unit.
• Memory configuration requires a Micro Memory Card for additional data storage and boot operations.
• Interface configuration includes both MPI and PROFIBUS DP capabilities for versatile network integration.

• Visual inspection should confirm the presence of conformal coating on internal circuit components. Review Siemens 6AG1315-2AH14-7AB0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Prod. Cancellation, and submitted model identity.
• Labeling must clearly display the full part number 6AG1315-2AH14-7AB0 for verification purposes.
• Connector ports should be checked for integrity, including MPI and DP interface slots.
• Overall housing condition needs assessment to ensure no physical damage affects operational safety.

• Verify project requirements for extended temperature ranges matching the -25 to +70°C specification. Keep dimensions 13.00 x 15.00 x 5.00 cm and net weight 0.361 Kg unchanged while comparing project documents and product image evidence.
• Confirm need for integrated MPI functionality versus separate communication modules for network design.
• Check if Micro Memory Card is included or needs separate inquiry preparation for system setup.
• Review existing S7-300 rack configurations to ensure mechanical and electrical application context with this CPU.

• Source parameter review indicates this unit is based on the 315-2DP platform.
• Lifecycle status suggests checking for alternative models if long-term supply is a concern.
• Technical documentation should be consulted for detailed pinouts and wiring diagrams for installation.
• Project document review is recommended to align specifications with current engineering standards.
