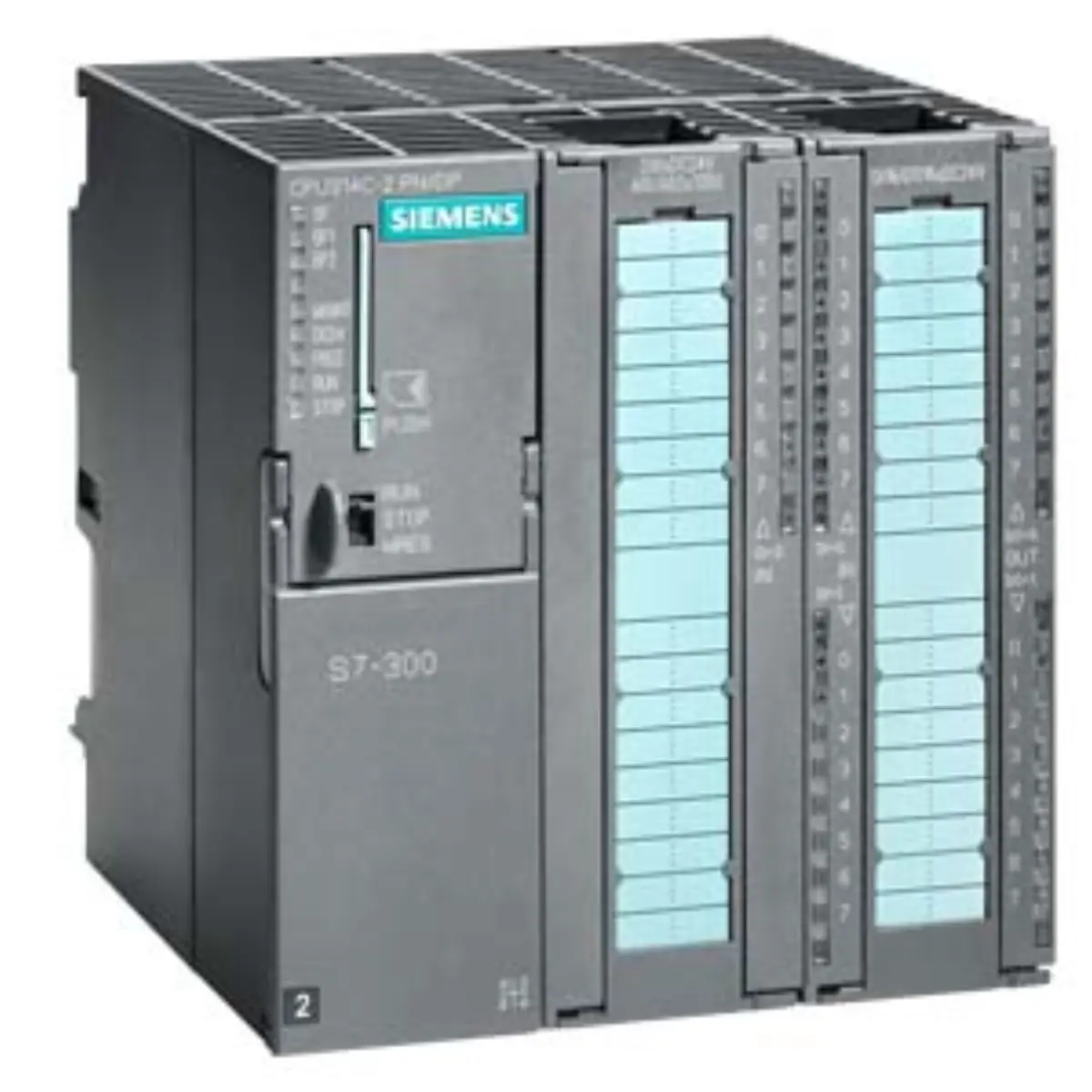

Inquiry for Siemens 6AG1314-6EH04-7AB0 CPU Module

Part number

6AG1314-6EH04-7AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 13.00 cm

Net weight

0.801 Kg

• Memory capacity is recorded at 192 KB for user work data storage. Keep dimensions 13.00 x 15.00 x 13.00 cm and net weight 0.801 Kg unchanged while comparing project documents and product image evidence.
• Digital inputs include 24 points while digital outputs provide 16 connection slots.
• Analog input channels are listed as four separate measurement interfaces for signals.
• Two analog output channels support precise control signal generation for actuators.
• One Pt100 temperature sensor interface allows direct connection for thermal monitoring.
• Four high-speed counters operate at 60 kHz for rapid event tracking tasks.

• Base model reference is identified as 6ES7314-6EH04-0AB0 in documentation. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates specialized environmental protection and extended temperature capabilities.
• Product lifecycle status is currently listed as Production Cancellation phase.
• Classification B notes indicate review restrictions requiring direct review contacts contact.

Parameters are factual source fields retained for model review.

• First communication interface supports MPI and PROFIBUS DP at 12 Mbps. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1314-6EH04-7AB0 record before publication.
• Second interface utilizes Ethernet technology with PROFINET protocol for network integration.
• Integrated two-port switch facilitates daisy-chaining connections within the automation setup.
• Power supply requirements are specified as 24 V DC for operation.
• Physical dimensions are recorded as 13.00 by 15.00 by 13.00 cm.

• Visual inspection should confirm the presence of front connector assemblies. Review Siemens 6AG1314-6EH04-7AB0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Prod. Cancellation, and submitted model identity.
• Two 40-pole connectors are required for proper module mounting and wiring.
• Micro Memory Card slot location must be verified during physical review.
• Conformal coating appearance can be checked for integrity on terminal blocks.

• Gather project requirements specifying the need for extended temperature operation ranges. Keep dimensions 13.00 x 15.00 x 13.00 cm and net weight 0.801 Kg unchanged while comparing project documents and product image evidence.
• Document the necessity for both MPI/DP and PROFINET communication interfaces.
• Verify that 24 DI and 16 DO points meet control logic needs.
• Confirm power supply review details matches the 24 V DC specification listed.

• Source parameter review confirms the part number matches the SIPLUS series. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1314-6EH04-7AB0 record before publication.
• Project document review should address the production cancellation lifecycle status noted.
• Technical specifications align with the compact CPU design for space-constrained panels.
• Contact your designated Siemens review contacts for further details regarding this model.
