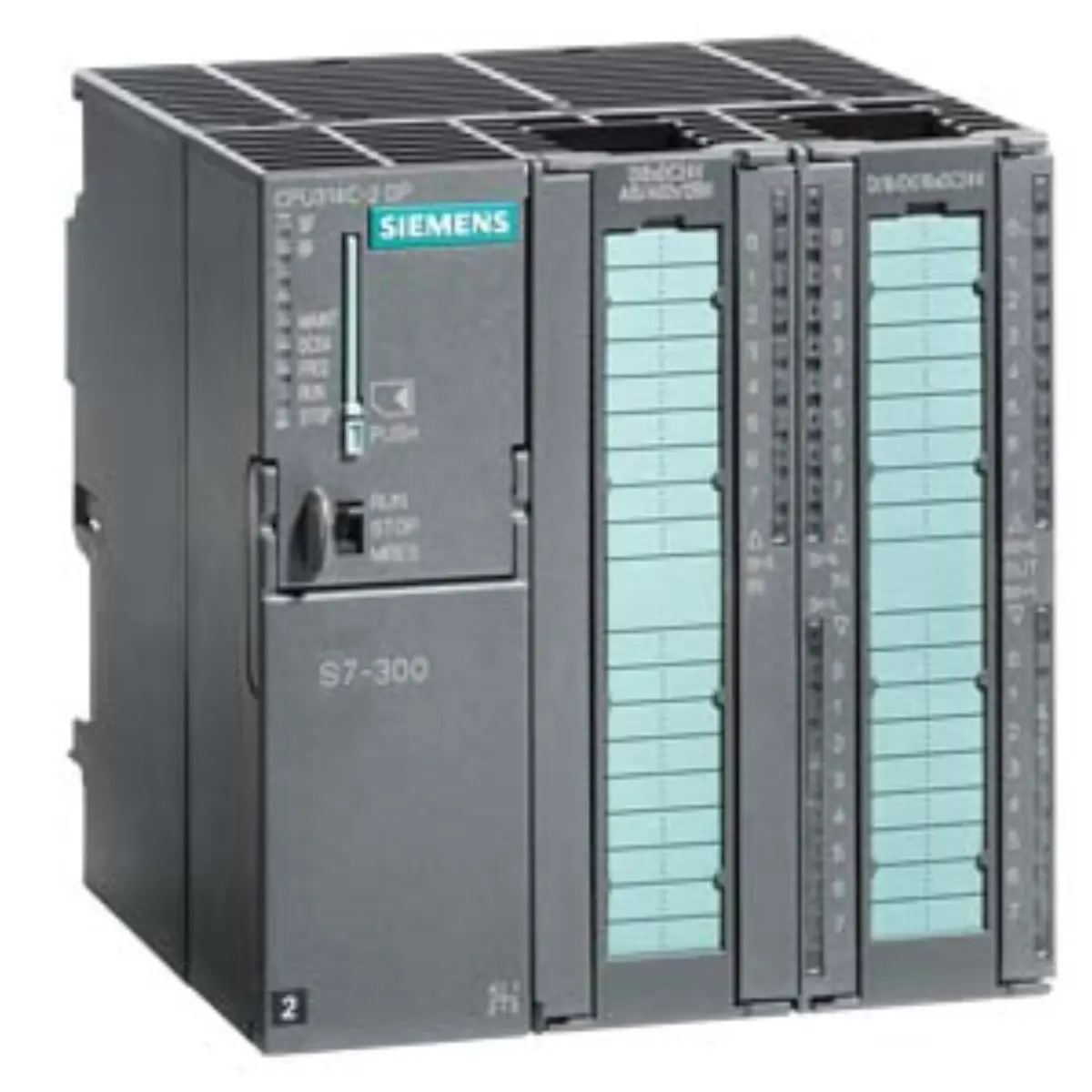

Siemens 6AG1314-6CH04-7AB0 Spare Part Specification Review

Part number

6AG1314-6CH04-7AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

13.00 x 15.00 x 13.00 cm

Net weight

0.765 Kg

• Operating temperature range spans from negative twenty-five degrees Celsius to positive seventy degrees Celsius. Keep dimensions 13.00 x 15.00 x 13.00 cm and net weight 0.765 Kg unchanged while comparing project documents and product image evidence.
• The module includes twenty-four digital inputs and sixteen digital outputs for direct signal processing.
• Four analog inputs and two analog outputs provide precise measurement and control signal handling.
• One platinum resistance thermometer input allows for accurate temperature monitoring in industrial processes.
• Four high-speed counters operate at sixty kilohertz for rapid event counting and position tracking.
• Integrated power supply delivers twenty-four volts DC to support connected peripheral devices efficiently.

• Base hardware reference corresponds to the 6ES7314-6CH04-0AB0 model configuration for identification purposes. Use the source path cables-connectors-accessories to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• SIPLUS designation indicates specific environmental hardening and extended durability features for harsh settings.
• Conformal coating application protects internal circuitry against moisture, dust, and corrosive atmospheric elements.
• Product lifecycle status is recorded as production cancellation requiring careful project planning and review.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as thirteen centimeters by fifteen centimeters by thirteen centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1314-6CH04-7AB0 record before publication.
• Net weight of the unit is listed as zero point seven six five kilograms.
• Work memory capacity stands at one hundred ninety-two kilobytes for program storage operations.
• Front connector requirements specify two forty-pole connections for modular expansion and signal routing.
• Micro Memory Card installation is necessary for additional data storage and configuration management.

• Visual inspection should confirm the presence of integrated PROFIBUS DP interface connectors. Review Siemens 6AG1314-6CH04-7AB0 as Cables, Connectors & Accessories with source category cables-connectors-accessories, recorded lifecycle Prod. Cancellation, and submitted model identity.
• Check labeling for the full part number and SIPLUS branding on the housing.
• Verify condition of the conformal coating layer on exposed electronic components and boards.
• Ensure front connector slots are clear and undamaged for proper module attachment alignment.

• Gather current project documentation specifying required operating temperatures and environmental exposure levels. Keep dimensions 13.00 x 15.00 x 13.00 cm and net weight 0.765 Kg unchanged while comparing project documents and product image evidence.
• Confirm existing S7-300 rack configuration application context with the compact CPU form factor.
• Prepare details regarding necessary Micro Memory Card capacity for your specific application needs.
• Document any special mounting or wiring requirements for the twenty-four volt DC supply.

• Verify that the inquiry includes all relevant technical constraints for the target environment.
• Note the production cancellation status when planning long-term maintenance and support strategies.
• Ensure contact information is accurate for direct communication regarding this specific model number.
• Reference the base model 6ES7314-6CH04-0AB0 when discussing underlying hardware specifications with experts.
