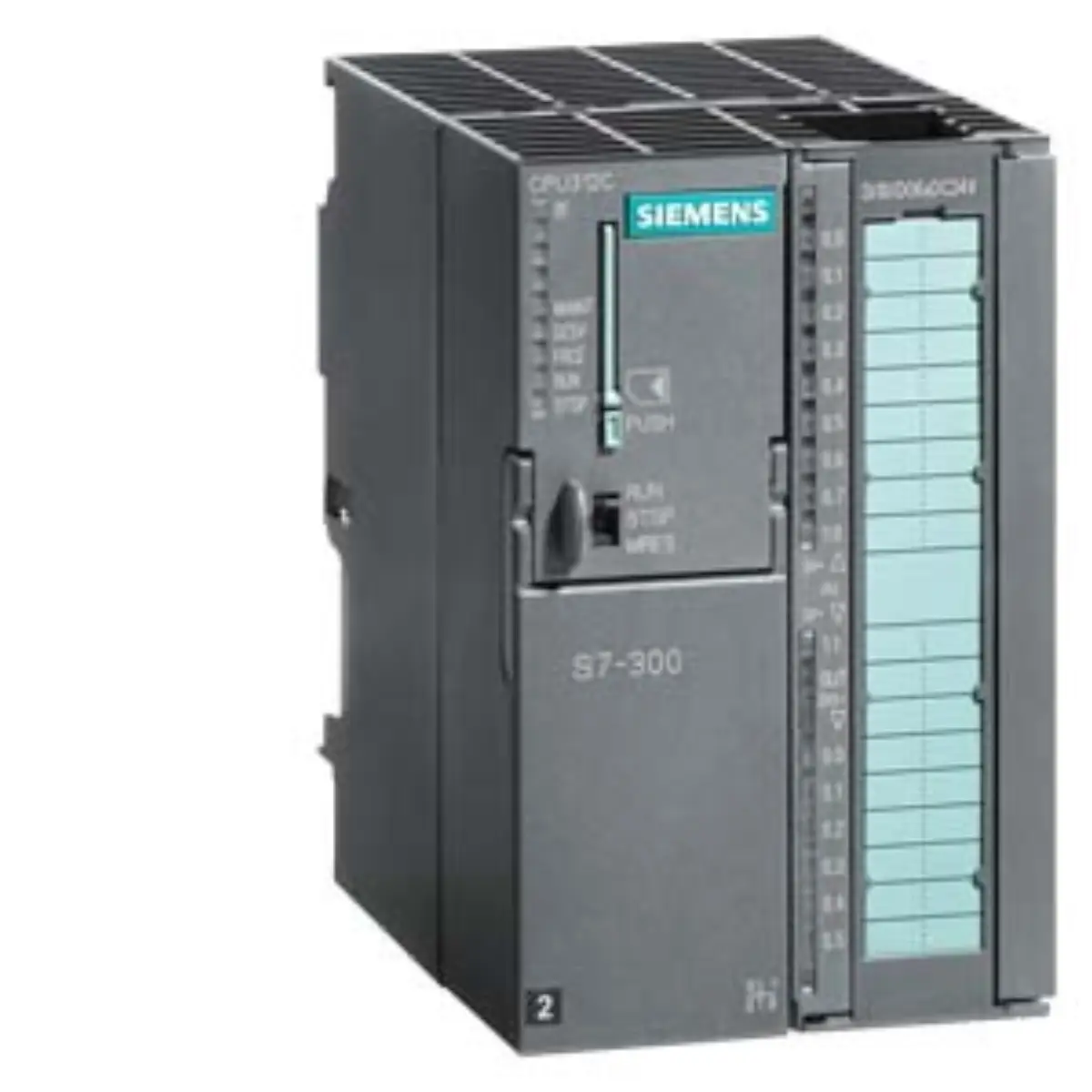

Inquiry for Siemens 6AG1312-5BF04-7AB0 Compact CPU

Part number

6AG1312-5BF04-7AB0

Brand

Siemens

Category

Cables, Connectors & Accessories

Product type

Cables, Connectors & Accessories

Lifecycle

Prod. Cancellation

Dimensions

15.5 x 13.2 x 9.4 cm

Net weight

0.47 Kg

• Based on the 6ES7312-5BF04-0AB0 platform, this unit incorporates conformal coating for improved environmental resistance and durability during operation.
• Operating within an extended temperature range of -25°C to +70°C ensures reliable performance in challenging industrial settings without external climate control.
• The integrated power supply operates at 24 V DC, providing stable energy distribution for connected components and peripheral devices within the rack.
• A work memory capacity of 64 KB allows for the storage of program blocks and data structures necessary for standard automation logic execution.
• The module features 10 digital inputs and 6 digital outputs, facilitating direct connection to sensors and actuators for immediate process control.
• Two integrated high-speed counters support frequencies up to 10 kHz, enabling precise tracking of rapid mechanical movements or pulse signals.

• The part number 6AG1312-5BF04-7AB0 identifies the specific configuration including the SIPLUS extension for harsh environment applications.
• Product classification indicates this item falls under review-restricted categories, requiring direct contact with designated Siemens representatives for handling procedures.
• Lifecycle status is recorded as Production Cancellation, meaning new manufacturing may cease while existing inventory remains subject to specific handling rules.
• The base model reference 6ES7312-5BF04-0AB0 serves as the foundational hardware platform upon which the specialized SIPLUS modifications are applied.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 15.5 x 13.2 x 9.4 cm, allowing for precise rack space planning and enclosure fitment assessments.
• Net weight is listed at 0.47 Kg, contributing to overall system mass calculations and transportation logistics for bulk inquiry preparation projects.
• The front connector specification requires a 1x 40-pole interface, ensuring standardized wiring practices and secure electrical connections for signal integrity.
• Micro Memory Card usage is noted as required for data retention, necessitating separate sourcing or verification of storage media application context.
• MPI integration is included within the CPU design, supporting multi-point interface communication for programming and diagnostic purposes during maintenance cycles.

• Visual inspection should confirm the presence of conformal coating indicators on the circuit board surface to verify environmental protection standards.
• Labeling on the front panel must clearly display the full part number 6AG1312-5BF04-7AB0 for accurate inventory and project matching.
• Connector ports should be examined for physical damage or corrosion, particularly around the 40-pole front interface and MPI communication port.
• Overall housing condition needs assessment to ensure no structural compromises exist that could affect mounting stability or thermal dissipation performance.

• Review project documentation to confirm if the extended temperature rating aligns with the specific environmental conditions of the installation site.
• Verify that the required Micro Memory Card type is recorded and meets the storage specifications for the target application logic.
• Assess the need for additional digital inputs or outputs beyond the integrated 10 DI and 6 DO configuration for scalability.
• Contact designated Siemens review contacts to understand current handling procedures for production cancellation items and review-restricted product classifications.

• All technical parameters listed are derived directly from manufacturer specifications and should be cross-referenced with documented project requirement documents.
• Users are advised to consult the source parameter review section for detailed dimensional and weight data relevant to mechanical integration.
• The inquiry process requires submission of specific project details to facilitate accurate technical support and handling guidance from documented channels.
• Final validation of application context and operational suitability must be performed by qualified engineering personnel before any system implementation decisions.
