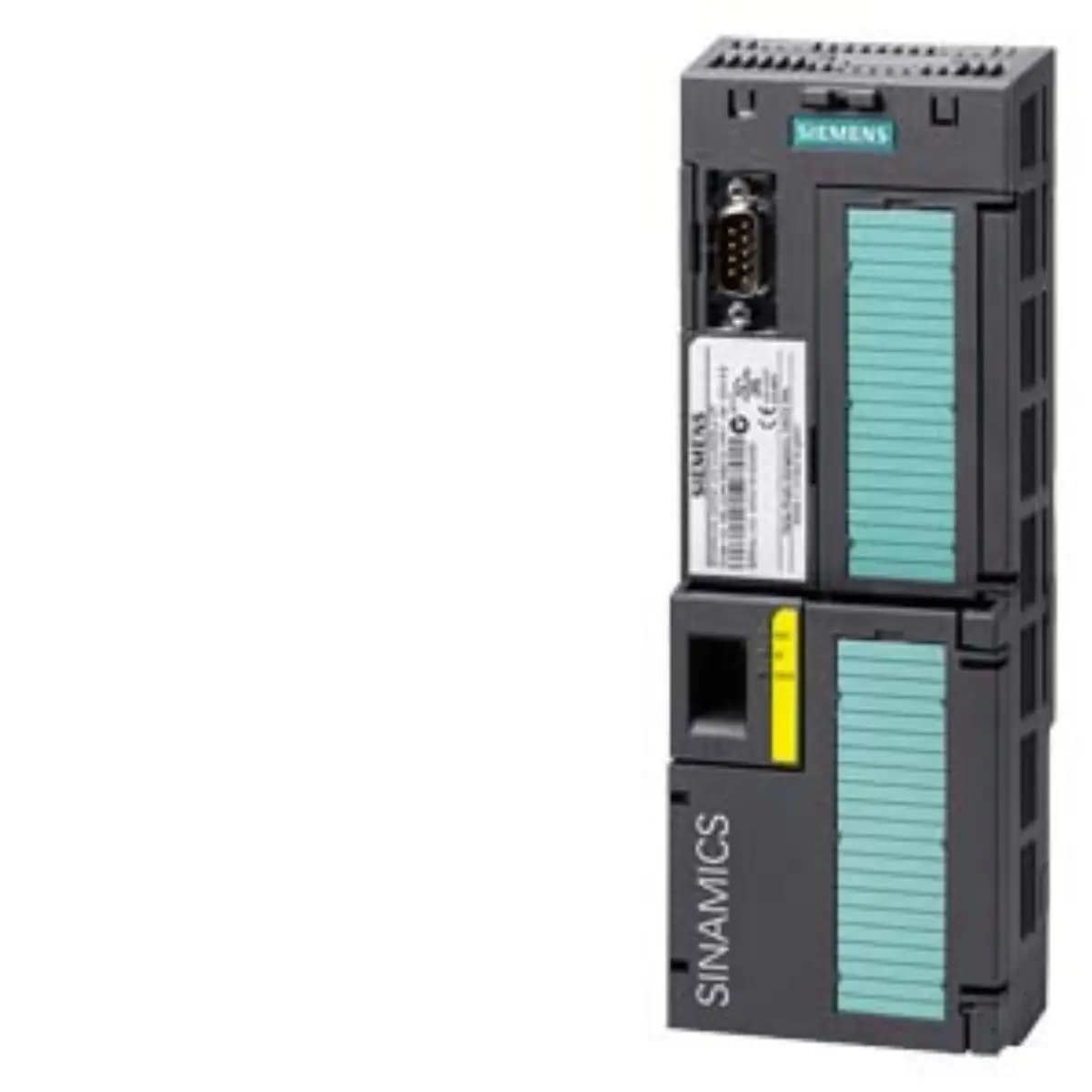

Siemens 6AG1244-0BB12-2PA1 Industrial Drive Component Inquiry

Part number

6AG1244-0BB12-2PA1

Brand

Siemens

Category

Drives & Motion

Product type

Drives & Motion

Lifecycle

Active Product

Dimensions

199.00 x 46.00 x 73.00 mm

Net weight

0.546 Kg

Source category

SIPLUS Control Units

• Physical dimensions are recorded as one hundred ninety-nine millimeters in width, forty-six millimeters in depth, and seventy-three millimeters in height for spatial planning.
• The net weight of the unit is listed at zero point five four six kilograms, facilitating easy handling and mounting within standard industrial enclosures.
• Communication capabilities include PROFIBUS DP interface support for reliable data exchange with central controllers in automated production lines and machinery setups.
• Digital inputs and outputs consist of six digital inputs and three digital outputs for direct signal processing and actuator control in various scenarios.
• Analog interfaces provide two analog inputs and two analog outputs for precise monitoring and adjustment of continuous process variables during operations.
• Safety Integrated STO functionality ensures safe torque off capabilities, meeting high safety standards for industrial machinery and personnel protection requirements.

• The base model for this unit is derived from the 6SL3244-0BB12-1PA1 configuration, adapted for extended environmental conditions.
• SIPLUS branding indicates enhanced durability features, including protective coatings listed for challenging industrial atmospheres and extreme operating temperatures.
• CU240E-2 DP E-type designation specifies the control unit variant with integrated digital and analog I/O capabilities for complex tasks.
• Lifecycle status is recorded as an active product, indicating ongoing support and review details for new project implementations and upgrades.
