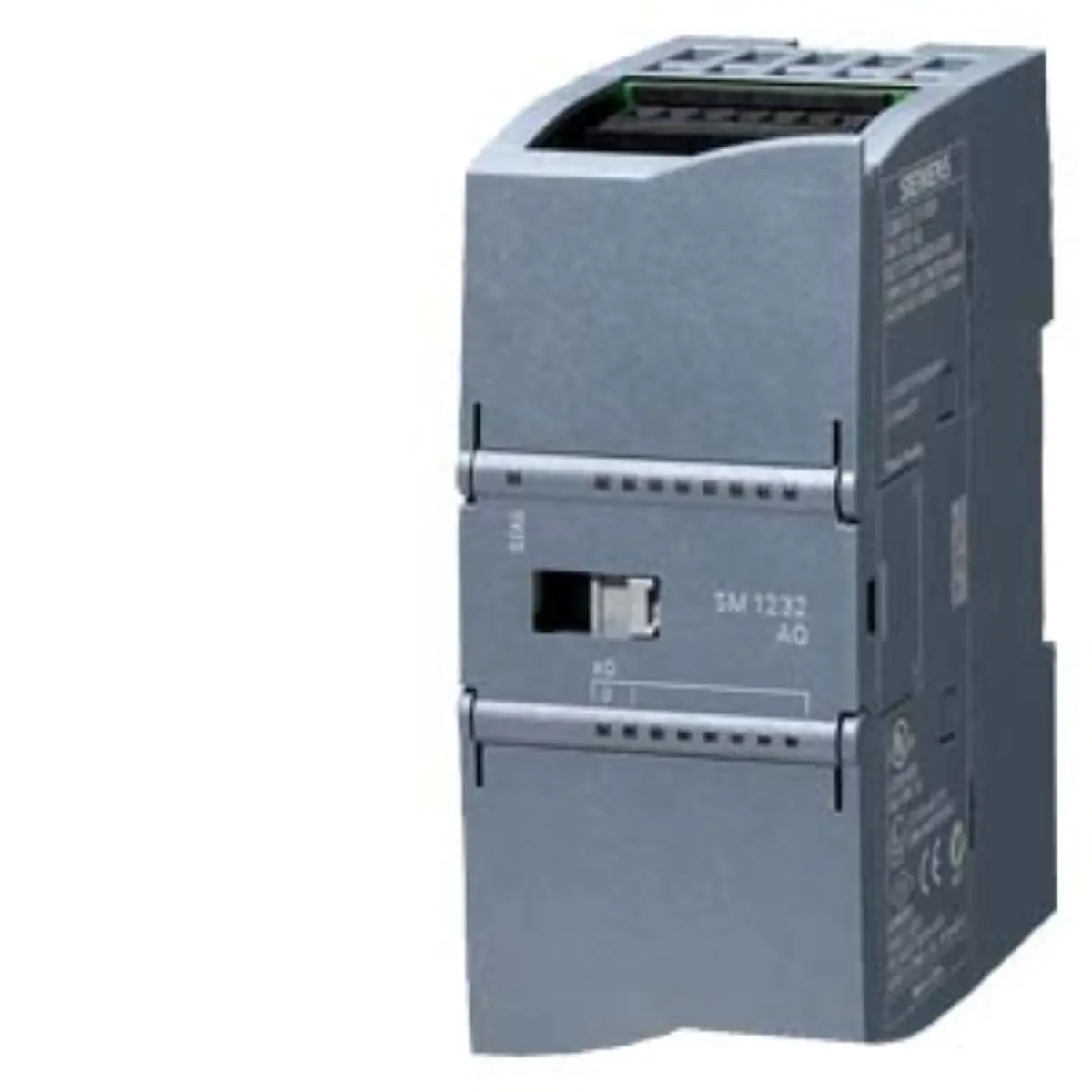

Siemens 6AG1232-4HD32-4XB0 Industrial Automation Component

Part number

6AG1232-4HD32-4XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.7 x 5.7 cm

Net weight

0.182 Kg

Source category

SIPLUS SM 1232 analog output modules

• This module provides four analog output channels for precise signal transmission. Each channel supports flexible voltage or current output configurations.
• The device operates within an extended temperature range of -20 to +60 degrees Celsius. This allows reliable performance in non-standard environmental settings.
• Voltage outputs utilize a range of plus or minus 10 volts with 14-bit resolution. Current outputs support 0 to 20 mA signals with 13-bit resolution.
• Physical dimensions are recorded at 10.5 by 8.7 by 5.7 centimeters. The net weight is listed as 0.182 kilograms for handling reference.
• Conformal coating is applied to protect internal circuitry from environmental stressors. This feature distinguishes it from standard indoor-only automation components.
• The lifecycle status is classified as an active product within the portfolio. Users can expect continued support and documentation review details for integration projects.

• The part number 6AG1232-4HD32-4XB0 identifies this specific SIPLUS variant. It is distinct from the standard 6ES7232-4HD32-0XB0 counterpart.
• The prefix 6AG indicates the broader SIMATIC S7-1200 automation technology group. This helps categorize the component within larger system architectures.
• The suffix XB0 denotes the specific configuration with extended environmental ratings. Review the submitted model to confirm exact hardware revisions.
• Source parameter review confirms alignment with SIPLUS SM 1232 specifications. Verify the conformal coating requirement during initial project planning stages.
