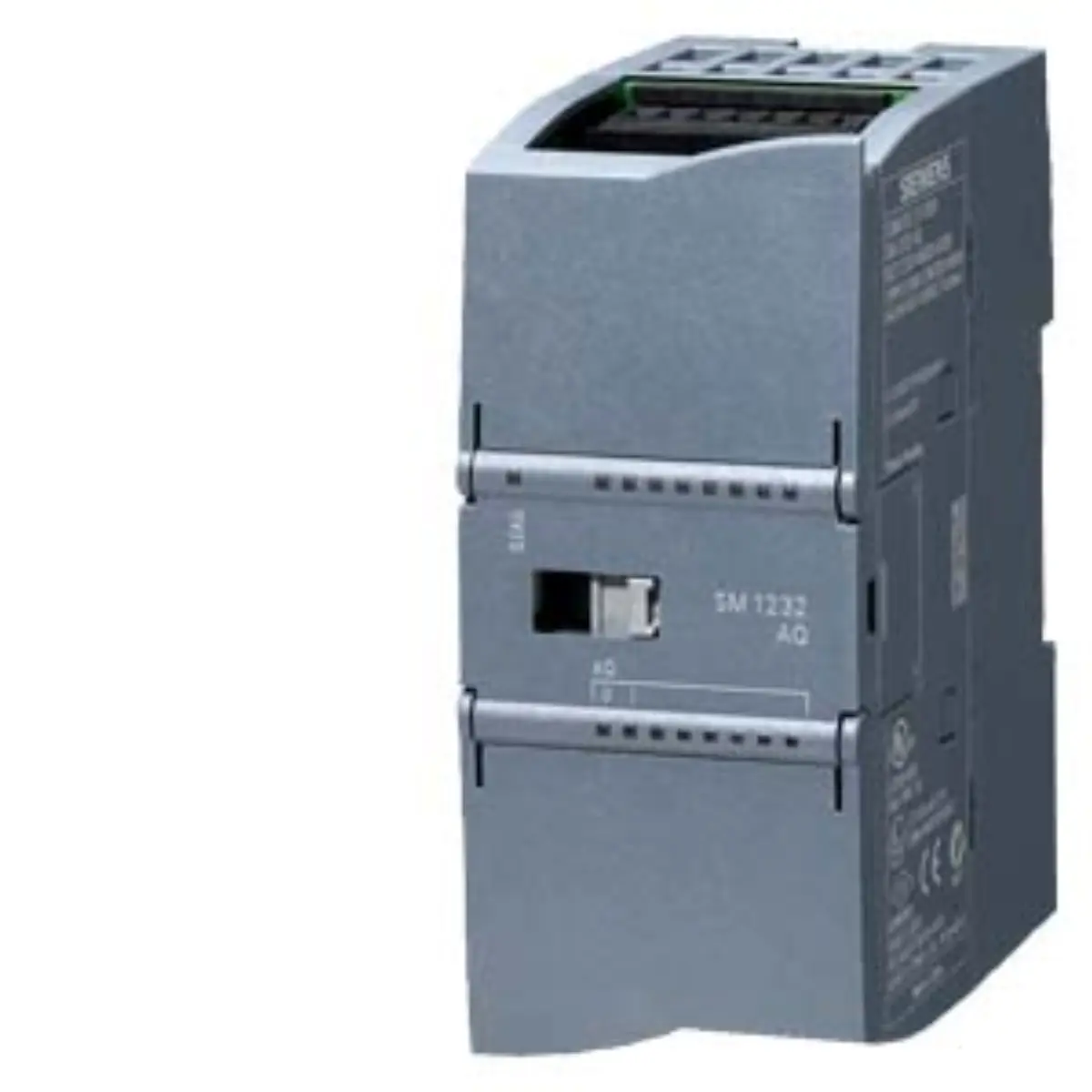

Siemens 6AG1232-4HD32-2XB0 Analog Output Module

Part number

6AG1232-4HD32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.8 x 6.00 cm

Net weight

0.179 Kg

Source category

SIPLUS SM 1232 analog output modules

• The device operates within a wide ambient temperature range of minus forty to plus seventy degrees Celsius.
• Startup functionality remains reliable at temperatures as low as minus twenty-five degrees Celsius during initial power cycles.
• Analog outputs support voltage signals with a precision of plus or minus ten volts and fourteen-bit resolution.
• Current signal transmission is supported with a range of zero to twenty milliamperes and thirteen-bit resolution.
• Conformal coating protects internal circuitry from moisture, dust, and corrosive agents found in harsh industrial settings.
• The physical dimensions measure ten point five by eight point eight by six point zero centimeters for compact integration.

• This specific part number denotes the SIPLUS variant built upon the base 6ES7232-4HD32-0XB0 architecture.
• The prefix 6AG indicates the component belongs to the SIMATIC S7-1200 automation technology product family.
• Model suffix 2XB0 identifies the extended environmental rating and protective coating specifications for this hardware unit.
• Classification as an analog output module confirms its role in converting digital control signals to continuous electrical outputs.

Parameters are factual source fields retained for model review.

• Record the net weight of zero point one seven nine kilograms when calculating shipping or mounting requirements.
• Verify the four analog output channels match the control logic requirements for your specific automation project design.
• Confirm that the fourteen-bit voltage resolution meets the accuracy standards for your connected actuator or sensor devices.
• Ensure the thirteen-bit current resolution aligns with the input sensitivity of the receiving industrial control equipment.
• Check that the operating temperature limits suit the environmental conditions present in the intended installation location.

• Inspect the front panel labeling to confirm the exact part number matches the six AG one two three two sequence.
• Examine the terminal block area for clear markings indicating channel assignments and voltage or current selection jumpers.
• Look for the distinctive SIPLUS branding which signifies the enhanced environmental protection features of this specific module.
• Verify the DIN rail mounting clip mechanism is intact and undamaged for secure installation in control cabinets.

• Gather your project specifications detailing the required analog output count and signal types for accurate comparison.
• Document the environmental conditions of the installation site to verify compliance with the extended temperature ratings.
• Prepare technical drawings showing recorded space constraints to ensure the module dimensions fit within the enclosure layout.
• List any specific interface requirements or communication protocols needed for integration with your existing S7-1200 system.

• Cross-reference the lifecycle status to confirm the product remains active for new project implementations and designs.
• Note the review restriction classification which requires direct contact with documented Siemens review contacts for handling procedures.
• Validate that the conformal coating specification meets the IP protection levels required for your specific industrial environment.
• Review the source parameter data to ensure all technical values align with your engineering documentation standards.
