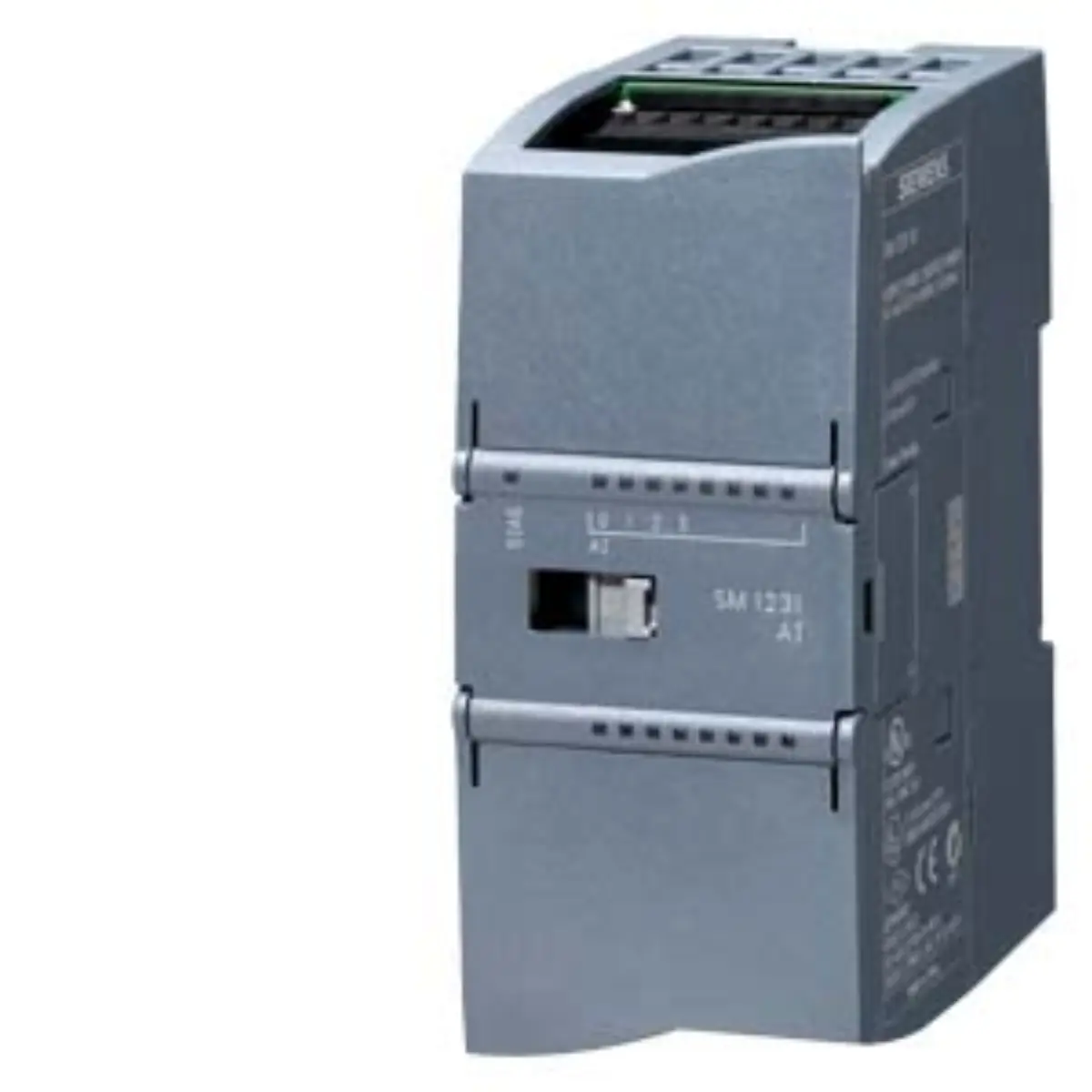

Siemens 6AG1231-5PD32-2XB0 SIPLUS SM 1231 RTD Signal Module

Part number

6AG1231-5PD32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.7 x 6.00 cm

Net weight

0.192 Kg

Source category

SIPLUS SM 1231 RTD signal module

• The module operates as an analog input device specifically configured for RTD signal processing. Keep dimensions 10.5 x 8.7 x 6.00 cm and net weight 0.192 Kg unchanged while comparing project documents and product image evidence.
• It accommodates four separate analog input channels for simultaneous temperature measurement tasks.
• Physical dimensions are recorded at 10.5 x 8.7 x 6.00 centimeters for integration planning.
• The net weight of the unit is listed as 0.192 kilograms for handling assessments.
• Operational temperature range spans from minus forty degrees Celsius to plus seventy degrees Celsius.
• Startup capability is maintained down to minus twenty-five degrees Celsius for cold environments.

• The part number 6AG1231-5PD32-2XB0 identifies this specific SIPLUS branded hardware configuration. Use the source path Automation technology / SIPLUS analog modules / SIPLUS SM 1231 RTD signal module to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• It is derived from the base model 6ES7231-5PD32-0XB0 with enhanced environmental protections.
• The SIPLUS designation indicates suitability for extreme ambient conditions beyond standard industrial norms.
• SM 1231 denotes the signal module class for analog inputs in the S7-1200 series.
