6AG1231-4HD32-4XB0 SIPLUS Analog Input Module Details

Part number

6AG1231-4HD32-4XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.8 x 5.7 cm

Net weight

0.161 Kg

Source category

SIPLUS SM 1231 analog input modules

• Four analog input channels provide versatile signal processing capabilities for various industrial sensors. Keep dimensions 10.5 x 8.8 x 5.7 cm and net weight 0.161 Kg unchanged while comparing project documents and product image evidence.
• Input voltage ranges include plus or minus ten volts, five volts, and two point five volts.
• Current input support covers zero to twenty milliampere signals for standard industrial applications.
• Resolution is specified as twelve bits plus a sign bit, totaling thirteen bits for accuracy.
• Conformal coating protects internal components from environmental factors like humidity and corrosive agents.
• Operating temperature range extends from negative twenty degrees Celsius up to positive sixty degrees Celsius.

• Part number 6AG1231-4HD32-4XB0 identifies this specific SIPLUS variant of the S7-1200 series. Use the source path Automation technology / SIPLUS analog modules / SIPLUS SM 1231 analog input modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• The base model reference is 6ES7231-4HD32-0XB0, indicating the underlying hardware platform used.
• SIPLUS designation confirms extended environmental ratings compared to standard SIMATIC S7-1200 modules.
• SM 1231 classification denotes it as an analog input module within the Siemens portfolio.

Parameters are factual source fields retained for model review.

• Net weight is recorded at zero point one six one kilograms for logistical planning purposes. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1231-4HD32-4XB0 record before publication.
• Physical dimensions are listed as ten point five by eight point eight by five point seven centimeters.
• Lifecycle status is documented as an Active Product, indicating ongoing manufacturing and support.
• Signal types supported include both voltage and current inputs for flexible sensor integration.
• ADC resolution of thirteen bits ensures precise data acquisition for critical control processes.

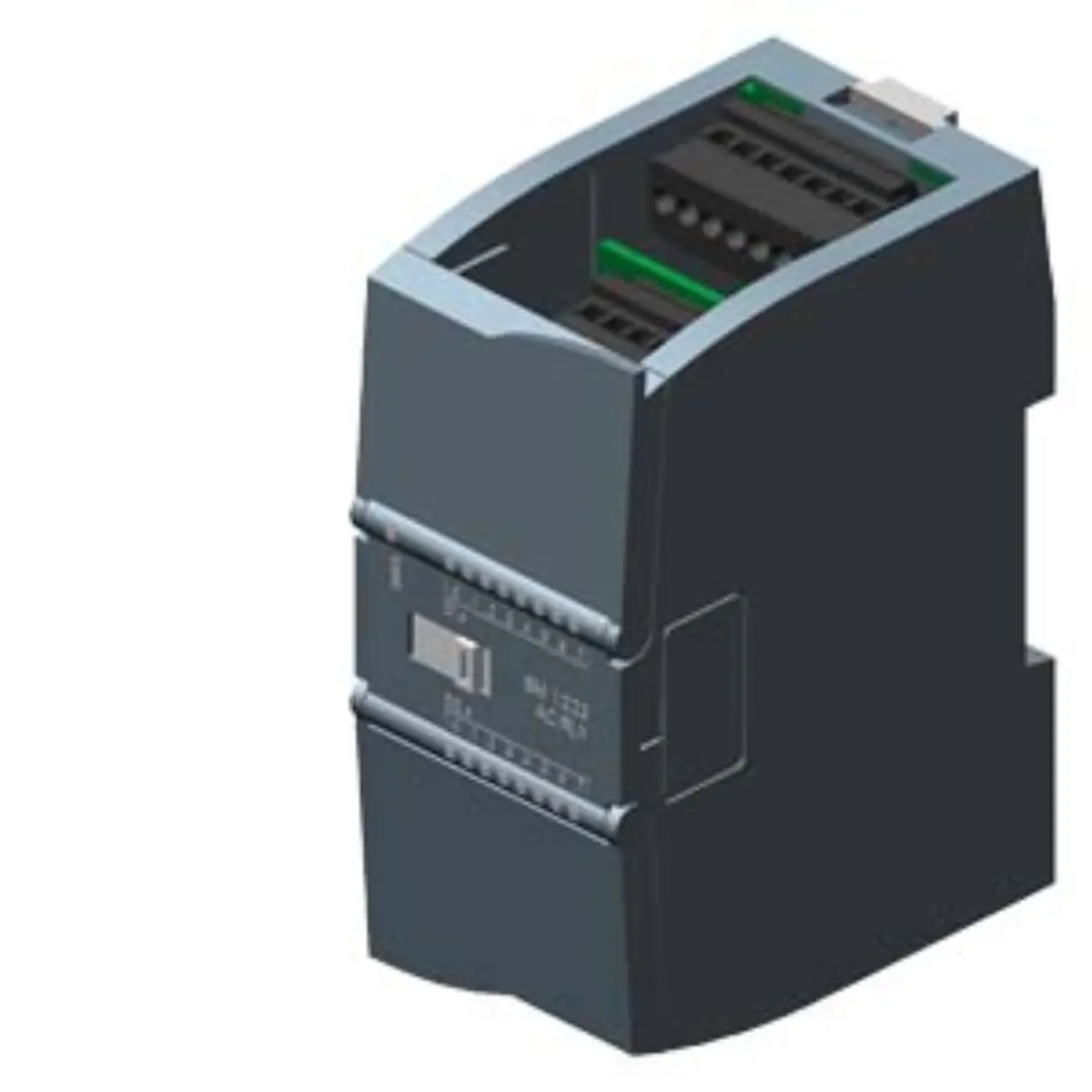

• Product images typically show the front panel with terminal blocks for wiring connections. Review Siemens 6AG1231-4HD32-4XB0 as I/O Modules with source category SIPLUS SM 1231 analog input modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling includes the full part number for easy identification during installation and maintenance.
• Visual inspection should confirm the presence of conformal coating on internal circuit boards.
• Module housing appears robust, designed to withstand demanding industrial operating conditions effectively.

• Verify the required input signal type matches the module's voltage or current specifications. Keep dimensions 10.5 x 8.8 x 5.7 cm and net weight 0.161 Kg unchanged while comparing project documents and product image evidence.
• Confirm ambient temperature conditions fall within the stated negative twenty to positive sixty range.
• Check physical space constraints against the module dimensions for proper rack or rail mounting.
• Ensure project documentation references the correct part number for accurate technical evaluation.

• Cross-reference technical data with project requirements before submitting an inquiry request.
• Consult engineering guidelines for proper wiring and grounding of analog input signals.
• Review manufacturer documentation for detailed installation procedures and maintenance recommendations.
• Validate environmental ratings against site conditions to ensure reliable long-term operation.
