Siemens 6AG1226-6DA32-5XB0 SIPLUS SM 1226 Fail-Safe Digital Output

Part number

6AG1226-6DA32-5XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.7 x 8.5 x 9.00 cm

Net weight

0.27 Kg

Source category

SIPLUS SM 1226 fail-safe digital output

• This module features four fail-safe digital outputs rated for DC 24V at 2A per channel, ensuring precise control over safety-critical actuators.
• It supports PROFIsafe protocol, allowing safe communication over standard PROFINET networks while maintaining integrity and monitoring of safety signals.
• The physical dimensions are recorded as 10.7 x 8.5 x 9.00 cm, with a net weight of 0.27 Kg, facilitating easy integration into existing rack systems.
• Operational reliability is maintained within an extended ambient temperature range of -25°C to +55°C, thanks to the protective conformal coating application.
• Safety performance aligns with PL e according to ISO 13849-1 standards and achieves SIL3 classification under IEC 61508 for high-risk environments.
• The module width is specified at 70 mm, allowing for compact mounting configurations without compromising the necessary safety isolation and protection levels.

• The part number 6AG1226-6DA32-5XB0 uniquely identifies this SIPLUS version, distinguishing it from standard S7-1200 modules through its environmental hardening.
• This model is derived from the base part 6ES7226-6DA32-0XB0, incorporating additional protective measures for use in harsh industrial settings.
• The SIPLUS designation indicates that the device has undergone specific testing and modification to meet extended environmental and mechanical stress criteria.
• Review the submitted model against project documentation to confirm that the fail-safe digital output configuration matches your safety system requirements.

Parameters are factual source fields retained for model review.

• Source parameter review confirms the output type as fail-safe digital, providing two-channel monitoring for each of the four output points.
• The electrical rating of DC 24V with 2A capacity per channel is consistent with standard industrial safety relay and actuator interfaces.
• Dimensional data listed as 10.7 x 8.5 x 9.00 cm should be verified against panel cutout specifications during the planning phase.
• Weight information recorded at 0.27 Kg assists in calculating load distribution for DIN rail mounting structures in control cabinets.
• Temperature range specification of -25...+55 °C requires assessment of local environmental conditions to ensure compliance with operational limits.

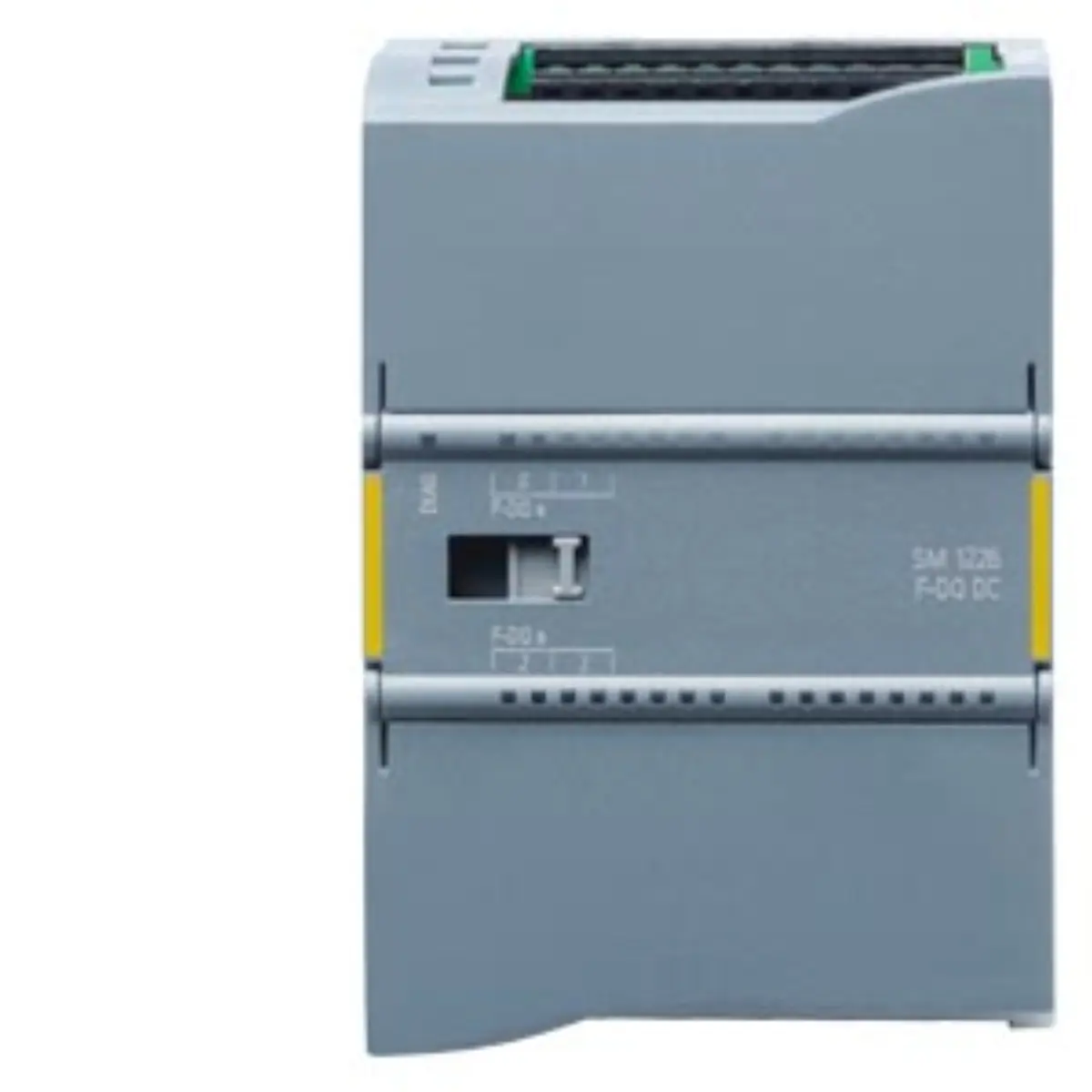

• Visual inspection of product images should focus on the clarity of the type plate labeling for accurate part number verification.
• Check for visible signs of the conformal coating on internal components if disassembly images are provided for quality assurance purposes.
• Compare the physical connector layout in images with technical diagrams to ensure proper wiring alignment during installation procedures.
• Review image resolution to confirm legibility of safety ratings and certification marks printed directly on the module housing surface.

• Gather all relevant project documents specifying safety integrity levels to verify that PL e and SIL3 classifications meet your system needs.
• Prepare detailed environmental data including expected temperature extremes and exposure to contaminants to validate the suitability of the SIPLUS coating.
• Compile wiring diagrams showing DC 24V load requirements to ensure the 2A per channel capacity is sufficient for your actuators.
• Document any specific PROFIsafe configuration parameters required for your safety PLC to facilitate seamless integration and communication setup.

• Ensure that the inquiry includes all necessary technical specifications to allow for a comprehensive evaluation of the product fit.
• Cross-reference the active product lifecycle status with your long-term maintenance and support requirements for the automation system.
• Verify that the review restriction class B is understood, requiring direct contact with designated Siemens review contacts for further assistance.
• Confirm that all dimensional and electrical constraints are documented accurately to prevent integration issues during the implementation phase.
