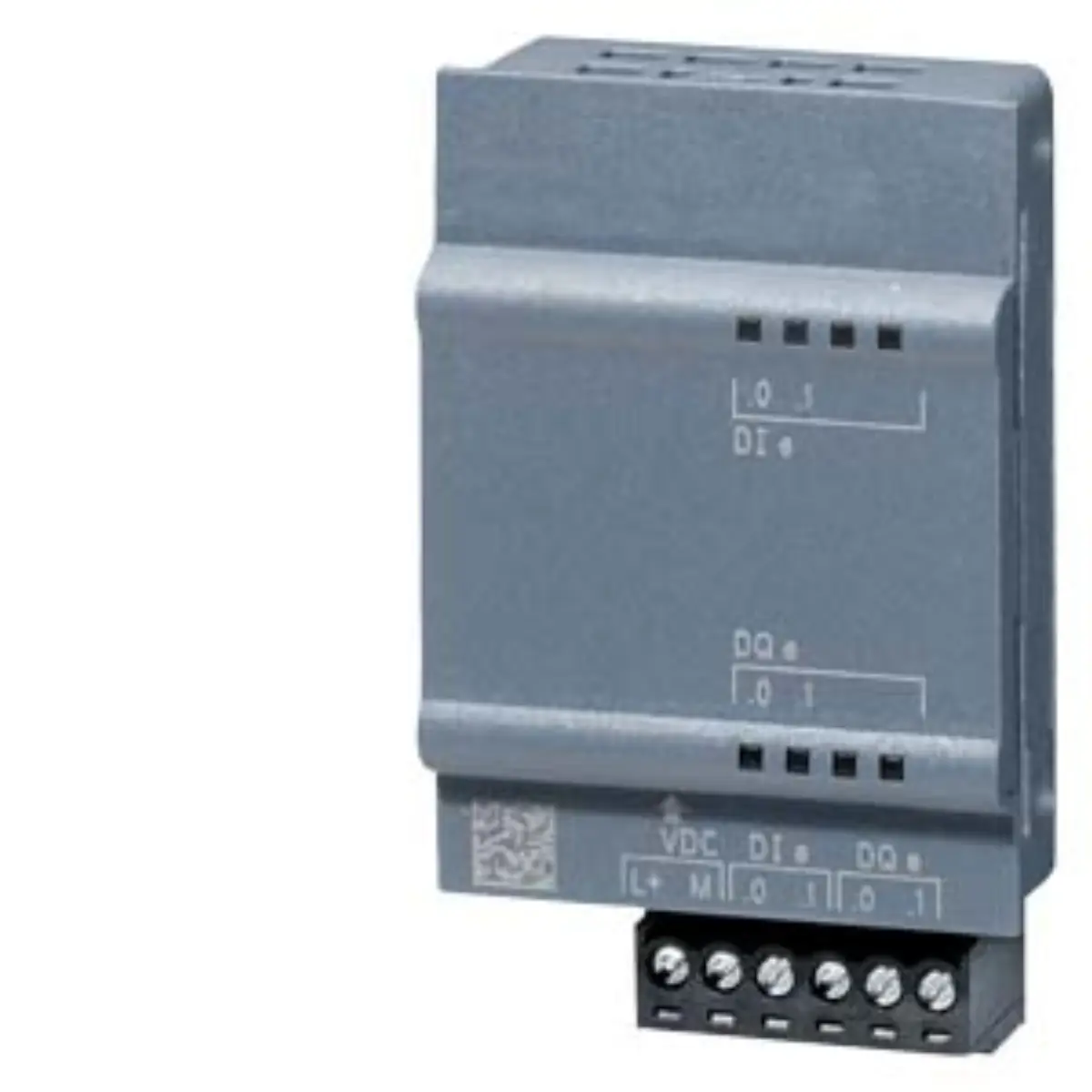

Inquiry for Siemens 6AG1223-3AD30-5XB0 SIPLUS Digital I/O Module

Part number

6AG1223-3AD30-5XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

8.00 x 5.00 x 2.8 cm

Net weight

0.031 Kg

Source category

SIPLUS SB 1223 digital input/output modules

• Digital configuration includes two digital inputs and two digital outputs for precise control and monitoring tasks.
• Operating voltage is specified at 5 V DC, providing stable power for connected digital signal processing components.
• Signal frequency capability reaches up to 200 kHz, allowing for high-speed data acquisition and transmission.
• Conformal coating is applied to the circuit board to shield internal electronics from dust, humidity, and chemicals.
• Extended operating temperature range spans from -40 degrees Celsius to +60 degrees Celsius for global deployment.
• Minimum startup temperature is recorded at -25 degrees Celsius, enabling functionality in initially frozen environments.

• Base hardware originates from the 6ES7223-3AD30-0XB0 model, adapted for industrial severity with additional protective layers.
• Brand designation is clearly marked as Siemens, indicating the manufacturer of this automation technology component.
• Product classification falls under SIPLUS digital modules, specifically within the SB 1223 series for S7-1200 systems.
• Lifecycle status is listed as Active Product, confirming current manufacturing support and documentation review details for reference.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as 8.00 cm in width, 5.00 cm in height, and 2.8 cm in depth.
• Net weight is documented at 0.031 Kg, reflecting the compact and lightweight design of the module housing.
• Category path indicates placement within Automation technology, specifically under SIPLUS digital modules and SB 1223 series.
• review note class is noted as B, requiring direct contact with a Siemens review contacts for any review procedures.
• Input/output count remains fixed at two digital inputs and two digital outputs for standard interface applications.

• Visual inspection should confirm the presence of conformal coating on the visible circuit board surfaces.
• Labeling must display the full part number 6AG1223-3AD30-5XB0 clearly for accurate model identification purposes.
• Connector pins should appear intact and free from corrosion, ensuring reliable electrical connection during installation.
• Housing structure must show no physical damage, maintaining the integrity required for harsh environment operation.

• Verify that the project environment requires operation below -25 degrees Celsius to utilize the startup specification.
• Confirm that 5 V DC power supply is recorded and stable for the module's electrical requirements.
• Check if the 200 kHz frequency limit meets the speed requirements of your specific digital signals.
• Ensure that the review restricted class B policy aligns with your organization's inquiry preparation and logistics rules.

• Cross-reference the base model 6ES7223-3AD30-0XB0 to understand the underlying hardware architecture and capabilities.
• Review the extended temperature ratings to ensure suitability for your specific geographic and operational climate zones.
• Consider the conformal coating benefits when evaluating long-term durability in dusty or humid industrial settings.
• Note the review note restriction to plan accordingly for any potential exchanges or maintenance procedures needed.
