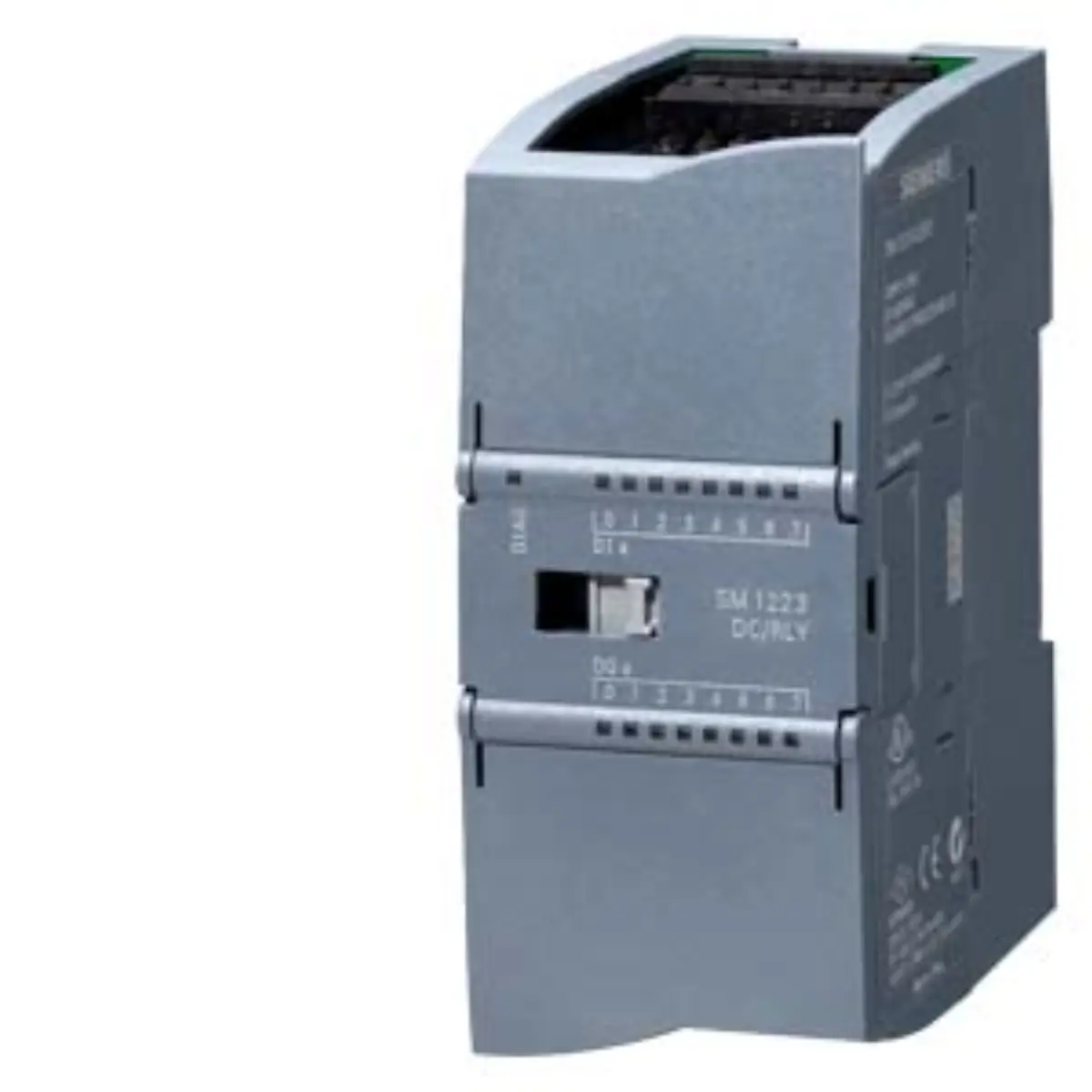

Inquiry: Siemens 6AG1223-1QH32-2XB0 Digital Input/Output Module

Part number

6AG1223-1QH32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.7 x 8.7 x 5.5 cm

Net weight

0.227 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• The module operates within an extended temperature range of -40 to +70 degrees Celsius for continuous performance.
• Startup conditions are supported down to -25 degrees Celsius, allowing for cold environment initialization procedures.
• Digital inputs accept AC voltage signals at standard levels of 120 V or 230 V for connectivity.
• Relay outputs provide switching capability with a rated current capacity of 2 A per channel for loads.
• Conformal coating is applied to the circuit board to protect against moisture, dust, and corrosive agents.
• The physical dimensions measure 10.7 by 8.7 by 5.5 cm with a net weight of 0.227 kg.

• Identify this unit as part of the SIPLUS digital modules family within the broader automation technology scope.
• The base model reference is 6ES7223-1QH32-0XB0, modified specifically for extreme environmental conditions and durability.
• Check the label for the full part number 6AG1223-1QH32-2XB0 to ensure correct product classification in records.
• Verify the lifecycle status is listed as Active Product to confirm ongoing technical support and documentation access.
