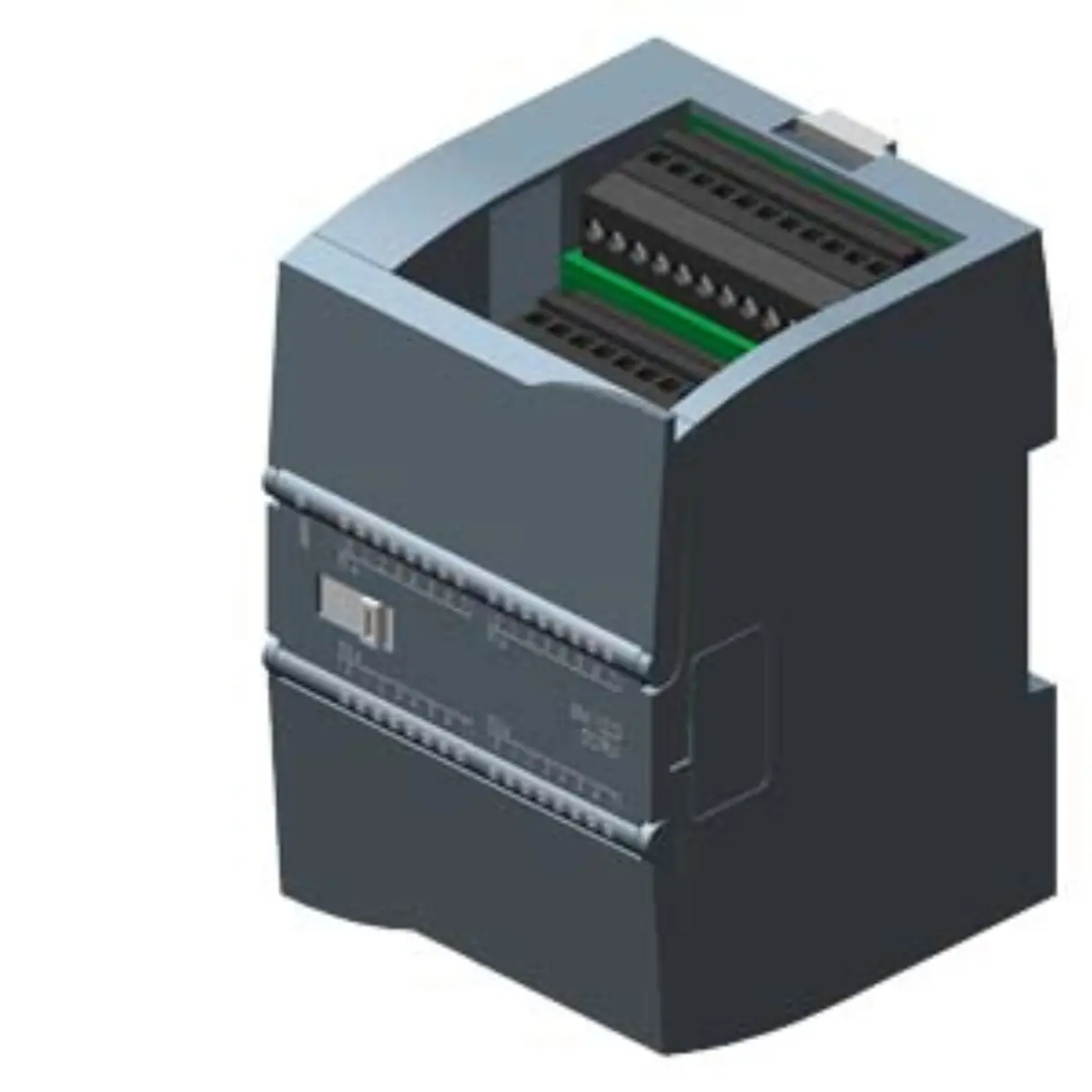

6AG1223-1PL32-2XB0 Siemens SIPLUS Digital Input/Output Module

Part number

6AG1223-1PL32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.3 x 8.8 cm

Net weight

0.325 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• The module provides sixteen digital inputs operating at 24 V DC with sink/source capability. Keep dimensions 10.5 x 8.3 x 8.8 cm and net weight 0.325 Kg unchanged while comparing project documents and product image evidence.
• It offers sixteen digital outputs utilizing relay technology rated for two amperes per channel.
• Operating temperature range spans from negative forty degrees Celsius to positive seventy degrees Celsius.
• Startup functionality remains reliable down to negative twenty-five degrees Celsius for cold environments.
• Physical dimensions measure ten point five by eight point three by eight point eight centimeters.
• Net weight is recorded at zero point three two five kilograms for structural planning purposes.

• Identify the part number 6AG1223-1PL32-2XB0 as the primary SIPLUS digital module identifier. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1223 digital input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Recognize the brand association with Siemens automation technology for component verification and sourcing.
• Note the lifecycle status as an active product ensuring continued support and documentation access.
• Verify the category classification under I/O modules for correct navigation within technical databases.
