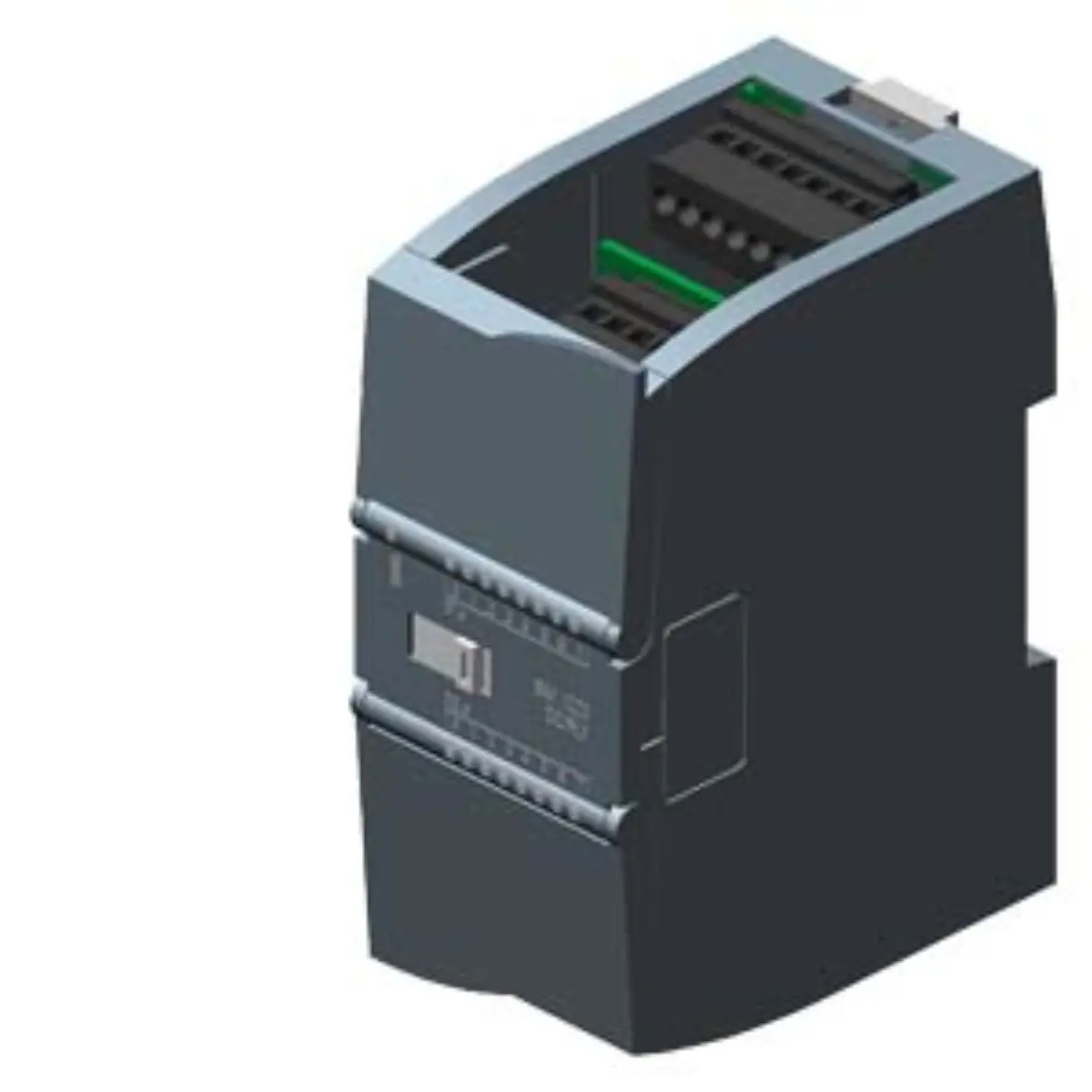

Siemens 6AG1223-1PH32-2XB0 Digital Input/Output Module

Part number

6AG1223-1PH32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 9.00 x 5.9 cm

Net weight

0.222 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• Digital input count is recorded as eight channels operating at 24 V DC voltage levels. Keep dimensions 10.5 x 9.00 x 5.9 cm and net weight 0.222 Kg unchanged while comparing project documents and product image evidence.
• Sink or source configuration options are listed for the digital input circuitry design.
• Eight digital output channels utilize relay switching mechanisms rated for two ampere loads.
• Operating temperature range spans from minus forty degrees Celsius to plus seventy degrees Celsius.
• Startup capability is documented down to minus twenty-five degrees Celsius for cold environments.
• Conformal coating protection is applied to the internal components for environmental resistance.

• The part number 6AG1223-1PH32-2XB0 identifies this specific SIPLUS variant of the SM 1223. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1223 digital input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base 6ES7223-1PH32-0XB0 with added environmental protections.
• Lifecycle status is currently listed as an active product within the manufacturer catalog.
• Category classification places this item under automation technology and SIPLUS digital modules.

Parameters are factual source fields retained for model review.

• Physical dimensions are recorded as ten point five by nine point zero by five point nine centimeters. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1223-1PH32-2XB0 record before publication.
• Net weight specification is listed as zero point two two two kilograms for shipping reference.
• Input voltage parameters align with standard 24 V DC industrial control system requirements.
• Output relay contacts support switching loads up to two amperes per channel consistently.
• Environmental rating includes conformal coating to withstand humidity and corrosive industrial atmospheres.

• Product imagery typically displays the front terminal blocks for input and output connections. Review Siemens 6AG1223-1PH32-2XB0 as I/O Modules with source category SIPLUS SM 1223 digital input/output modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling on the module face clearly shows the full Siemens part number identifier.
• Side views may illustrate the DIN rail mounting clip mechanism for installation.
• Internal component photos often highlight the conformal coating application on the circuit board.

• Verify the required number of digital inputs and relay outputs for your project needs.
• Confirm the ambient temperature conditions match the specified minus forty to plus seventy range.
• Check if the 24 V DC input voltage aligns with your existing sensor infrastructure.
• Review the physical space constraints against the recorded dimensions for panel integration.

• Ensure all technical parameters match your specific operational requirements before submission.
• Cross-reference the part number with your current system documentation for accuracy.
• Consider the extended temperature range when evaluating suitability for outdoor or harsh sites.
• Submit detailed inquiry information to receive precise technical data and inquiry preparation guidance.
