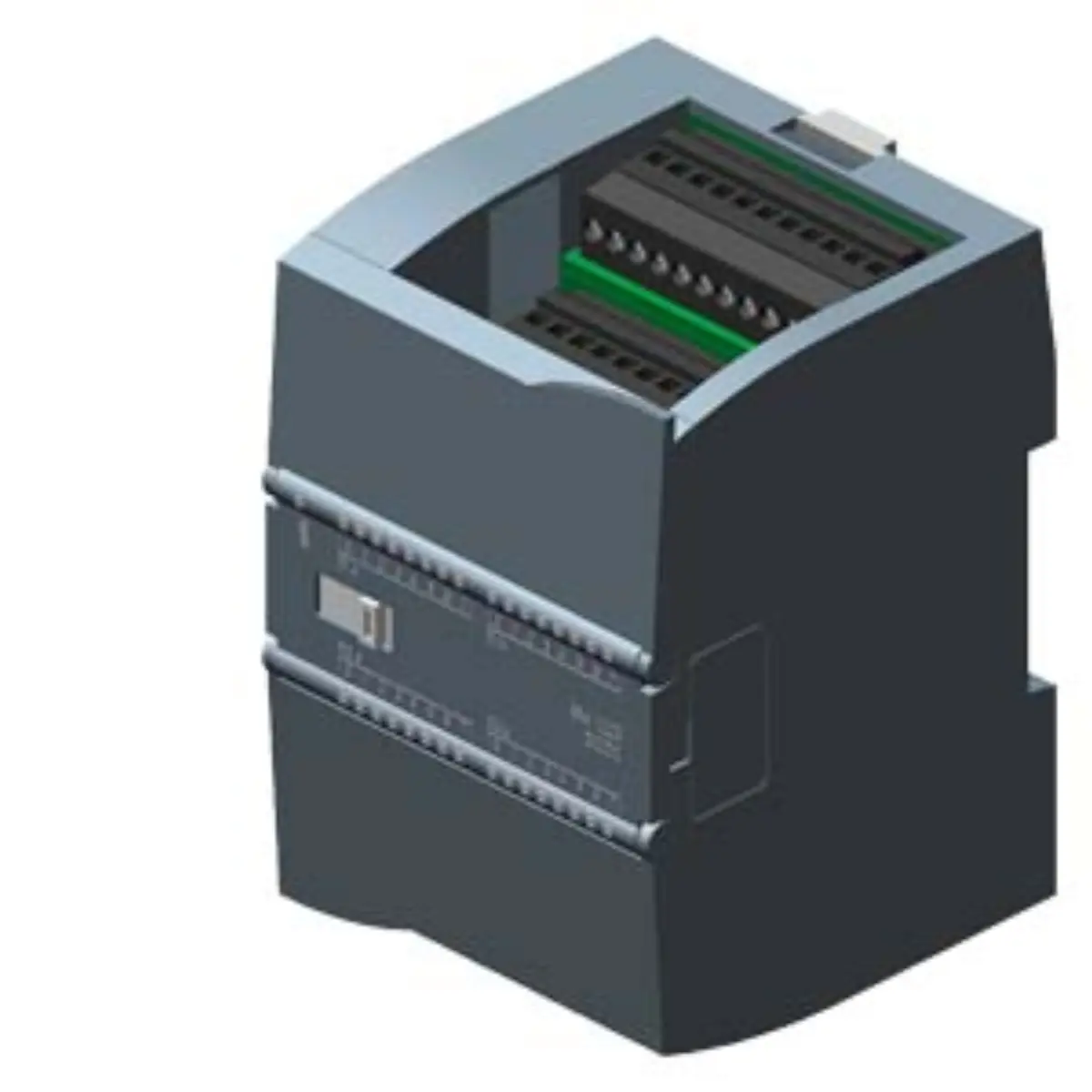

Siemens 6AG1223-1BL32-4XB0 Digital Input/Output Module

Part number

6AG1223-1BL32-4XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.9 x 9.00 x 8.6 cm

Net weight

0.31 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• Digital input section supports 16 channels operating at 24 V DC voltage levels. Keep dimensions 10.9 x 9.00 x 8.6 cm and net weight 0.31 Kg unchanged while comparing project documents and product image evidence.
• Input configuration allows flexible sink or source connection methods for various sensor types.
• Digital output section provides 16 channels using transistor switching technology for load control.
• Each output channel delivers a maximum current capacity of 0.5 A for connected devices.
• Operating temperature range extends from -20 °C to +60 °C for broader application scope.
• Conformal coating protects internal circuitry against moisture, dust, and corrosive industrial atmosphere elements.

• Base model reference links to 6ES7223-1BL32-0XB0 with specific SIPLUS enhancements applied. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1223 digital input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• Product classification identifies this as a SIPLUS digital module within the automation portfolio.
• Lifecycle status indicates the product remains active and supported for new project designs.
• Brand designation confirms Siemens manufacturing origin for quality assurance and technical documentation access.

Parameters are factual source fields retained for model review.

• Physical dimensions recorded as 10.9 cm width by 9.00 cm height by 8.6 cm depth. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1223-1BL32-4XB0 record before publication.
• Net weight specification lists 0.31 Kg for packaging and logistics planning purposes.
• Category placement falls under I/O Modules within the broader automation technology structure.
• Source path traces through SIPLUS SM 1223 digital input/output modules hierarchy.
• Electrical ratings align with standard S7-1200 series requirements for consistent system integration.

• Product labeling clearly displays the full part number for visual verification during inspection. Review Siemens 6AG1223-1BL32-4XB0 as I/O Modules with source category SIPLUS SM 1223 digital input/output modules, recorded lifecycle Active Product, and submitted model identity.
• Connector terminals show standard screw-type connections for secure wiring installation procedures.
• Status LEDs indicate operational state for inputs and outputs during active monitoring phases.
• Module housing exhibits robust plastic construction listed for DIN rail mounting applications.

• Verify required input voltage levels match the 24 V DC specification for sensors.
• Confirm load current requirements stay within the 0.5 A limit per output channel.
• Assess environmental conditions to ensure temperatures remain within the -20 to +60 range.
• Check space constraints against the 10.9 x 9.00 x 8.6 cm physical footprint.

• Technical data reflects manufacturer specifications for accurate engineering documentation and planning purposes.
• All parameters should be cross-referenced with documented Siemens documentation before final project approval.
• Environmental ratings support deployment in challenging industrial settings requiring extended temperature tolerance.
• Inquiry submission enables detailed discussion of specific project requirements and technical constraints.
