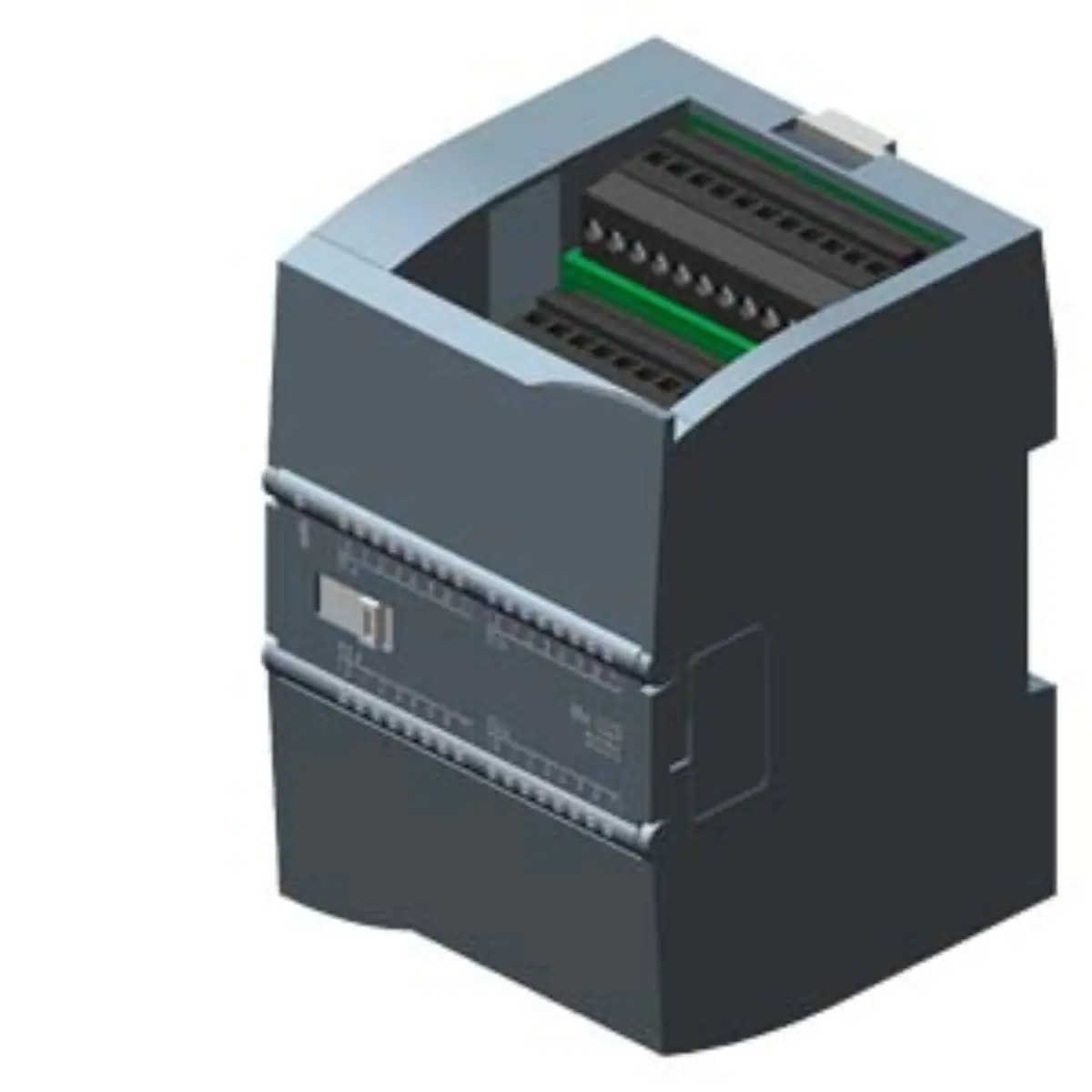

6AG1223-1BL32-2XB0 SIPLUS Digital Input/Output Module

Part number

6AG1223-1BL32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

109.00 x 9.00 x 8.6 cm

Net weight

0.31 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• Digital inputs operate at 24 V DC with sink or source configuration options for flexibility. Keep dimensions 109.00 x 9.00 x 8.6 cm and net weight 0.31 Kg unchanged while comparing project documents and product image evidence.
• Sixteen digital outputs utilize transistor technology capable of handling loads up to 0.5 A each.
• Operating temperature range spans from -40 °C to +70 °C for continuous performance.
• Startup functionality remains effective down to -25 °C, ensuring reliable initialization in cold.
• Physical dimensions measure approximately 109.00 x 9.00 x 8.6 cm for panel mounting.
• Net weight is recorded at 0.31 Kg, facilitating easy integration into control cabinets.

• Part number 6AG1223-1BL32-2XB0 identifies the specific SIPLUS variant of the SM 1223. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1223 digital input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base part 6ES7223-1BL32-0XB0 with added environmental protections.
• Lifecycle status is listed as Active Product, indicating current manufacturing and support review details.
• Category classification places it firmly within the broader scope of Automation technology solutions.

Parameters are factual source fields retained for model review.

• Input channel count is fixed at sixteen digital points for standard monitoring tasks. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1223-1BL32-2XB0 record before publication.
• Output channel count matches inputs with sixteen digital points for actuator control applications.
• Voltage specification for inputs is standardized at 24 V DC for common industrial sensors.
• Output switching mechanism relies on transistor technology for fast response and low maintenance.
• Environmental rating includes conformal coating to protect internal circuitry from corrosive elements.

• Visual inspection should confirm the presence of labeling indicating the full part number. Review Siemens 6AG1223-1BL32-2XB0 as I/O Modules with source category SIPLUS SM 1223 digital input/output modules, recorded lifecycle Active Product, and submitted model identity.
• Check for physical integrity of the housing to ensure no damage during transport.
• Verify terminal block connections are secure and free from visible corrosion or wear.
• Ensure the conformal coating appears uniform without cracks or peeling on the surface.

• Gather project documentation specifying required input voltage and output load characteristics for verification.
• Confirm environmental conditions such as maximum ambient temperature and potential chemical exposures.
• Review existing S7-1200 system architecture to ensure slot application context and power supply needs.
• Prepare technical questions regarding mounting orientation and cable management for the installation site.

• Cross-reference the part number with documented Siemens documentation for detailed pinout configurations.
• Validate that the selected module meets the specific signal type requirements of your sensors.
• Consider thermal management strategies given the wide operating temperature range specifications.
• Document all technical parameters for internal engineering review before submitting the inquiry form.
