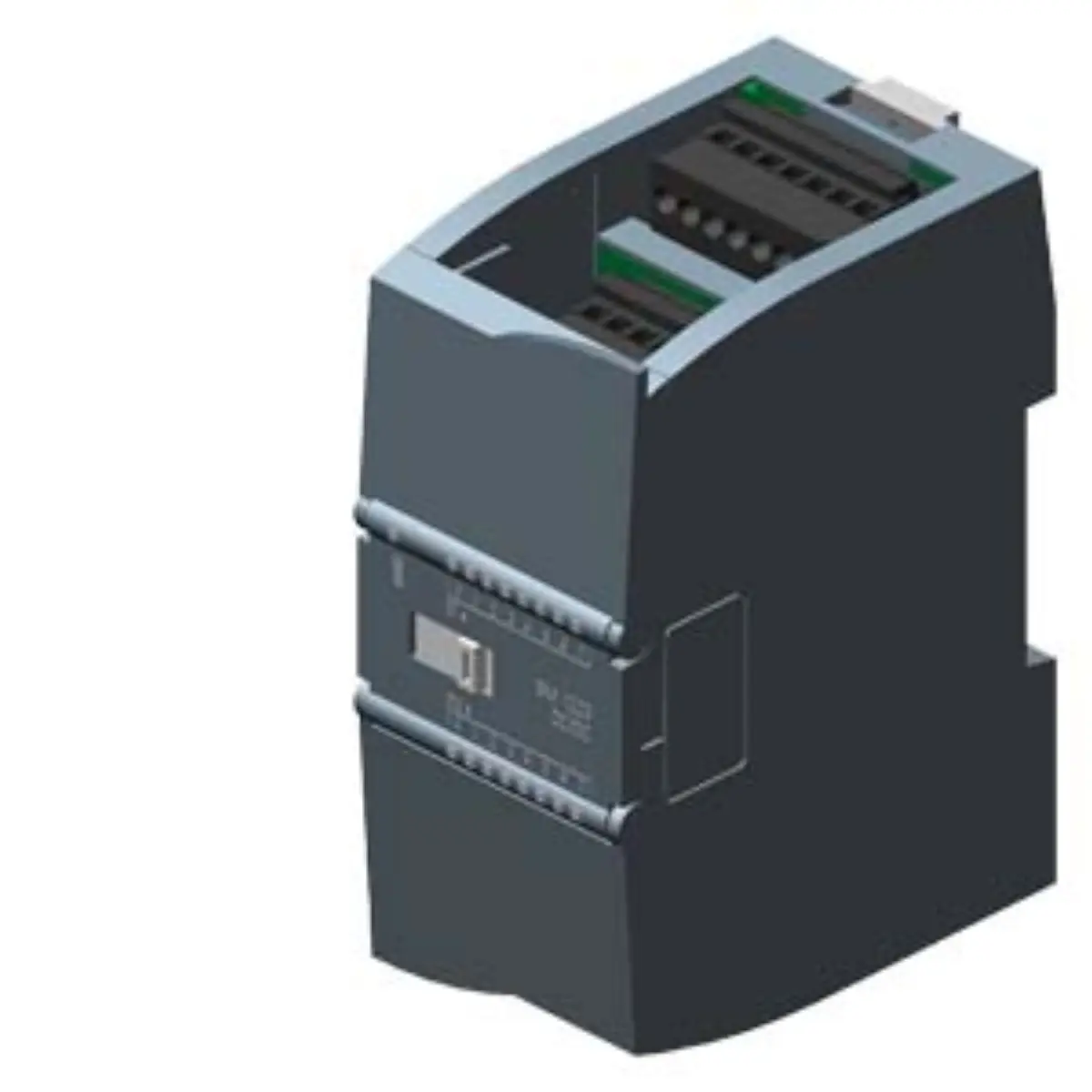

Inquiry: Siemens 6AG1223-1BH32-2XB0 Digital Input/Output Module

Part number

6AG1223-1BH32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.5 x 8.7 x 5.7 cm

Net weight

0.203 Kg

Source category

SIPLUS SM 1223 digital input/output modules

• The module provides eight digital inputs operating at 24 V DC with sink/source capability. Keep dimensions 10.5 x 8.7 x 5.7 cm and net weight 0.203 Kg unchanged while comparing project documents and product image evidence.
• It includes eight digital outputs utilizing transistor technology rated for 0.5 A per channel.
• Extended temperature operation is supported from -40°C to +70°C for continuous performance.
• Startup functionality is maintained at temperatures as low as -25°C during initial phases.
• Conformal coating is applied to protect internal circuitry from moisture, dust, and corrosive agents.
• The physical dimensions measure 10.5 x 8.7 x 5.7 cm with a net weight of 0.203 Kg.

• The part number 6AG1223-1BH32-2XB0 identifies this specific variant within the SIPLUS digital series. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1223 digital input/output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is derived from the base 6ES7223-1BH32-0XB0 with added environmental enhancements.
• The SIPLUS designation indicates suitability for extreme ambient conditions beyond standard industrial ranges.
• Classification as an Active Product confirms current manufacturing status and technical support review details.

Parameters are factual source fields retained for model review.

• Digital input channels are configured for 24 V DC signaling with flexible sink/source logic. Check product-owned images, label text, connector area, and submitted model references against the exact 6AG1223-1BH32-2XB0 record before publication.
• Output channels utilize transistor switching mechanisms capable of handling loads up to 0.5 A.
• Operating temperature range spans from -40°C minimum to +70°C maximum for continuous duty.
• Startup temperature threshold is recorded at -25°C allowing initialization in cold environments.
• Physical specifications include compact form factor weighing 0.203 Kg for easy integration tasks.

• Visual inspection should confirm the presence of conformal coating on the module surface. Review Siemens 6AG1223-1BH32-2XB0 as I/O Modules with source category SIPLUS SM 1223 digital input/output modules, recorded lifecycle Active Product, and submitted model identity.
• Labeling must clearly display the full part number 6AG1223-1BH32-2XB0 for verification purposes.
• Connector pins and terminal blocks should appear intact without visible signs of corrosion.
• Overall housing condition reflects the rugged design intended for harsh industrial deployment scenarios.

• Prepare project documentation specifying required digital input and output channel configurations for review.
• Document environmental conditions including expected temperature ranges to ensure module suitability assessment.
• Verify electrical parameters such as voltage levels and load currents against module specifications.
• Include installation constraints and spatial limitations to assist in evaluating physical fitment needs.

• Confirm that all technical parameters align with specific project requirements before submission.
• Review the class B classification notes regarding review restrictions and contact procedures.
• Ensure that environmental ratings match the actual operating conditions of the target site.
• Cross-reference the base model 6ES7223-1BH32-0XB0 for additional standard feature comparisons.
