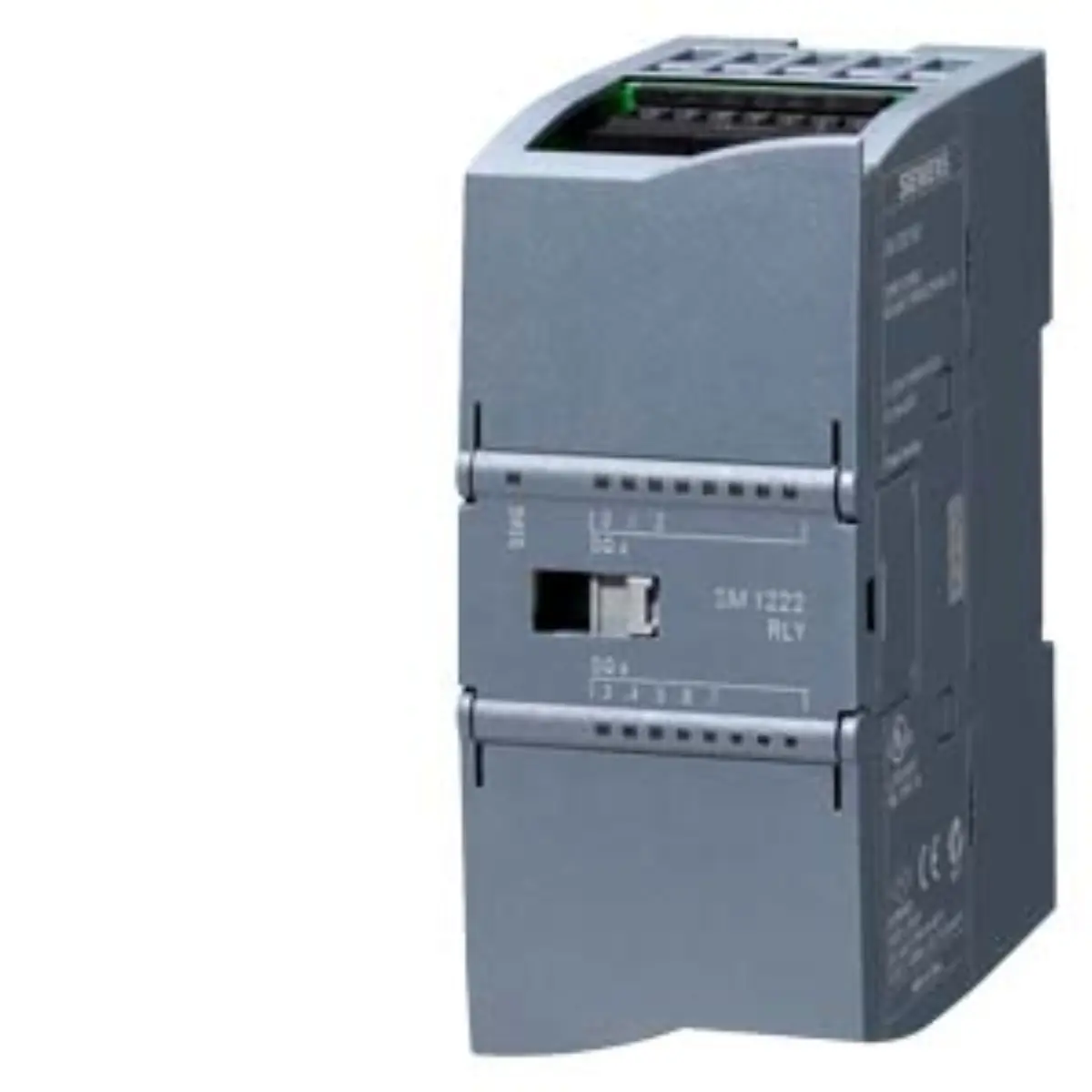

6AG1222-1XF32-4XB0 Siemens SIPLUS Digital Output Module

Part number

6AG1222-1XF32-4XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.9 x 8.8 x 5.6 cm

Net weight

0.372 Kg

Source category

SIPLUS SM 1222 digital output modules

• The device belongs to the SIPLUS digital modules family, specifically the SM 1222 series for S7-1200 controllers.
• It utilizes relay changeover contacts to handle various load types with high isolation capabilities between circuits.
• Conformal coating is applied to the printed circuit board to resist moisture, dust, and corrosive gases effectively.
• The operational temperature range extends from -20°C to +60°C, allowing use in demanding industrial settings.
• Physical dimensions are recorded as 10.9 cm by 8.8 cm by 5.6 cm for compact panel mounting.
• Net weight is listed at 0.372 kg, facilitating easy handling and installation within control cabinet structures.

• The part number 6AG1222-1XF32-4XB0 identifies this specific variant within the Siemens automation portfolio clearly.
• It is classified as an Active Product, indicating current manufacturing and support status for new projects.
• The product class B designation suggests specific handling procedures may apply during inquiry preparation or review processes.
• This model is a specialized version of the standard SM 1222 with added environmental protection features.
