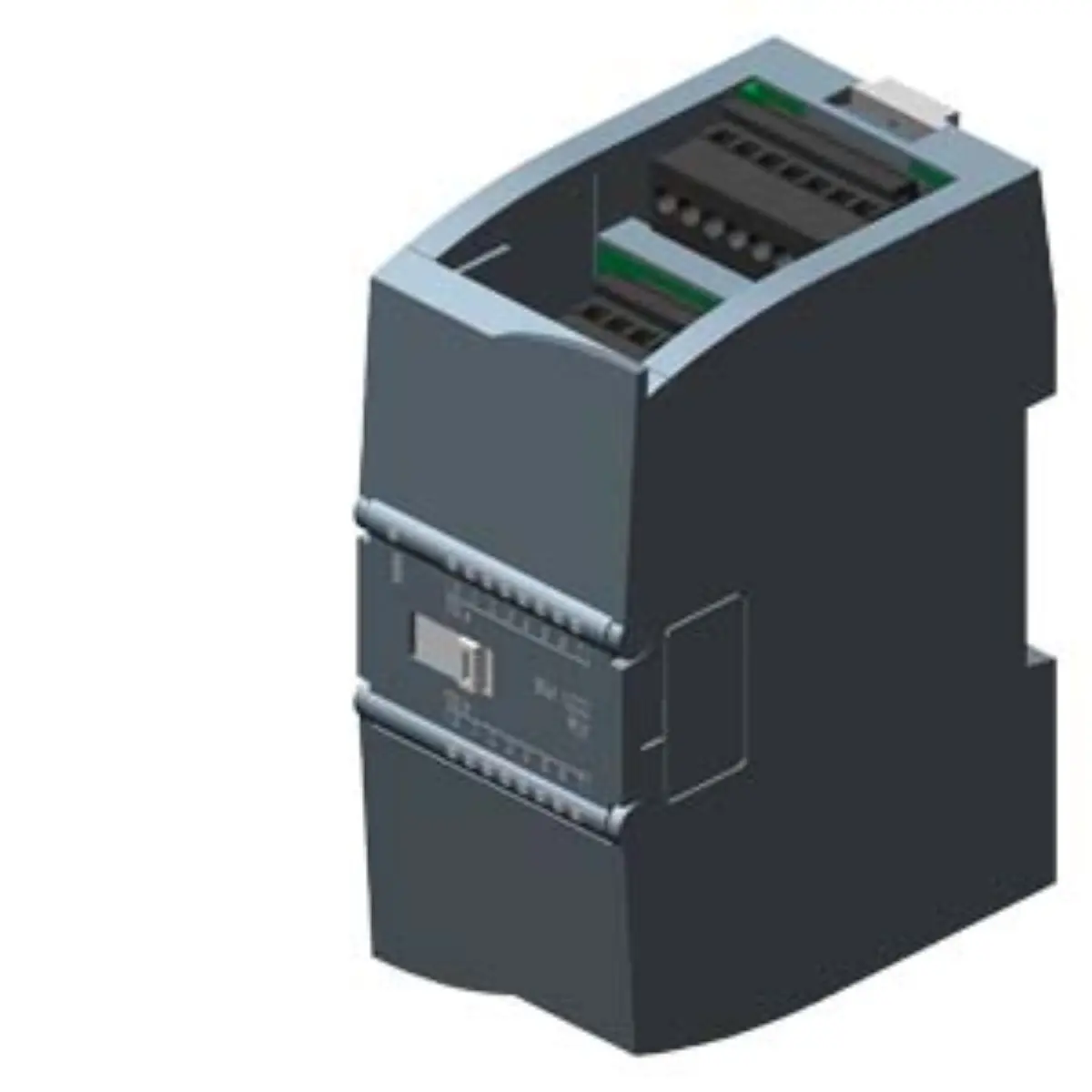

Siemens 6AG1222-1HH32-4XB0 Digital Output Module

Part number

6AG1222-1HH32-4XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

10.8 x 8.8 x 6.00 cm

Net weight

0.248 Kg

Source category

SIPLUS SM 1222 digital output modules

• This module provides sixteen digital outputs utilizing relay technology for switching loads with high isolation capabilities between channels and common terminals.
• Each relay output supports a maximum current capacity of two amperes, allowing for direct connection to various industrial actuators and signaling devices.
• The operating temperature range extends from negative twenty degrees Celsius to positive sixty degrees Celsius, ensuring functionality in extreme climates.
• Conformal coating is applied to the printed circuit board to protect sensitive electronic components from moisture, dust, and corrosive substances.
• The physical dimensions measure ten point eight by eight point eight by six centimeters, facilitating compact installation within standard control cabinets.
• Net weight is recorded at zero point two four eight kilograms, contributing to lightweight design considerations for modular automation architectures.

• The part number 6AG1222-1HH32-4XB0 identifies this specific variant within the Siemens portfolio, distinguishing it from standard S7-1200 modules.
• The prefix SIPLUS indicates that this device meets extended environmental specifications beyond standard industrial automation component ratings.
• Model classification B suggests that review are restricted and direct contact with documented Siemens representatives is required for support.
• The base hardware corresponds to the 6ES7222-1HH32-0XB0 configuration, adapted specifically for enhanced durability and environmental resistance.
