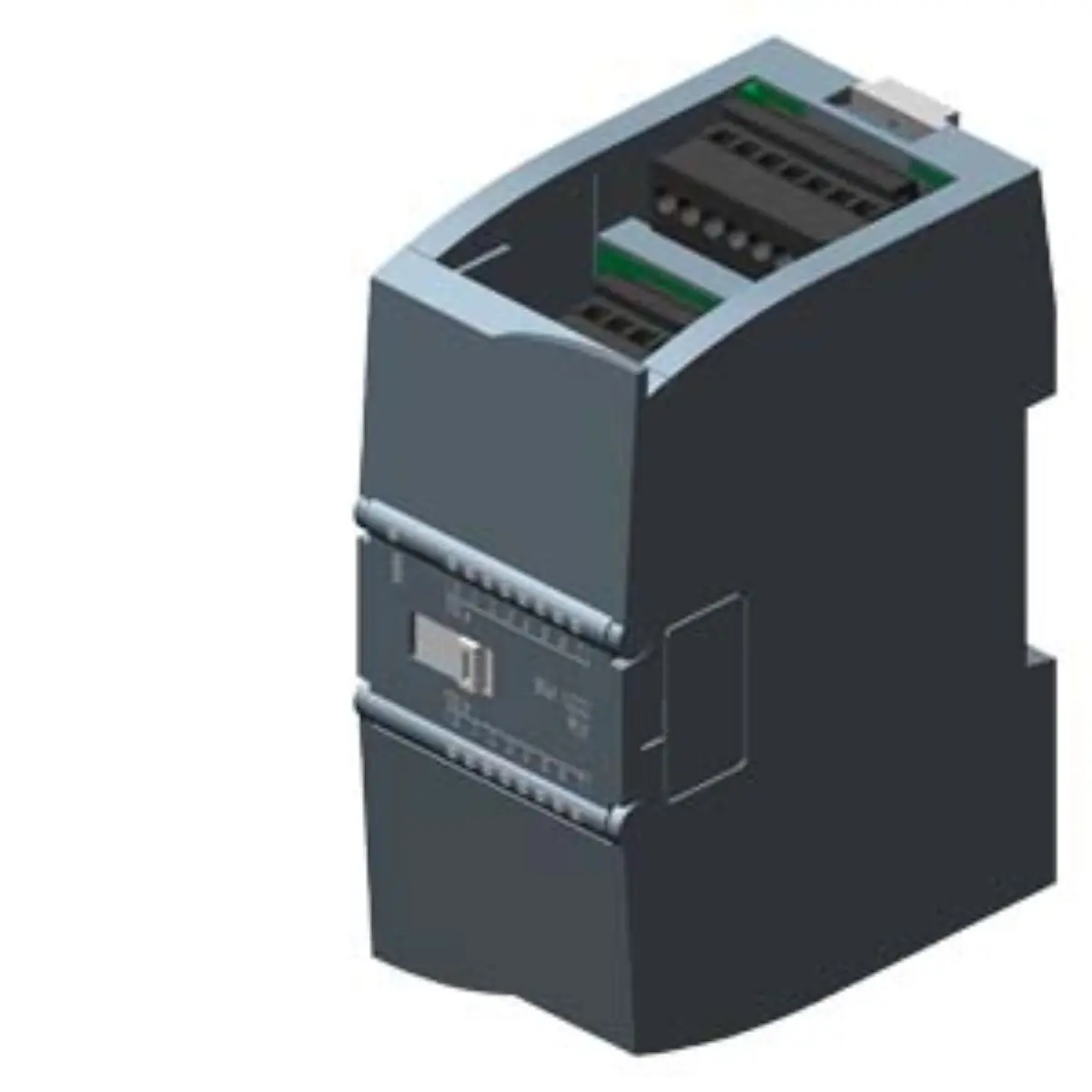

Siemens 6AG1222-1HH32-2XB0 SIPLUS Digital Output Module

Part number

6AG1222-1HH32-2XB0

Brand

Siemens

Category

I/O Modules

Product type

I/O Modules

Lifecycle

Active Product

Dimensions

11.2 x 8.8 x 5.6 cm

Net weight

0.26 Kg

Source category

SIPLUS SM 1222 digital output modules

• The device operates within an extended ambient temperature range of minus forty to plus seventy degrees Celsius. Keep dimensions 11.2 x 8.8 x 5.6 cm and net weight 0.26 Kg unchanged while comparing project documents and product image evidence.
• Startup functionality is supported at temperatures as low as minus twenty-five degrees Celsius for initial activation.
• Physical dimensions are recorded as eleven point two by eight point eight by five point six centimeters.
• The net weight of the module is listed as zero point two six kilograms for handling reference.
• Output configuration consists of sixteen digital outputs implemented through relay switching mechanisms for load control.
• Relay contacts are rated for a maximum current of two amperes to ensure stable signal transmission.

• The part number 6AG1222-1HH32-2XB0 identifies this specific SIPLUS variant within the S7-1200 family structure. Use the source path Automation technology / SIPLUS digital modules / SIPLUS SM 1222 digital output modules to confirm catalog context, model family, parameter review scope, and technical inquiry preparation notes.
• This model is based on the foundational hardware of the 6ES7222-1HH32-0XB0 standard module design.
• The SIPLUS designation indicates enhanced protection features listed for severe industrial process environments globally.
• Conformal coating application is a key identifier distinguishing this unit from standard uncoated electronic modules.
